A070VW08 V2 7.0 AUO LCD Panel

Name: A070VW08 V2 7.0 AUO LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

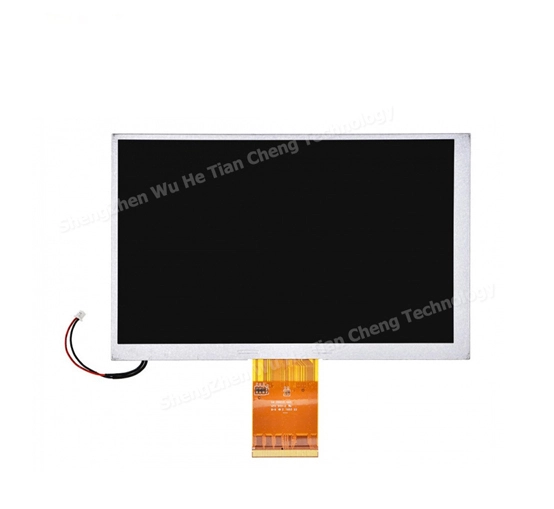

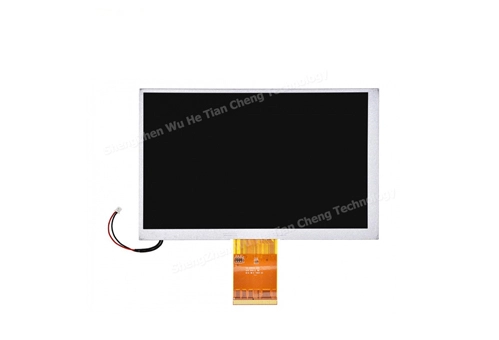

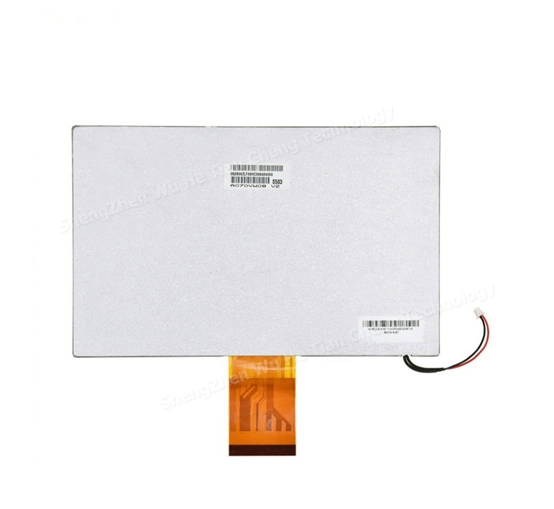

AUO 7 inch tft lcd panel A070VW08 V2 with 800x480 WVGA resolution, brightness 500 cd/m², RGB TTL 60pin. This lcd display's working temperature is -20 ~ +70 (°C) and it's storage temperature is -30 ~ +80 (°C). Based on it's white LED backlight. This model is recommended for industrial use and outdoor highlight.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of A070VW08 V2 7.0 AUO LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
7	800*480	A070VW08 V2	1651045.4	152*91.44	TN	RGB	500	-20~70°C

General Specifications of A070VW08 V2 7.0 AUO LCD Panel

A070VW08 V2

Manufacturer	AUO
Model Name	A070VW08 V2
Screen Size	7 inch
Pixel Number	800×480(RGB), WVGA
Active Area(mm)	152.4(W)×91.44(H)
Outline(mm）	165(W)×104(H)×5.4(D)
Bezel Area(mm)	154.40(H) × 93.44(V)
Treatment	Anti-glare , Hard coating (3H)
Luminance	500 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	65/65/50/60
Response	15/10 (Typ.)(Tr/Td) ms
Work Mode	TN , Normally white , Transmissive
Color Depth	262K/16.2M , 55% NTSC
Backlight	WLED , 10K hours , with LED Driver
Net Weight	160g (Typ.)
Touchscreen	without
Signal Type/interface Type	RGB TTL (1 ch, 8-bit) , 60 pins
Voltage Supply	+3.3 V (Typ./Max.)
Max. Ratings	Storage Temp.: -30 ~ +80 (°C)
Max. Ratings	Operating Temp.: -20 ~ +70 (°C)
Package	AUO original package;
Package	40 pcs/carton
