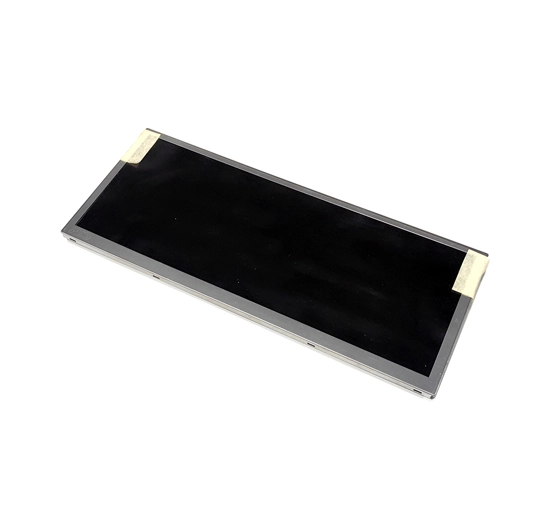

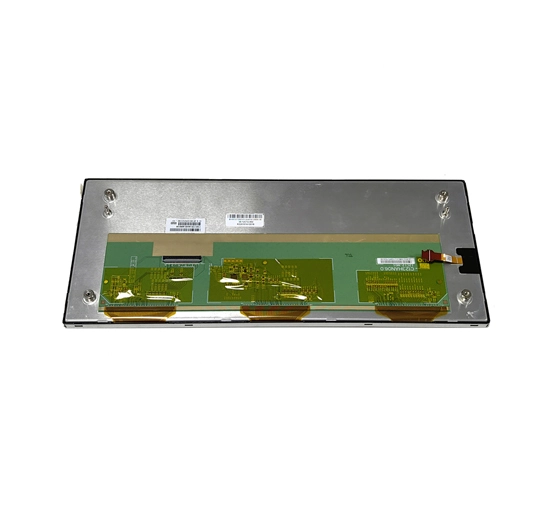

C123HAN06.0 12.3 AUO LCD Panel

Name: C123HAN06.0 12.3 AUO LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

AUO 12.3 inch tft lcd panel C123HAN06.0 with 1920(RGB)x720 resolution, brightness 760 cd/m², LVDS 50pin. This lcd display's working temperature is -30 ~ +85 (°C) and it's storage temperature is -30 ~ +85 (°C). Based on it's white LED backlight. This model is recommended for industrial use, automotive (wide application).

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of C123HAN06.0 12.3 AUO LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
12.3	1920*720	C123HAN06.0	308.79128.8518.5	292.032*109.512	IPS	LVDS	760	-30~85°C

General Specifications of C123HAN06.0 12.3 AUO LCD Panel

Manufacturer	AUO
Model Name	C123HAN06.0
Screen Size	12.3 inch
Pixel Number	1920(RGB)×720
Active Area(mm)	292.032 × 109.512 (H×V)
Outline(mm）	308.79 x 128.85 x 18.5 (Wx Hx D)
Treatment	Hard coating (3H)
Luminance	930 cd/m² (Typ.)
Contrast Ratio	1200 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80
Viewing Angle	Left/Right/UP/Down
Response	15 (Typ.)(Tr+Td) ms
Work Mode	TN , Normally white , Transmissive
Color Depth	262K/16.2M , 98% sRGB
Backlight	WLED , 10K hours , with LED Driver
Net Weight	570g (Typ.)
Touchscreen	without
Signal Type/interface Type	LVDS (2 ch, 8bit) , 70 pins
Voltage Supply	+3.3 V (Typ./Max.)
Max. Ratings	Storage Temp.: -30 ~ +85 (°C)
Max. Ratings	Operating Temp.: -30 ~ +85 (°C)
