MPI3508 3.5 Inch Raspberry Pi LCD

Name: MPI3508 3.5 Inch Raspberry Pi LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

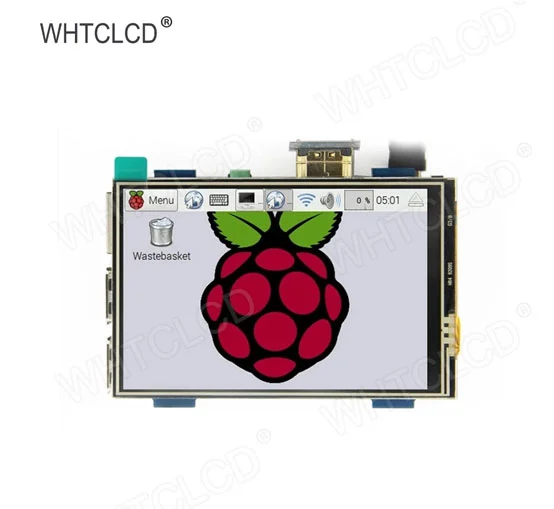

3.5inch standard display, support HDMI input, refresh rate above 60FPS. Physical resolution 480x320, configurable software resolution up to 1920x1080. It is compatible with mainstream mini PC such as Raspberry Pi, BB Black, Banana Pi. It can also be used as a general-purpose HDMI display, connecting computers, TV boxes, Microsoft Xbox360, SONY PS4, Nintendo Switch and so on. Used as a Raspberry Pi display that supports Raspbian, Ubuntu, Kodi, Win10 IOT, single-touch, free drive. Work as a PC monitor, support Win7, Win8, Win10 system (No touch Function). Support HDMI audio output, Backlight brightness can be adjusted. CE, RoHS certification.

Products

Parameters of 3.5 Inch Raspberry Pi LCD

Raspberry Pi HDMI LCD Display
Remark: All Models Support Capacitive or Resistive Touch Panel.
Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
3.5	480*320	MPI3508	TN	HDMI	7560.612	48.96*73.44	Earphone	RTP	Micro USB	-20~60°C

Size	3.5(inch)
SKU	MPI3508
Physical Resolution	480×320(dots)
Software adjustable resolution	480×320~1920×1080(dots)
Touch	Resistance Touch
Power Dissipation	0.20A5V (Brightness @100%) 0.15A5V (Backlight close)

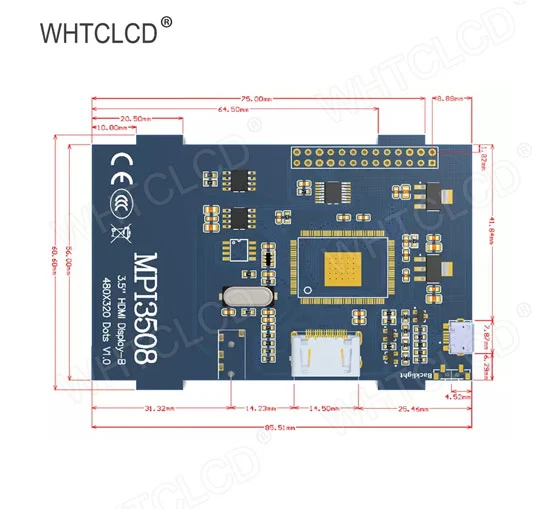

Product Size	85.5*60.6(mm)
Package Size	14313451 (mm)
Rough Weight(Package containing)	142(g)

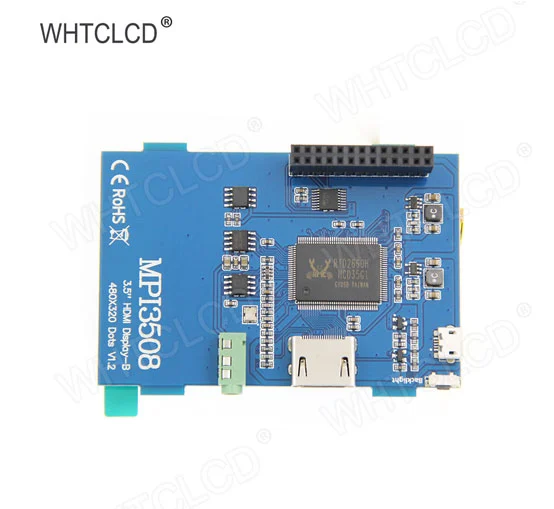

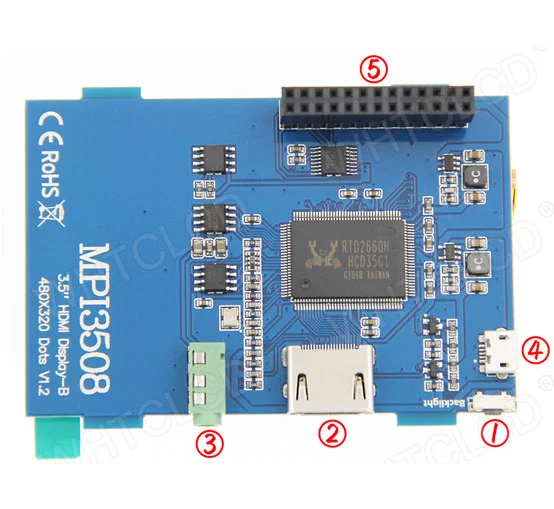

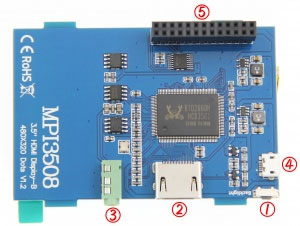

Hardware Description of 3.5 Inch Raspberry Pi LCD

stm32 nucleo 144 board

①Backlight button: backlight brightness adjustment button, short press backlight changes by 10%, long press 3 seconds to close backlight

②HDMI interface: HDMI signal input interface

③Amplifier interface: HDMI audio output interface

④USB power supply interface: provide power for ordinary display (5V 1A)

⑤Transaction raspberry pie 26PIN base: gets power and return touch from this area when used as a raspberry pie monitor

How to use with Raspbian/Ubuntu Mate/ Kali/ Retropie System

Method 1: quick install (raspberry pi needs Internet connection)

Step 1, Install Raspbian official image

1. Download the latest image from the official download.

2. Install the system according to the official tutorial steps.

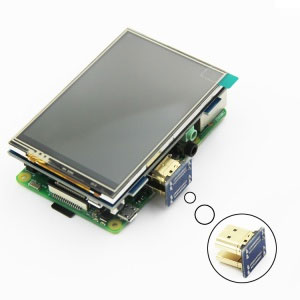

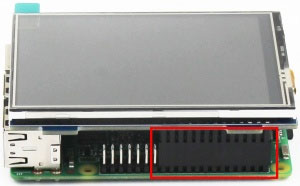

Step 2, insert the SD card into the raspberry pie and connect the hardware as shown in the picture:

stm32 nucleo 32

stm32 nucleo 32 development board

Step 3, Install LCD driver

1) log in the raspberry pie system with Putty connection to the user command line (initial username: PI password: raspberry)

2) execute the following command (Mouse Right-click can paste the code in Putty):

sudo rm -rf LCD-show

git clone https://github.com/goodtft/LCD-show.git

chmod -R 755 LCD-show

cd LCD-show/

sudo ./MPI3508-show

After executing the above command, the system will restart automatically, and display and touch will be OK.

Method 2: offline installation

Step 1, install the official image of Raspbian/Ubuntu

1)Download the latest Raspbian or Ubuntu image from the official website https://www.raspberrypi.org/downloads/

2)Format the TF card with SDFormatter,

3)Use Win32DiskImager to burn the official image to the TF card.

Step 2, modify the "config.txt"

After the step 1 completion of burning in the CD Driver in the folder "show-LCD.tar.gz" copy to TF-card root directory,

Open the config.txt file in TF-card root directory and add the following code to the end of the file. Save and colse TF card:

hdmi_force_hotplug=1

config_hdmi_boost=7

hdmi_drive=2

hdmi_force_hotplug=1

hdmi_group=2

hdmi_mode=87

hdmi_cvt 480 320 60 6 0 0 0

Step 3, insert the SD card into the raspberry pie and connect the hardware

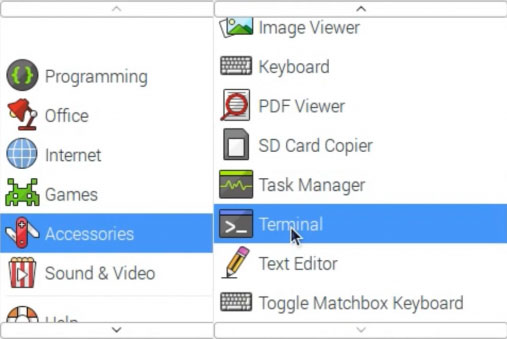

Step 4, power the raspberry, connect the mouse keyboard, and open the terminal terminal terminal on the raspberry pie:

stm32 nucleo 64

Step 5, Enter the following instructions in the terminal terminal:

cd /boot

cp LCD-show.tar.gz ~

cd ~

sudo tar zxvf LCD-show.tar.gz

cd LCD-show/

sudo ./MPI3508-show

How to use as PC monitor

Connect the computer HDMI output signal to the LCD HDMI interface by using the HDMI cable

Connect the LCD's USB Power interface to the USB port of the device

If there are several monitors, please unplug other monitor connectors first, and use LCD as the only monitor for testing.

Note: touch function can only be used for raspberry pi.

How to rotate the display direction

This method only applies to the Raspberry Pi series of display screens, other display screens do not apply.

Method1, If the driver is not installed, execute the following command (Raspberry Pi needs to connected to the Internet):

sudo rm -rf LCD-show

git clone https://github.com/goodtft/LCD-show.git

chmod -R 755 LCD-show

cd LCD-show/

sudo ./XXX-show 90

After execution, the driver will be installed. The system will automatically restart, and the display screen will rotate 90 degrees to display and touch normally.
（ ' XXX-show ' can be changed to the corresponding driver, and ' 90 ' can be changed to 0, 90, 180 and 270, respectively representing rotation angles of 0 degrees, 90 degrees, 180 degrees, 270 degrees）

Method2, If the driver is already installed, execute the following command:

cd LCD-show/

sudo ./rotate.sh 90

After execution, the system will automatically restart, and the display screen will rotate 90 degrees to display and touch normally.
（ ' 90 ' can be changed to 0, 90, 180 and 270, respectively representing rotation angles of 0 degrees, 90 degrees, 180 degrees, 270 degrees）
If the rotate.sh prompt cannot be found, use Method 1 to install the latest drivers
