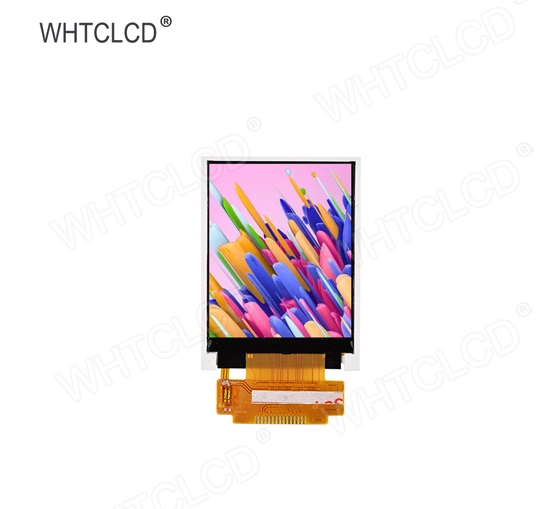

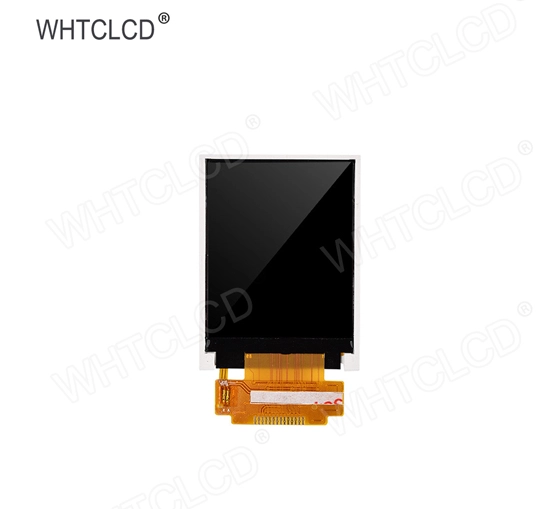

W0177P14S1SN-A02H0 1.77 Inch TN TFT LCD

Name: W0177P14S1SN-A02H0 1.77 Inch TN TFT LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

W0177P14S1SN-A02H0 1.77 Inch TN TFT LCD is a transmissive type color active matrix liquid crystal display which uses amorphous thin film transistor as switching devices. this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 28.03*35.04 and the native resolution is 128*160, Applications: digital watches，wire tester，sphygmomanometer, ECG machine，Handheld devices.

Products

Parameters of 1.77 Inch TN TFT LCD

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Brightness(nits)	OP(℃)
1.77	128*160	W0177P14S1SN-A02H0	34.6046.702.2	28.03*35.04	TN	SPI	300	-20~70°C

General Specifications of 1.77 Inch TN TFT LCD

Feature	Specifications	Unit
Size	1.77	inch
Technology Type	a-si TFT
Resolution	128(RGB)x160
Pixel pitch	0.219 x 0.219	mm
Color Depth	262K
Display Mode	Normally BACK
Driver IC	ST7735S
Surface Treatment	Clear Type
Viewing Direction	12 o’clock
Gray Viewing Direction	6 o’clock
LCM (W x H x D) (mm)	34.6046.702.2	mm
Active Area(mm)	28.03*35.04	mm
With /Without TSP	With RTP
Brightness	300	nits
Weight (g)	12	g
Interface	SPI 4 Wire ; FPC 14pin
Operation Temperature	-10~60	℃
Storage Temperature	-25~65	℃

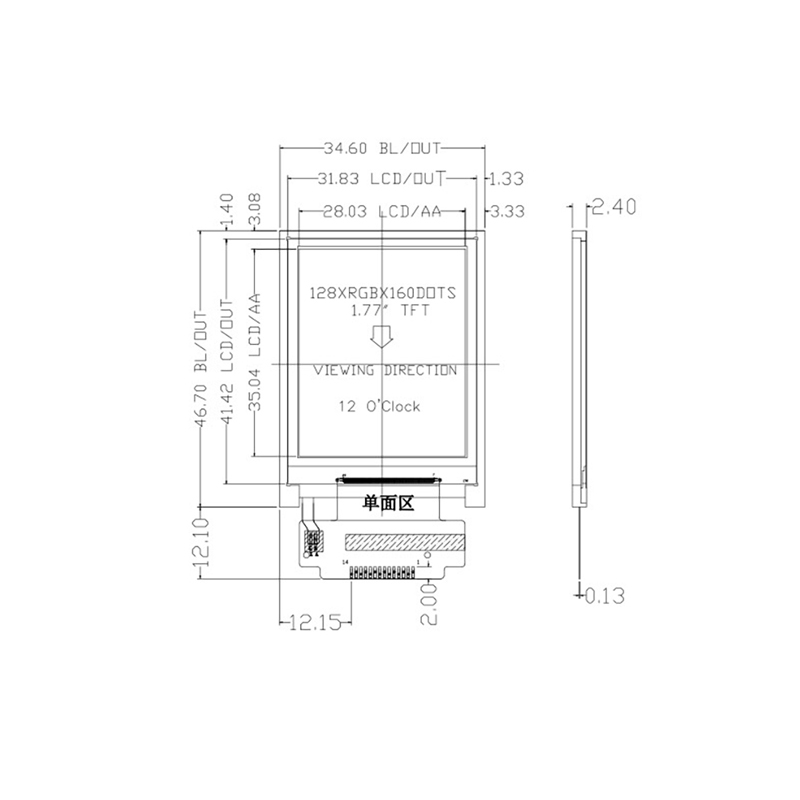

Structural Size of 1.77 Inch TN TFT LCD

1.77 Inch TN TFT LCD
