W035P24S2MN-A02H0 3.5 Inch TN TFT LCD

Name: W035P24S2MN-A02H0 3.5 Inch TN TFT LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

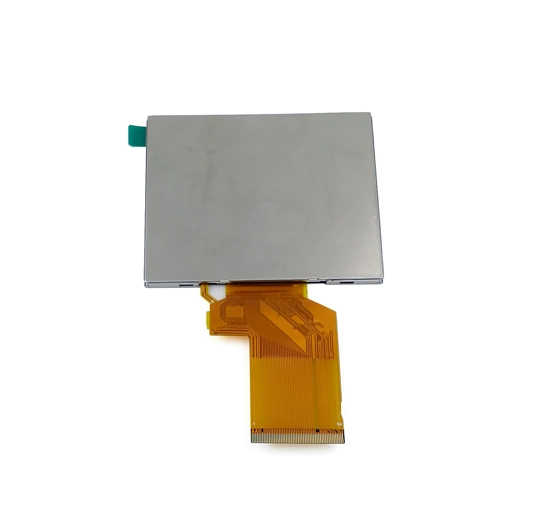

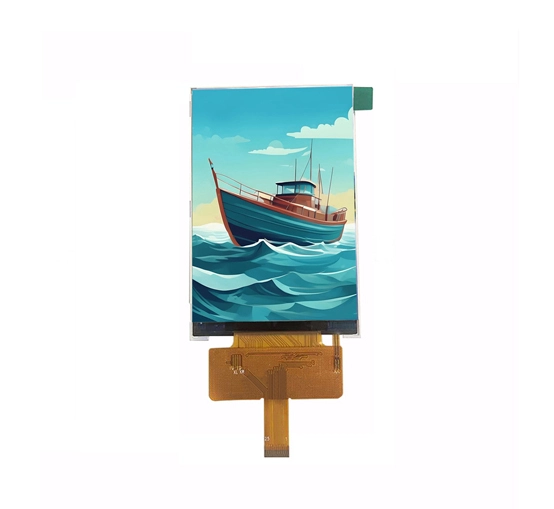

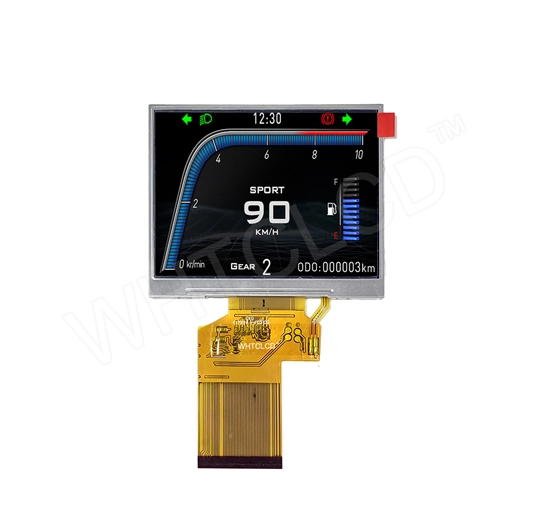

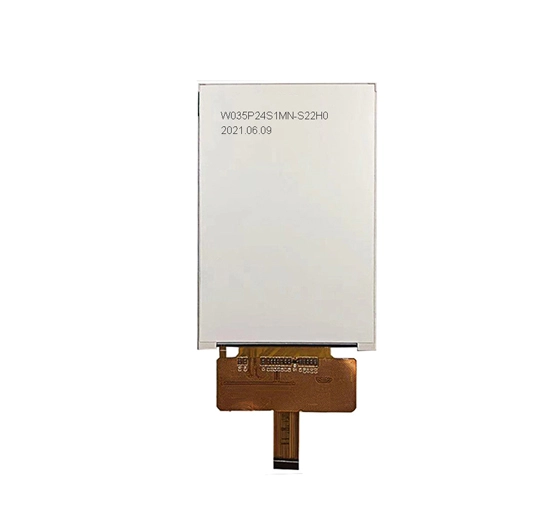

3.5 Inch TN TFT LCD is a transmissive type color active matrix liquid crystal display this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 70.08*52.56 and the native resolution is 320*240, Applications: digital watches，wire tester，sphygmomanometer, ECG machine，Handheld devices.

Products

Parameters of 3.5 Inch TN TFT LCD

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Brightness(nits)	OP(℃)
3.5	320*480	W035P24S2MN-A02H0	54.7683.292.39	48.96*73.44	TN	MIPI	300	-20~70°C

InputOutput Terminals of 3.5 Inch TN TFT LCD

No.	Symbol	Description
1,2	VBL-	Backlight LED Cathode
3,4	VBL+	Backlight LED Anode.
5	YU	Touch panel up side
6	XR	Touch panel right side
7	NC	NC
8	RESET	Reset Signal pin ("Low" is enable)
9	SPENB	Chip select
10	SPCK	Serial Clock.
11	SPDA	Serial Data
12-19	B0~B7	Data bus
20-27	G0~G7	Data bus
28-35	R0~R7	Data bus
36	HSYNC	Line Synchronous Signal
37	VSYNC	Frame Synchronous Signal
38	DOTCLK	Dot-clock signal and oscillator source
39-40	NC	NC
41-42	VDD	Power supply for logic operation
43	YD	Touch panel bottom side
44	XL	Touch panel left side
45-47	NC
48	IF2	Control the input data format/floating
49	IF1	Control the input data format
50	IF0	Control the input data format
51	NC	NC
52	DEN	Display enable signal
53-54	GND	System Ground

General Specifications of 3.5 Inch TN TFT LCD

Feature		Spec
	LCD Size	3.5inch
Characteristics	Display Format	320 (RGB) ×240
	lnterface	24-bit RGB/SERIAL RGB/CCIR656/CCIR601
	Color Depth	16.7M
	Technology type	a-Si
	Display Spec.	0.073 x0.219
	Display Mode	Normally White
	Driver lC	HX8238D
	Surface Treatment	Haze 20%
	Viewing Direction	12 O'clock
	Gray Viewing Direction	6 O'clock
Mechanical	LCM (w xHx D) (mm)	76.9063.93.26
	Active Area(mm)	70.08 ×52.56
	With Without TSP	Without TSP
	Weight (g)	TBD
	LED Numbers	6 LEDS
