MPI7002 7 Raspberry Pi HDMI LCD Display

Name: MPI7002 7 Raspberry Pi HDMI LCD Display
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

7’’ standard display, 1024 × 600 Hardware resolution, Up to 1920x1080 software configuration resolution. Capacitive touch screen, maximum support 5 point touch. Support backlight control alone, the backlight can be turned off to save power. Support Raspberry Pi, BB Black, Banana Pi and other mainstream mini PC. Can be used as general-purpose-use HDMI monitor, for example: connect with a computer HDMI as the sub-display. Used as a raspberry pi display that supports Raspbian, Ubuntu, Kali-Linux, Kodi, win10 IOT, single-touch, free drive. Work as a PC monitor, support win7, win8, win10 system 5 point touch (XP and older version system: single-point touch), free drive. CE, RoHS certification.

Products

Parameters of 7 Raspberry Pi HDMI LCD Display

Raspberry Pi HDMI LCD Display
Remark: All Models Support Capacitive or Resistive Touch Panel.
Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
7	1024*600	MPI7002	IPS	HDMI	164.9124.2715	154.2144*85.92	NC	CTP	0.62A*5V	-20~60°C

SKU	MPI7002
Screen Size	7 inch
LCD Type	IPS
Module Interface	HDMI
Resolution	1024*600 (Pixel)
Active Area	154.2144*85.92 (mm)
Touch Screen Controller	5 point capacitive touch
LCD Driver IC	-
Backlight	LED
power consumption	0.74A*5V
Working temperature（℃）	-20~60
Module PCB Size	164.9*124.27 (mm)
Package Size	21115053 (mm)
Rough Weight(Package containing) (g)	405 (g)

Hardware Description of 7 Raspberry Pi HDMI LCD Display

stm32f030c8t6 development board

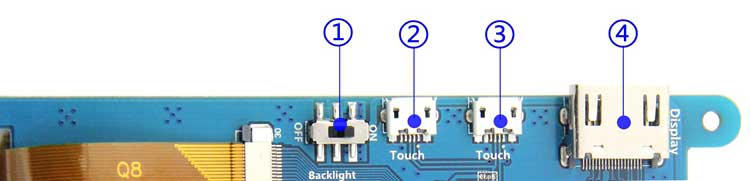

Hardware capabilities

① Backlight Power switch: Controls the backlight turned on and off to save power.

②&③ USB Touch/power supply connector: For power supply and touch output, the functions of the both are the same, can just use one of them.

④ HDMI interface: For connecting motherboard and LCD monitor to HDMI transmission.

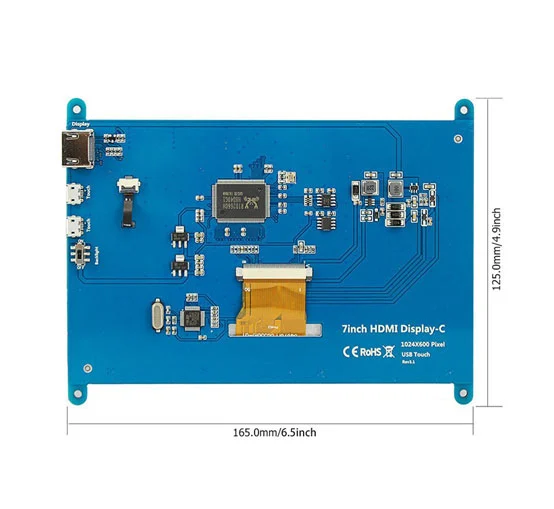

Product Size of 7 Raspberry Pi HDMI LCD Display

stm32f070 nucleo
