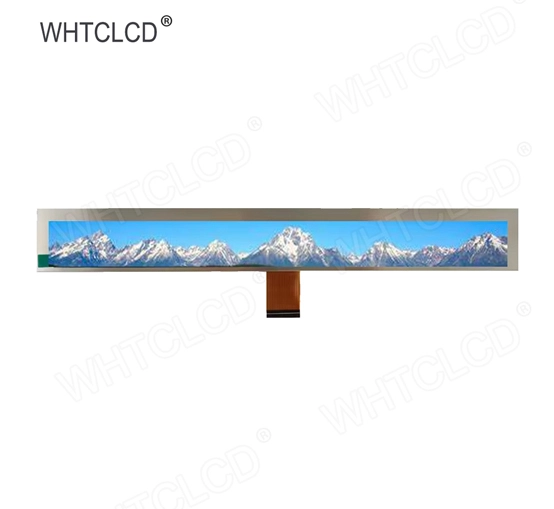

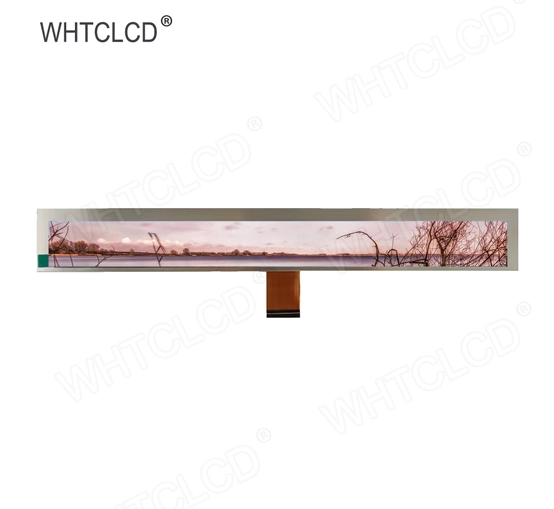

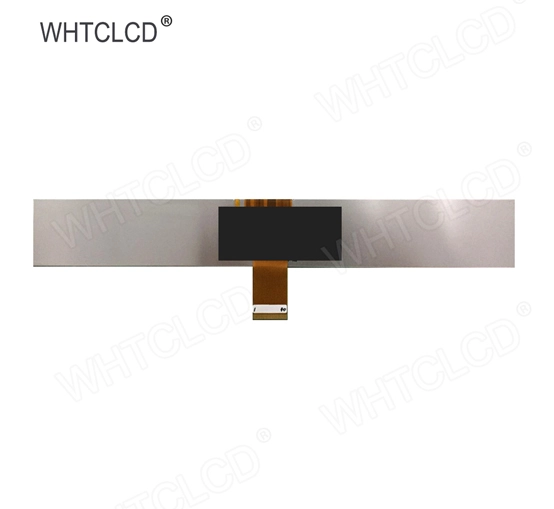

W104P40S1RN-K1B0 10.4 Inch Bar TFT LCD Display

Parameters of 10.4 Inch Bar TFT LCD Display

Size (inch)	Resolution	Model	LCM Dimension (mm)	Active Area (mm)	View	Interface	Brightness (nits)	OP(℃)
10.4	1024*100	W104P40S1RN-K1B0	288.9241.5*6.89	264.19*25.8	TN	RGB	300	-20~70°C

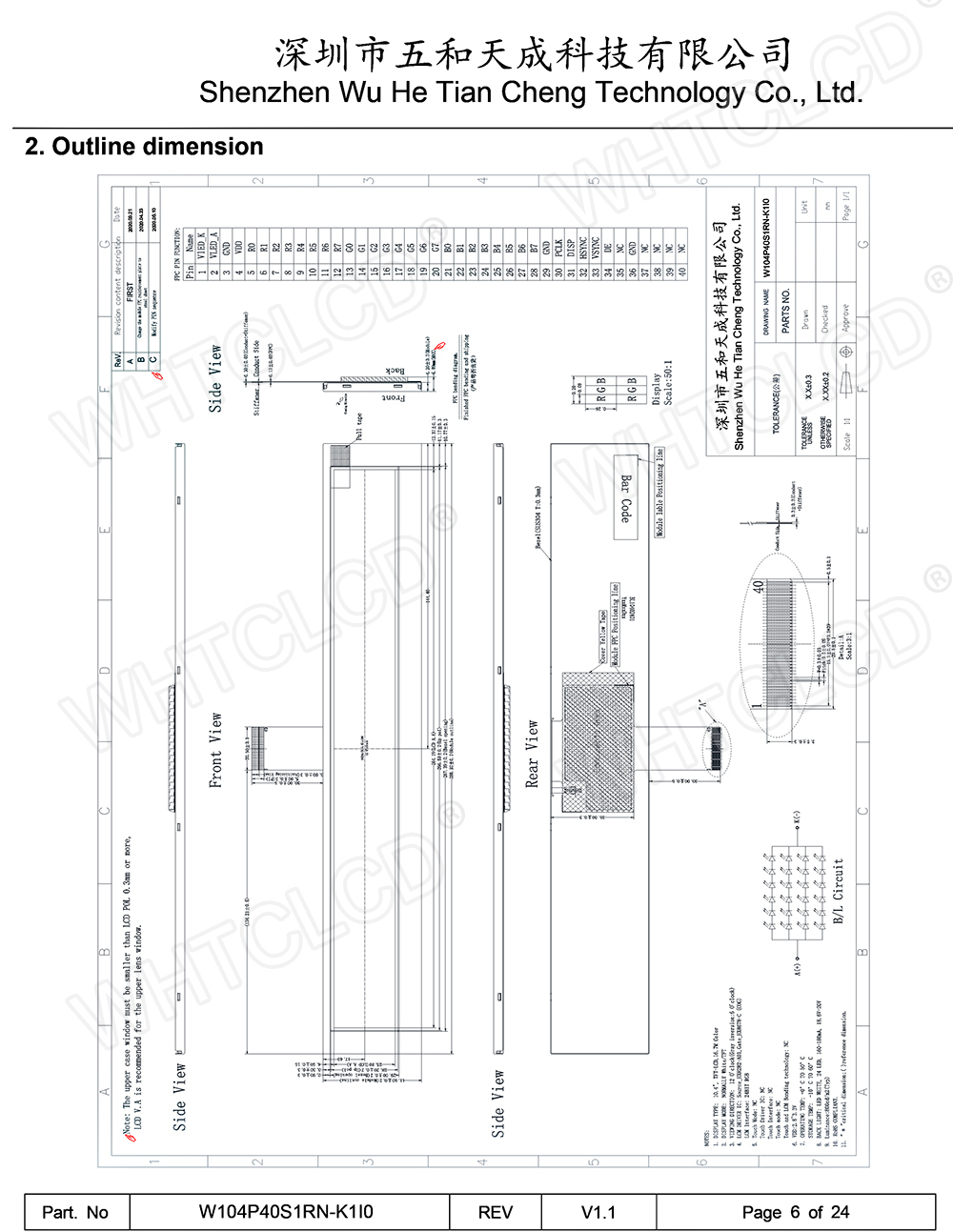

Outline Dimension of 10.4 Inch Bar TFT LCD Display

W104P40S1RN-K1B0

bar tft

Input terminal Pin Assignment of 10.4 Inch Bar TFT LCD Display

W104P40S1RN-K1B0

NO.	SYMBOL	DISCRIPTION	I/O
1	LED_K	Cathode pin OF backlight.	P
2	LED_A	Anode pin of backlight	P
3	GND	Ground.	P
4	VDD	Power Supply (3.3V).	P
5-12	RO-R7	Red data input	I
13-20	G0-G7	Green data input.	I
21-28	B0-B7	Blue data input	I
29	GND	Ground.	P
30	PCLK	Clock signal.Latching data at the rising edge.	I
31	DISP	Display power control PIN. H:Power ON. L:Power OFF.	I
32	HSYNC	Horizontal Sync input.Negative polarity.	I
33	VSYNC	Vertical Sync input.Negative polarity.	I
34	DE	Data input Enable.Active High to enable the data input Bus under "DE Mode".	I
35	NC	-	--
36	GND	Ground.	P
37	NC	--	--
38	NC	--	--
39	NC	--	-
40	NC	--	--

LCD Optical Characteristics of 10.4 Inch Bar TFT LCD Display

W104P40S1RN-K1B0

ltem		Symbol	Condition	Min.	Typ.	Max.	Unit	Note
Contrast Ratio		CR	O=0 Normal viewing angle	300	500	--		(1)(2)
Response time	Rising	TR+TF		--	25	50	msec	(1)(3)
Response time	Falling	TR+TF		--	25	50	msec	(1)(3)
Color gamut		S(%)		--	42	--	%
Color Filter Chromacicity	White	Wx		0.271	0.311	0.351		(1)(4) CA-310
	White	Wy		0.298	0.338	0.378
	Red	Rx		0.522	0.562	0.602
	Red	Ry		0.296	0.336	0.376
	Green	Gx		0.304	0.344	0.464
	Green	Gy		0.513	0.553	0.593
	Blue	Bx		0.111	0.151	0.291
	Blue	By		0.098	0.138	0.178
Viewing angle	Hor.	QL	CR>10	--	60	--		(1)(4)
	Hor.	OR		--	60	--
	Ver	Qu		--	60	--
	Ver	OD		--	50	--
Option View Direction		12:00
*The data comes from the LCD specification.
