W185C30H1LI-S012B0 18.5 Inch IPS TFT LCD

Name: W185C30H1LI-S012B0 18.5 Inch IPS TFT LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

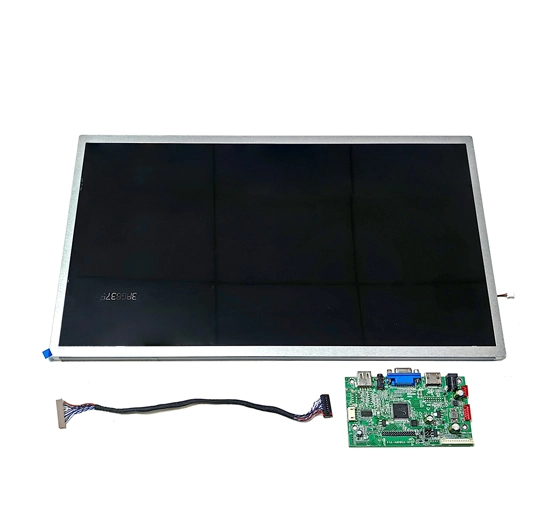

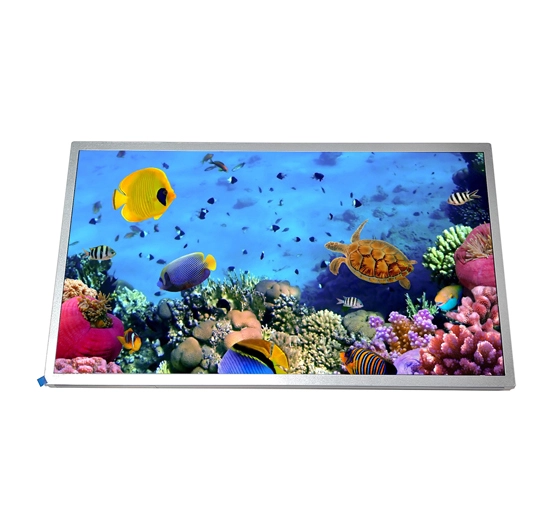

18.5 Inch IPS TFT LCD is a transmissive color active matrix liquid crystal display consisting of a TFT LCD panel, driver IC, FPC, and LED backlight unit. The activity display area is 408.96*230.04 with a native resolution of 1920 * 1080, capable of displaying colors up to 262K/16.7M. Applications include computer displays, testing equipment, medical devices, robots, automation equipment, automotive displays, and industrial displays.

Products

Parameters of 18.5 Inch IPS TFT LCD

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Brightness(nits)	OP(℃)
18.5	1920*1080	W185C30H1LI-S012B0	430.37254.611.5	408.96*230.04	IPS	LVDS	300	-20~70°C

General Specifications of 18.5 Inch IPS TFT LCD

W185C30H1LI-S012B0

Feature	Specifications	Unit
Size	18.5	inch
Technology Type	a-si TFT
Resolution	1920(RGB)x1080
Pixel pitch	~	mm
Pixel arrangement	RGB-stripe
Color Depth	262K/16.7M
Display Mode	TFT,Transmissive,Normally black
Driver IC	~
Surface Treatment	`
Viewing Direction	IPS
Gray Viewing Direction	`
LCM (W x H x D) (mm)	430.37(W)×254.6(H)×11.5(D) mm	mm
Active Area(mm)	408.96(W)×230.04(H) mm	mm

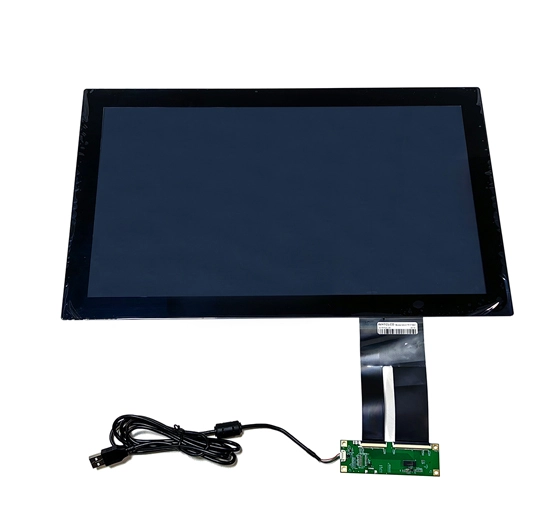

Touch Panel	Support CTP/RTP
Brightness	220-400	nits
Weight (g)	`	g
Interface	LVDS 30pin Connector
Operation Temperature	-20~70	℃
Storage Temperature	-30~85	℃
Module lifetime(Hours)	50,000-100,000	℃

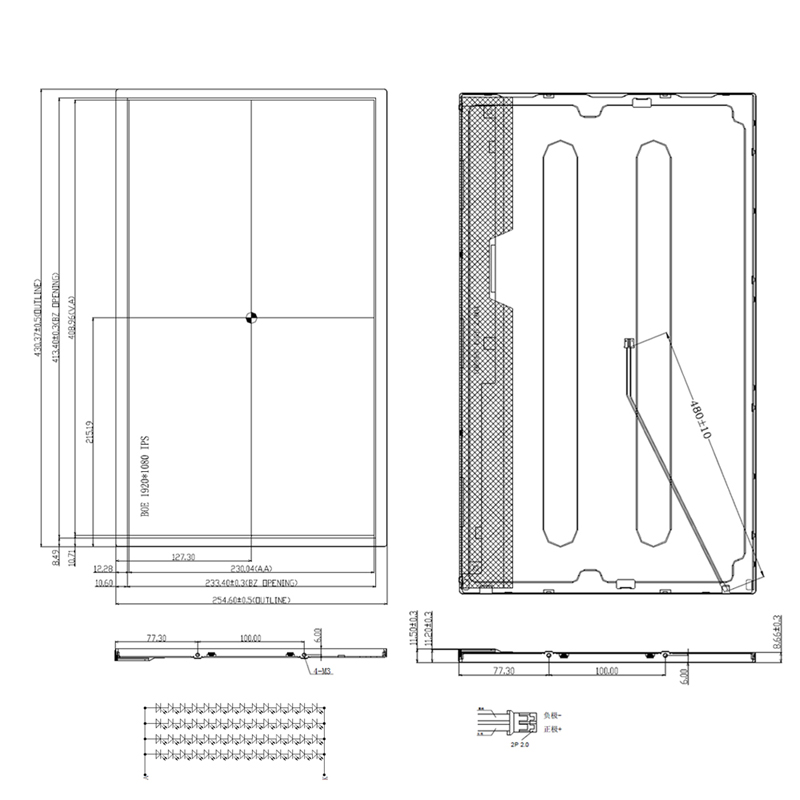

Structural Size of 18.5 Inch IPS TFT LCD

W185C30H1LI-S012B0

18.5 Inch IPS TFT LCD
