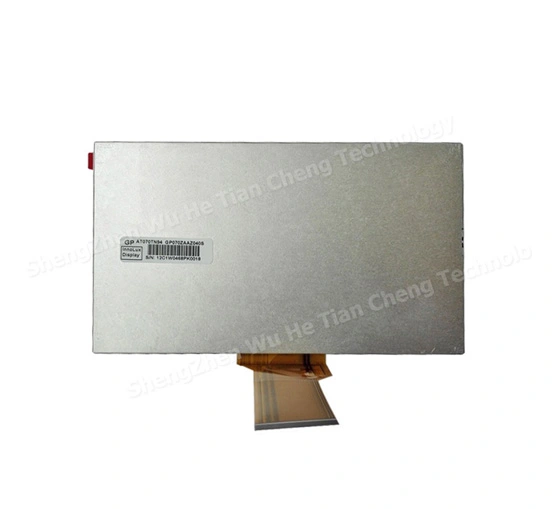

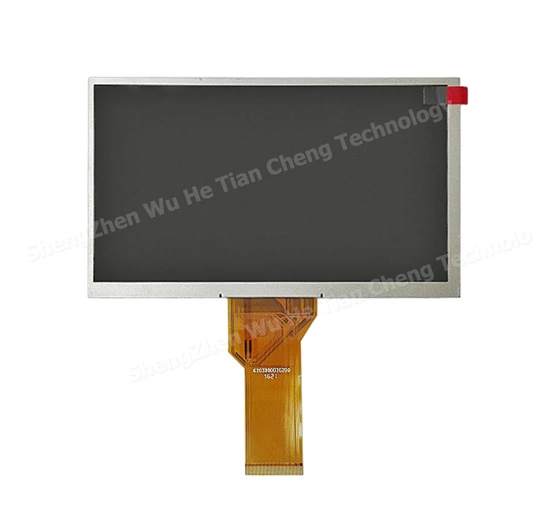

AT070TN92 7.0 Inch INNOLUX LCD Panel

Name: AT070TN92 7.0 Inch INNOLUX LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Innolux 7 inch tft lcd panel AT070TN92 with 800(RGB)x480 WVGA resolution, brightness 250 cd/m². This lcd display is working temperature is -30 ~ +80 (°C) and its storage temperature is -20 ~ +70 (°C). Based on its white LED backlight. This model is recommended for industrial use.

Original Innolux 7 inch 800x480 WVGA TFT LCD Panel RGB LCD Screen For Digital Photo Frame and Visual Doorbell AT070TN92 with 250nit and Controller board.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of AT070TN92 7.0 Inch INNOLUX LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
7	800*480	AT070TN92	164.91005.7	154.08*85.92	TN	RGB	250	-20~70°C

General Specifications of AT070TN92 7.0 Inch INNOLUX LCD Panel

AT070TN92

Manufacturer	INNOLUX
Model Name	AT070TN92
Screen Size	7 inch
Screen Type	LCM, a-Si TFT-LCD
Pixel Number	800(RGB)×480 , WVGA
Active Area(mm)	154.08 x 85.92 (HxV)
Outline(mm）	164.9 x 100 x 6 (HxVxD)
Bezel Area(mm)	156.7 x 89.1 (HxV)
Treatment	Anti-glare , Hard coating (2H) , Anti-reflection
Luminance	250 cd/m²
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	70/70/50/70(Typ)(CR≥10) Left / Right / Up / Down
Response	10/15(Typ.)(Tr/Td) ms
Good View at	6 O’CLOCK
Work Mode	TN , Normally White,Transmissive
Color Depth	262K/16.7M , 50% NTSC
Backlight	WLED , 20K Hours ,without driver
Net Weight	150.0g (Typ.)
operating frequency	60Hz
Touchscreen	without
Signal Type	Parallel RGB (1 ch, 6/8-bit) , 50 pins , FPC
Voltage Supply	+3.3 V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ +80 (°C)
Max. Ratings	Operating Temp.: -20 ~ +70 (°C)
Package	Innolux original package;
Package	50 pcs/carton
