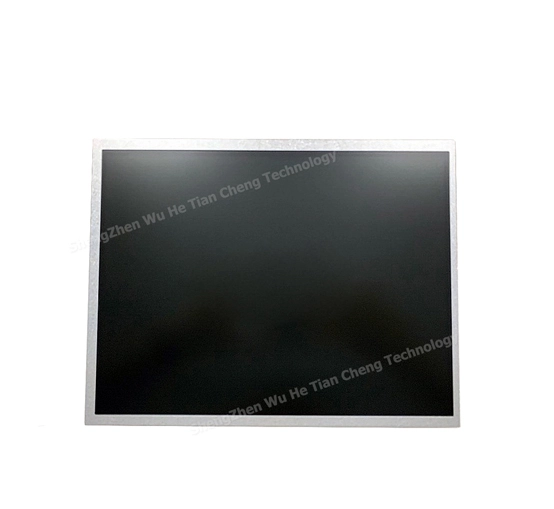

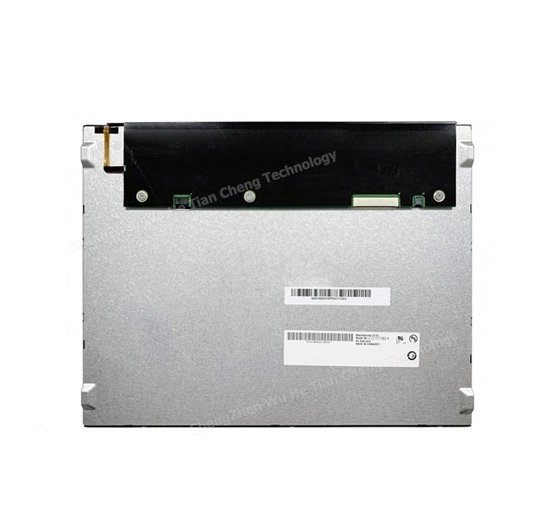

G121STN02.0 12.1 AUO LCD Panel

Name: G121STN02.0 12.1 AUO LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

AUO 12.1 inch tft lcd panel G121STN02.0 with 800(RGB)x600 SVGA resolution, brightness 500 cd/m². This lcd display's working temperature is -30 ~ +85 (°C) and it's storage temperature is -30 ~ +85 (°C). Based on it's white LED backlight. This model is recommended for industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G121STN02.0 12.1 AUO LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
12.1	800*600	G121STN02.0	260.52039	246*184.5	IPS	LVDS	500	-30~85°C

General Specifications of G121STN02.0 12.1 AUO LCD Panel

Manufacturer	AUO
Model Name	G121STN02.0
Screen Size	12.1 inch
Pixel Number	800(RGB)×600 , SVGA
Active Area(mm)	246 × 184.5 (H×V)
Outline(mm）	260.5 × 203 × 9 (H×V×D)
Bezel Area(mm)	249 × 187.5 (H×V)
Treatment	Anti-glare, Hardness 3H
Luminance	500 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	80/80/65/75 (CR≥10)
Viewing Angle	Left/Right/UP/Down
Response	25/10 (Typ.)(Tr/Td) ms
Work Mode	TN , Normally white , Transmissive
Color Depth	262K/16.7M , 53% NTSC
Backlight	WLED , 50K hours , with LED Driver
Net Weight	600g (Typ.)
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6/8-bit) , 20 pins
Voltage Supply	+3.3 V (Typ./Max.)
Max. Ratings	Storage Temp.: -30 ~ +85 (°C)
Max. Ratings	Operating Temp.: -30 ~ +85 (°C)
Package	AUO Original package;
	20 pcs/ carton;
	weight : 15.0Kgs;
	size : 570(L) x 320(W) x 420(H)mm
