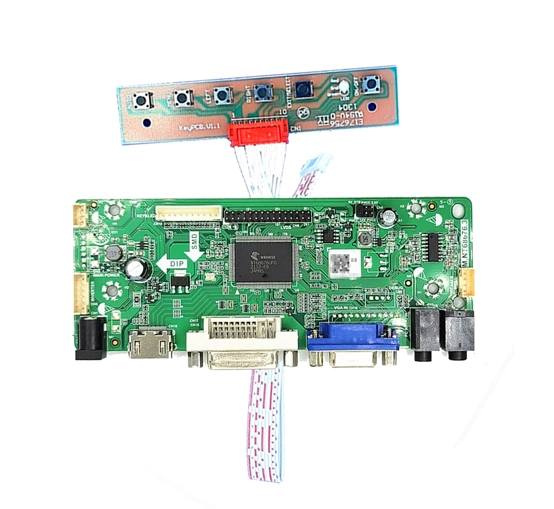

M.NT68676.3 LVDS LCD Controller Board

Parameters of M.NT68676.3 LVDS LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
12	M.NT68676.3	VGA / DVI / HDMI Signal input; Supports multiple resolutions, sound output, Supports 7~ 32 inch LCD screen	LVDS 30pin	NO	DC12V

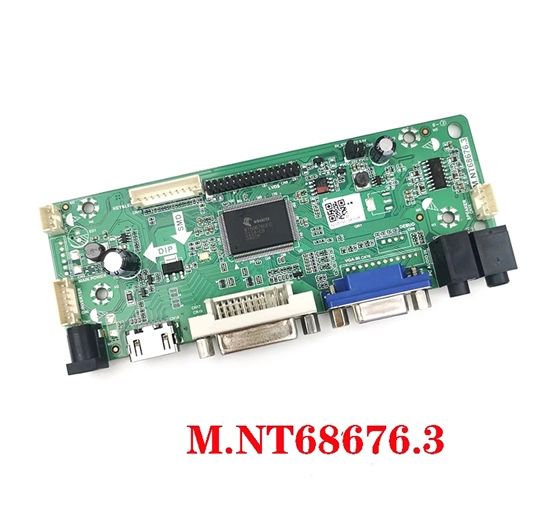

General Specifications of M.NT68676.3 LVDS LCD Controller Board

Model: JRY-W9KFHD-EV1 (30pin)

1 HDMI VGA signal input

2 signal output supports LVDS 30pin Single/Double 6/8-bit interface LCD screen

3 Power input: DC+12V

4 Multi functional OSD Operations

5 with remote control function (optional)

MAIN CHIPSET	NT686
OSD LANGUAGE	Simplified Chinese, Traditional Chinese, English, French, German, Italian, Spanish, Portuguese, Korean (optional)
PANEL	Panel Type	TFT LCD
	Interface	Dual LVDS
	Max Resolution	1920*1080
VIDEO INPUT	PC-RGB(VGA)	Format	Up to 1920×1080@60Hz
	HDMI	480i, 480p, 720p, 1080i, 1080p
	DVI	480i, 480p, 720p, 1080i, 1080p
AUDIO INPUT	PC Audio	PC Audio Input	0.2 ~ 2.0 VRMS
AUDIO OUTPUT	Earphone	Earphone output	130 ~ 150mVRMS
	Frequency response	150Hz-15KHz @±3dB(1KHz -12dB reference signal)
	Max Output power	2×1W(8Ω) THD+N<10%@1KHz (Power Supply:5V,Audio Input: 0.5VRMS)
POWER TO PANEL	3.3V/1100mA ; 5V/1000mA ; 12V/900mA
Management	Standby Power Consumption < 0.2W(Board Only)
Button Types	Ground Key Interface
Note: Licenses involved in specifications above are supposed to be obtained by customers themselves.

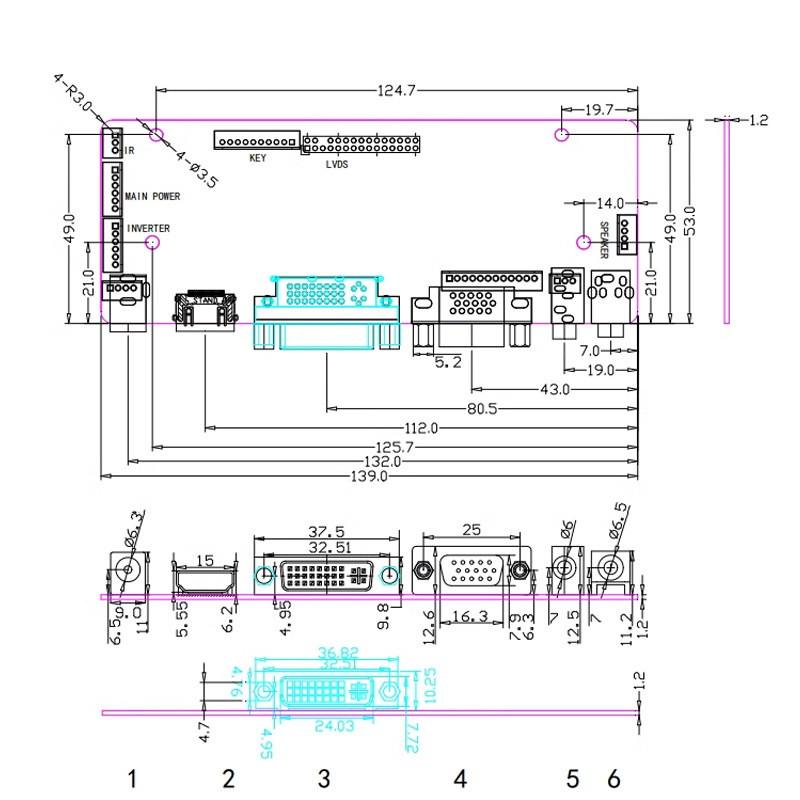

Structural Size of M.NT68676.3 LVDS LCD Controller Board
