MPI5001 5 Inch Raspberry Pi HDMI LCD Display(CTP)

5"standard display, 800x480 resolution, maximum HDMI resolution 1920X1080 is supported. Capacitive touch screen, support 5 point touch maximum. Built-in OSD menu adjustment function (adjustable Contrast/ Brightness/Saturation, etc.). It is compatible with mainstream mini PC such as Raspberry Pi, BB Black, Banana Pi. It can also be used as a general-purpose HDMI display, connecting computers, TV boxes, Microsoft Xbox360, SONY PS4, Nintendo Switch and so on. Used as a Raspberry Pi display that supports Raspbian, Ubuntu, Kodi, Win10 IOT, single-touch, free drive. Work as a PC monitor, support Win7, Win8, Win10 system 5 point touch (XP and older version system: single-point touch), free drive. Support HDMI audio output. CE, RoHS certification.

Products

Parameters of 5 Inch Raspberry Pi HDMI LCD Display(CTP)

Raspberry Pi HDMI LCD Display
Remark:All Models Support Capacitive or Resistive Touch Panel.
Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
5	800*480	MPI5001	IPS	HDMI	121.1195.2415	108*64.8	Earphone	CTP	0.30A*5V	-20~60°C

SKU	MPI5001
Screen Size	5 inch
LCD Type	TN TFT
Module Interface	HDMI
Resolution	800*480 (Pixel)
Active Area	108.00*64.80 (mm)
Touch Screen Controller	5 point capacitive touch
LCD Driver IC	-
Backlight	LED
power consumption	0.34A*5V
Working temperature（℃）	-20~60
Module PCB Size	121.11*95.24 (mm)
Package Size	15313551 (mm)
Rough Weight(Package containing) (g)	259 (g)

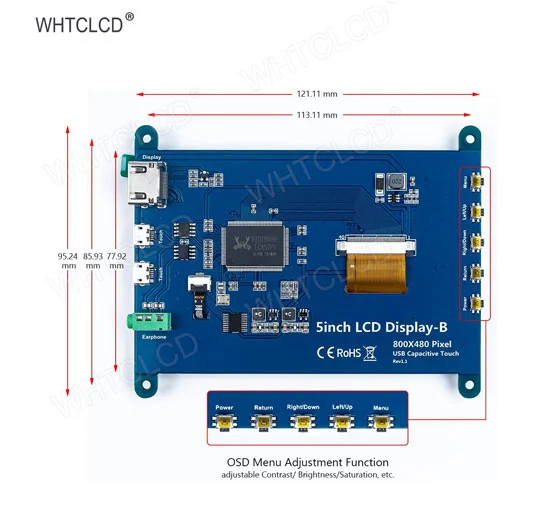

Hardware Description of 5 Inch Raspberry Pi HDMI LCD Display(CTP)

stm32 nucleo f446re

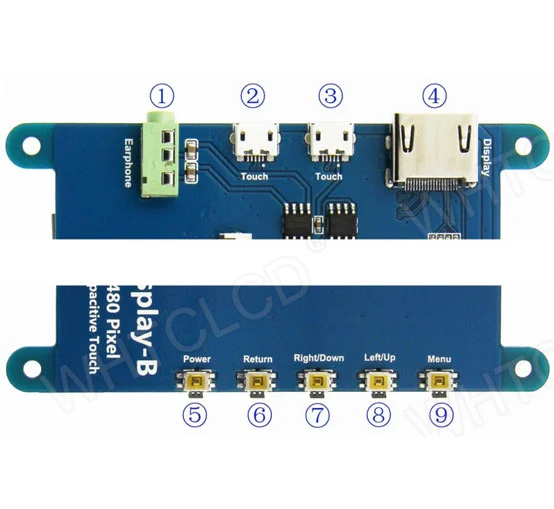

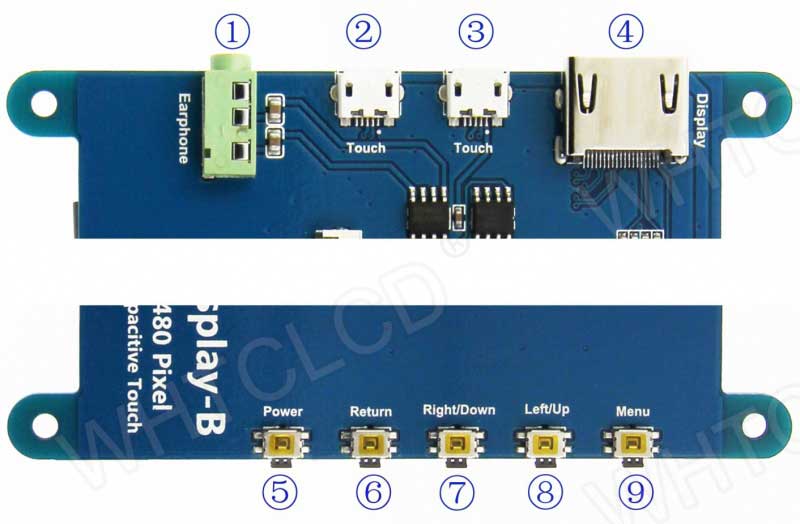

Hardware capabilities

① Earphone: 3.5mm Audio output interface
②&③ Touch: USB connector ( For power supply and touch output, the functions of the both are the same, can just use one of them)
④ Display: HDMI interface ( For connecting motherboard and LCD monitor)
⑤ Power: Turn on or off display and backlight to save power consumption
⑥ Return: Return (Only valid in the OSD Settings menu)
⑦ Right/Down: Direction Right/Down （Backlight shortcut key）
⑧ Left/Up: Direction Left/Up （Backlight shortcut key）
⑨ Menu: Open the OSD / Select key (Only valid in the OSD Settings menu)

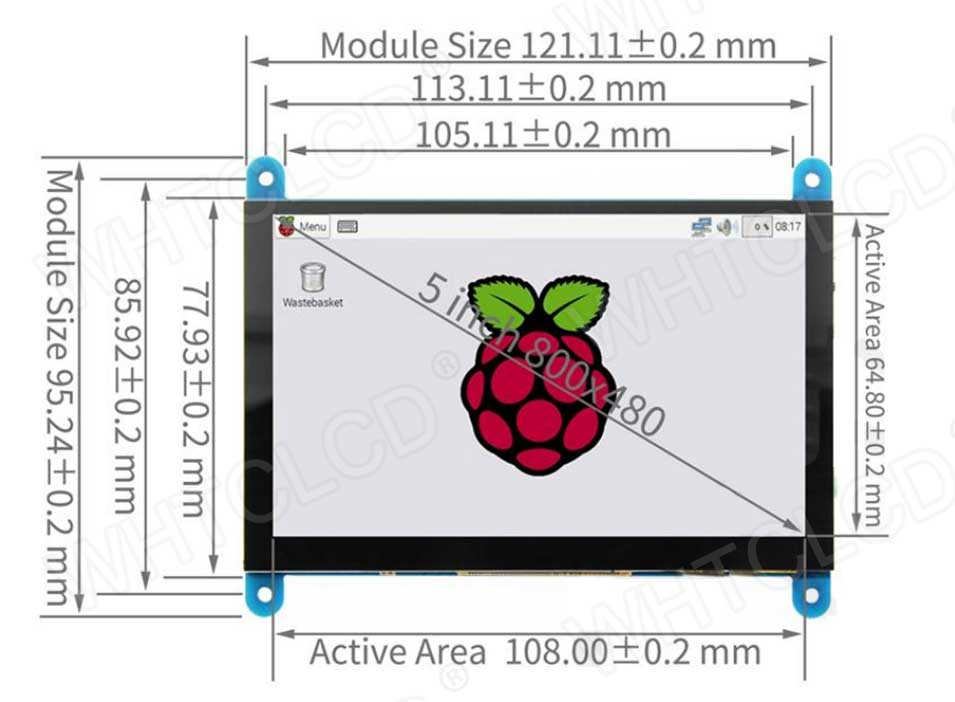

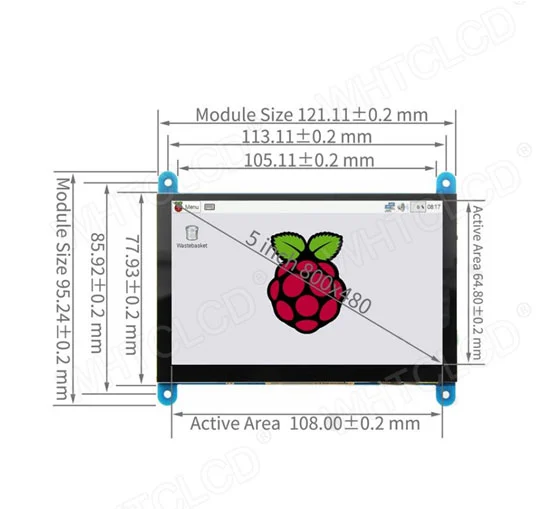

Product Size of 5 Inch Raspberry Pi HDMI LCD Display(CTP)

stm32 nucleo h743zi2
