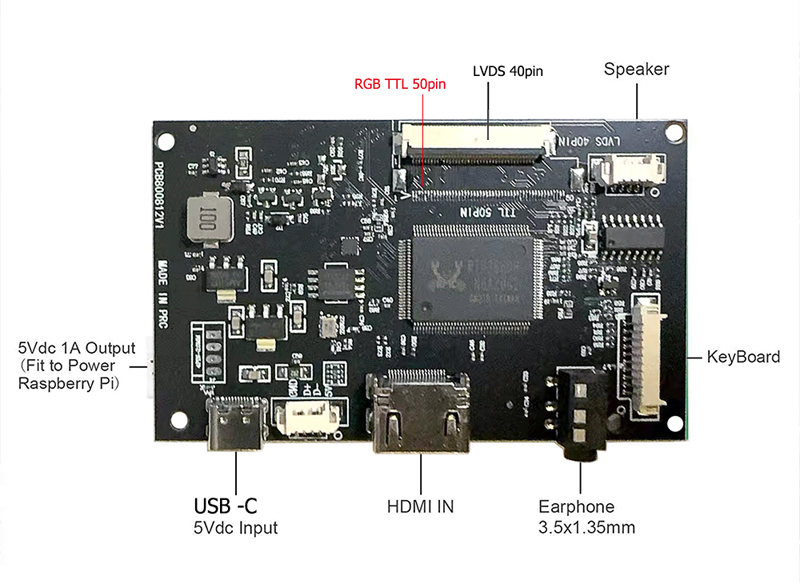

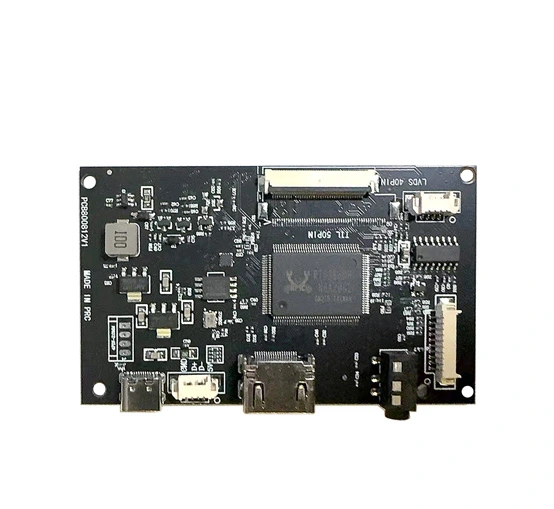

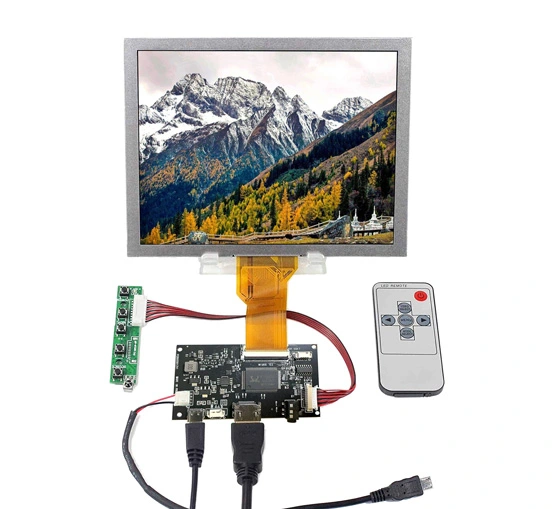

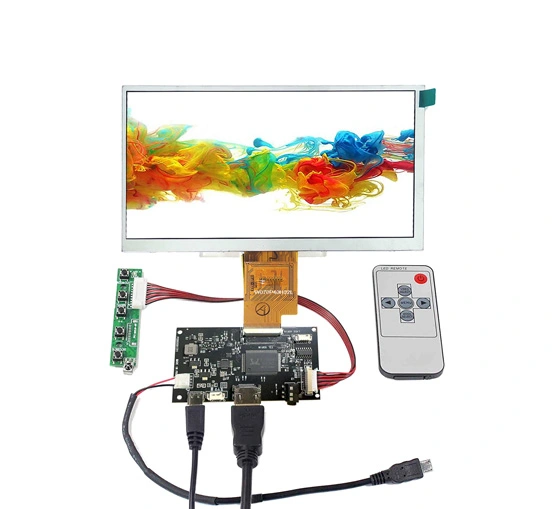

PCB800812 LVDS LCD Controller Board

Parameters of PCB800812 LVDS LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
3	PCB800812	HDMI Signal input; Supports multiple resolutions, With sound output, Supports 7 / 8 / 9 / 10.1 inch LCD screen	LVDS 40pin / RGB TTL 50pin	YES	USB +5V

General Specifications of PCB800812 LVDS LCD Controller Board

1. Type-C USB power interface, 5V standard power supply, needs to be greater than 1.5A

2.1 HDMI signal input, and this IC supports HDMI 1.2

3. Supports amplifier output, 8 ohm-2W/4 ohm-2W

4. Standard 5-key keypad interface, and supports dual color LED indicator display

5. The driver board adopts a special circuit design, which can drive LED backlight of about 10V and support a maximum current output of 200mA,

6. Supports RGB TTL-50pin standard interface (see AT070TN92), LVDS 40pin standard defined interface (see EJ070NA-01J)

7. RGB TTL 50 pin signal output,

Support AT070TN92,

AT065TN14

AT080TN52

AT090TN12

AT090TN10

AT070TN90

AT070TN93

AT070TN94 and other TTL LCD screens with a universal 50PIN interface

8. In conjunction with PCB800100, it can also support 4. 3, 5, 6, 7 inch, 40PIN universal screen, as defined in AT043TN24V, 1

9-40pin LVDS defines interfaces that can be directly driven

EJ070NA01-1024x600 resolution

EJ080NA04B-1024X768 resolution

EJ101NA-02C-1280x800

EJ101NA-01G-1280X800

ZJ080NA-01

For other models, please check the LCD screen specifications by yourself or consult our technical department

10. The maximum output display resolution of this driver board is 1920x120 VGA and HDMI slave inputs (related to the LCD screen)

11 driver boards use fully surface mounted components

12. This driver board can add remote control function (which needs to be implemented through software). Existing programs only require adding a remote control and can be used directly

13. This driver board can automatically detect and display relevant input voltage information. Note that this function is customized and requires contact with our company's technical department

14. This driver board can support automatic detection signal on/off function, which is a customized function

15. HDMI signal display, default 4S automatic standby without signal, automatic power on with signal, energy-saving design function

16. The normal program for this driver board is to power on and start up, but there is no signal waiting for the machine

17. If there are special requirements, our company can provide other customized services

18. Using our company's USB interface program download board, you can add logos to BIN code by yourself

19. Only supports HDMI sound output. It is recommended to choose amplifier specifications such as 8 ohms/1W, 8 ohms/2W, 4 ohms/1W, 4 ohms/2W, etc

20. This driver board adopts a double-sided gold-plated special FPC socket, FPC, which is not connected to the top or bottom in the area, and can be used directly

21. The VCOM voltage of the driver board is designed to be adjusted by a potentiometer, which can adapt to more LCD screens and is easy and simple to adjust

22. Supports headphone output function, supports national and international standards, two headphone standard interfaces, and is compatible with 3.5mm headphones commonly used in most mobile phones
