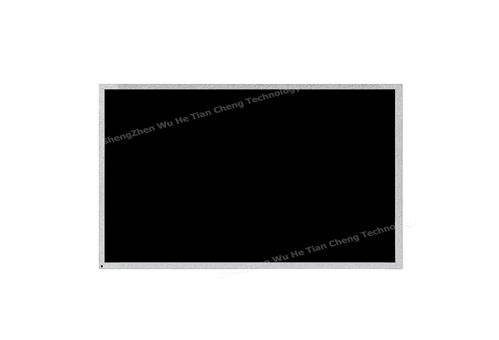

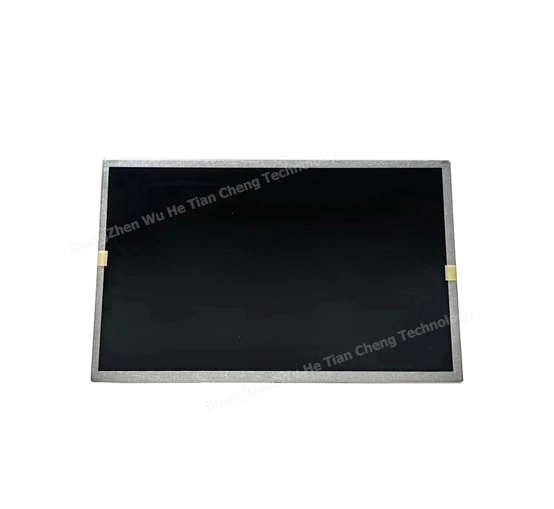

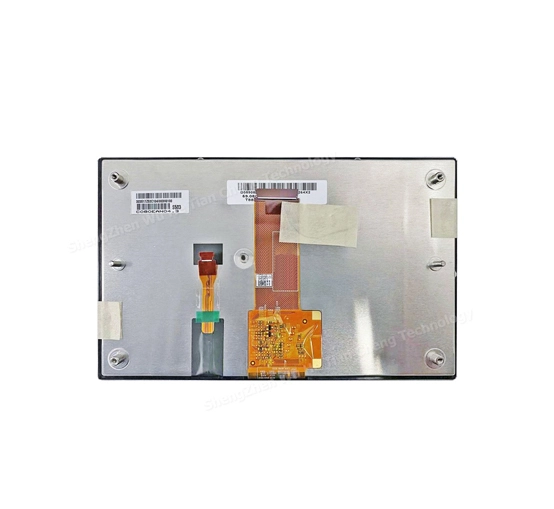

C080EAN04.3 8.0 AUO LCD Panel

Name: C080EAN04.3 8.0 AUO LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

AUO 8 inch tft lcd ips panel C080EAN04.3 with 1280(RGB)x720 WXGA resolution, brightness 900 cd/m² , LVDS 40pin FPC. This lcd display's working temperature is -30 ~ +85 (°C) and it's storage temperature is -40 ~ +95 (°C). Based on it's white LED backlight. This model is recommended for industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of C080EAN04.3 8.0 AUO LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
8	1280*720	C080EAN04.3	188.5117.2214.85	176.64*99.36	IPS	LVDS	900	-30~85°C

General Specifications of C080EAN04.3 8.0 AUO LCD Panel

C080EAN04.3

Manufacturer	AUO
Model Name	C080EAN04.3
Screen Size	8 inch
Pixel Number	1280(RGB)×720 , WXGA
Active Area(mm)	176.64(W)×99.36 (H×V)
Outline(mm）	188.5(W)×117.22(H)×14.85(D)
Pixel Pitch(mm)	0.0897 x 0.0897 (H×V)
Luminance	900 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80
Response time	20 (Typ.)(Tr/Td) ms
Display Mode	AHVA , Normally black , Transmissive
Color Depth	16.7M , 65% NTSC
Backlight	WLE D, 30K hours , with LED Driver
Net Weight	~
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 8-bit) , 40 pins , FPC
Voltage Supply	+3.3 V
Max. Ratings	Storage Temp.: -40 ~ +95 (°C)
Max. Ratings	Operating Temp.: -30 ~ +85 (°C)
Package	AUO Original package;
	28 pcs/ctn;
	weight : 10.2Kgs;
	size : 520(L) x 340(W) x 250(H) mm
