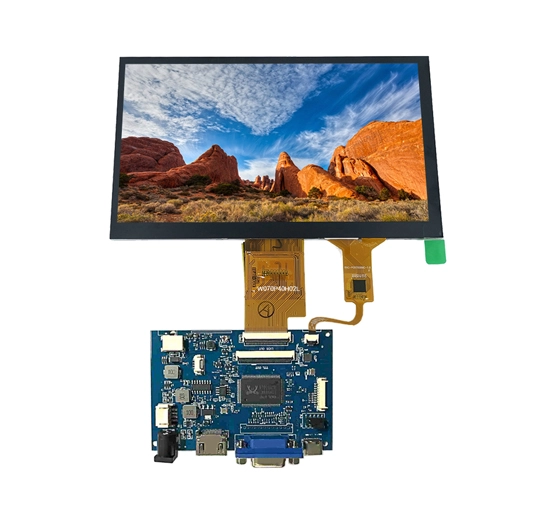

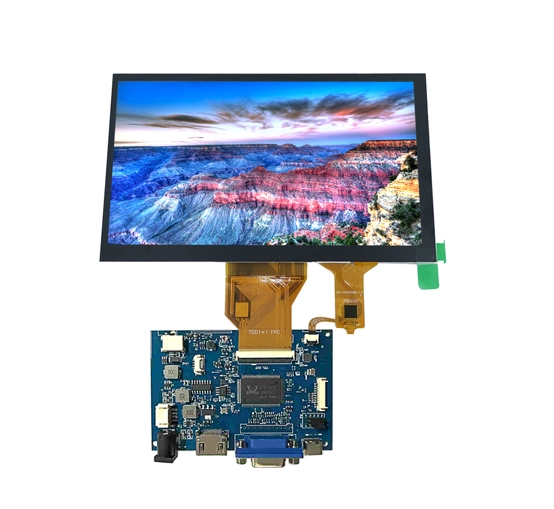

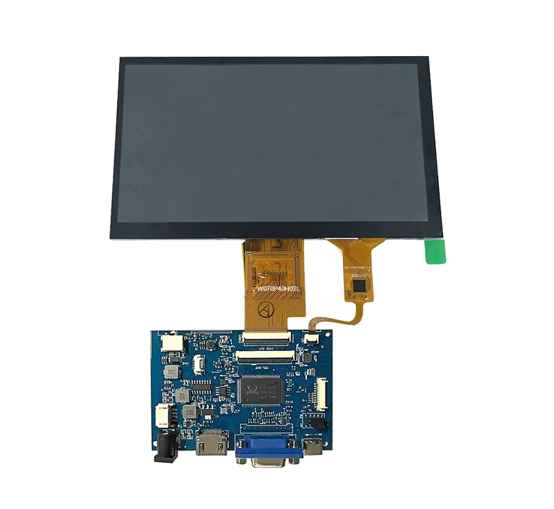

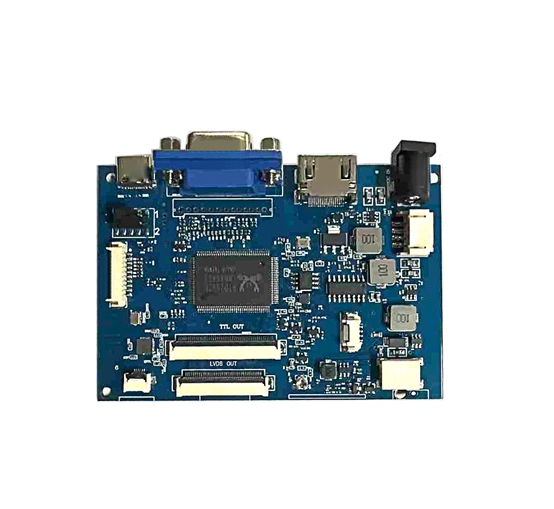

PCB800810 LVDS LCD Controller Board

Parameters of PCB800810 LVDS LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
7	PCB800810	Type-C / VGA / HDMI Signal input; Supports multiple resolutions, sound output, TOUCH PANEL Supports 7 / 8 / 9 / 10.1 inch LCD screen	LVDS 40pin / RGB TTL 50pin	YES	DC12V

General Specifications of PCB800810 LVDS LCD Controller Board

Universal driver board + high brightness backlight series

LCD driver board specifications

HDMI+VGA+Touch+Highlight+TLL+LVDS

Product name PCB800810 driver board

Supplier: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Product description:

This driver board uses SIXTHHD-HD1 main control IC.

Supports more than 12 different LCD screen resolution settings, and more will be added in the future. . .

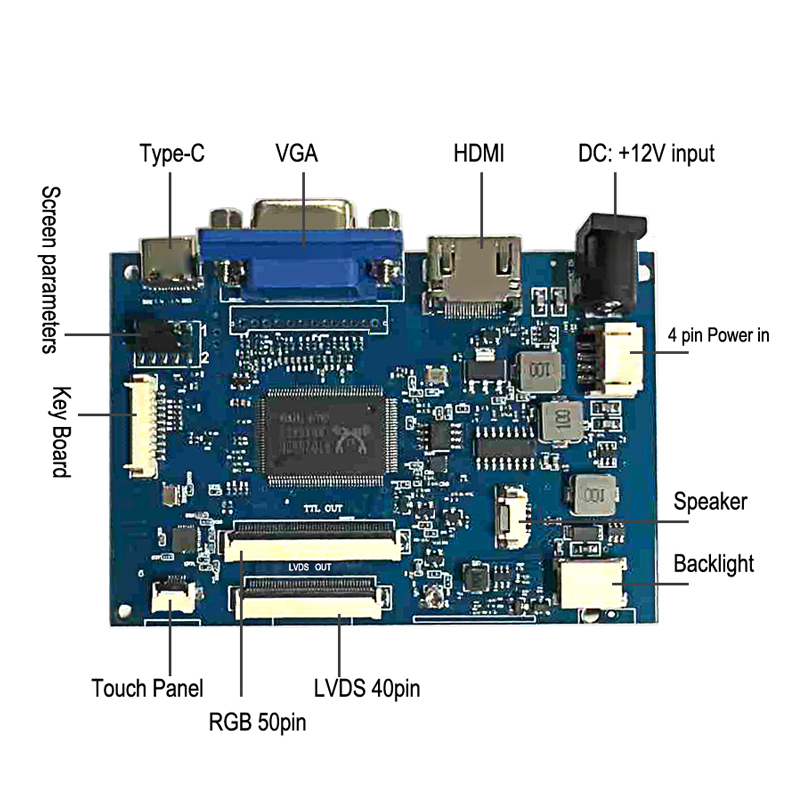

Function:

1. 1 channel VGA signal input

2. 1 channel AV signal (normal software does not enable it by default and needs to be customized)

3. 1 HDMI signal input, and this IC supports HDMI1.2

4. 1 channel reversing signal input

5. Supports wide voltage input and can work normally between 4.5V-18V.

6. Support capacitive touch connection, support Goodix GT911-913-928-9110-9157, etc.

7. The driver board integrates the LCD screen LED backlight driver board circuit.

8. Support 50PIN -TTL+40PIN -LVDS definition

9. Standard keypad interface and supports dual-color LED indicator display

10. Support RGB TTL 50pin signal output,

Screen that can be driven:

ZJ050NA-08C, EJ050NA-08C, AT070TN92, AT065TN14, AT080TN52, AT090TN12, AT090TN1, AT070TN90, AT070TN93, AT070TN94,W070P50S1RN,W070P50S2RN, W101P50H1RI, etc., universal 50pin interface TTL LCD screen, matched with our company's PCB800602 adapter board

It can effectively support Hancai, AUO, Tianma, BOE, Zhonghua and other common 60PIN defined TTL interfaces, for example,

HSD070IDW1,A070VW04,A080SN01,A104SN01,HSD084IDW1, etc.,

11. LVDS 40pin definition supports the following LCD screens

EJ070NA01-1024*600 resolution

EJ080NA04B-1024*768 resolution

ZJ070NA01, model universal 40pin high-resolution LCD screen

EJ101NA-01G, EJ080NA-01E, EJ080NA-04C, etc.

12. With PCB800100, it can also support 4.3, 5, 6, 7-inch, 40pin universal screens. For definition, see AT043TN24 V.1

13. The maximum output display resolution of this driver board is 1920x1080. When the display resolution exceeds 1440x900, it is necessary to add a heat sink depending on the working conditions of the IC to reduce the operating temperature of the IC)

14 ICs, support VGA, and HDMI port upgrade

15. This driver board can add remote control function (needs to be realized through software)

16. This driver board can automatically detect and display relevant input voltage information ----- Note, this function is a customized function, you need to contact our company's technical department

17. This driver board can support automatic signal detection and power on/off function. This function is a customized function.

18. This driver board can add a BNC interface---needs customization

19. Supports reverse control and displays on AV2 that the reverse voltage supports voltage input within 50V.

20. This drive plate has four positioning holes.

21. If there are special requirements, our company can provide other customized services.

22. If the customer needs to change the program, he needs to contact our company and purchase the relevant program download board.

23. Using the company's USB interface program download board, you can add the LOGO to the BIN code by yourself
