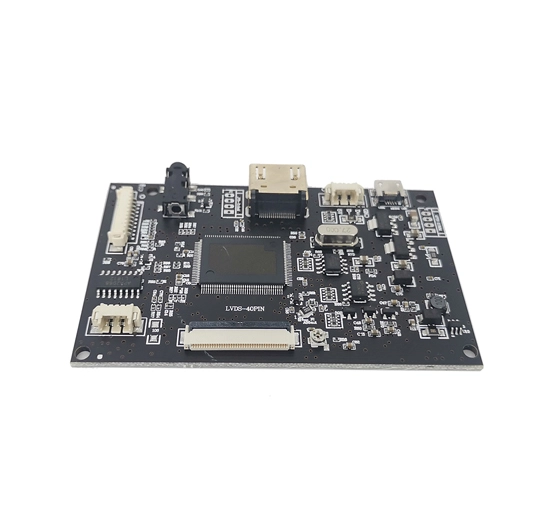

PCB800815 LVDS LCD Controller Board

Parameters of PCB800815 LVDS LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply

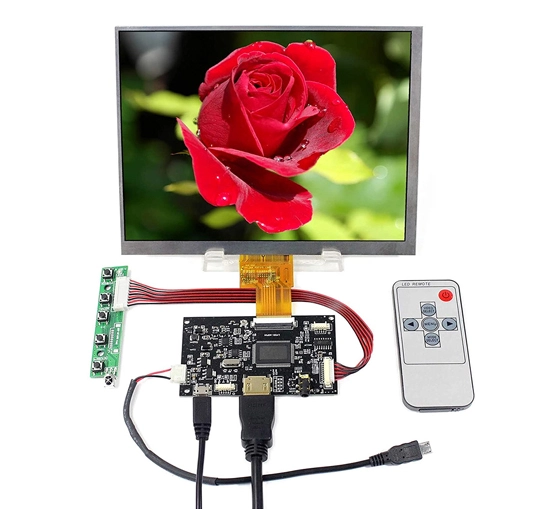

4	PCB800815	HDMI Signal input; Supports multiple resolutions, With sound output, Supports 7 / 8 / 9 / 10.1 inch LCD screen	LVDS 40pin	NO	USB +5V

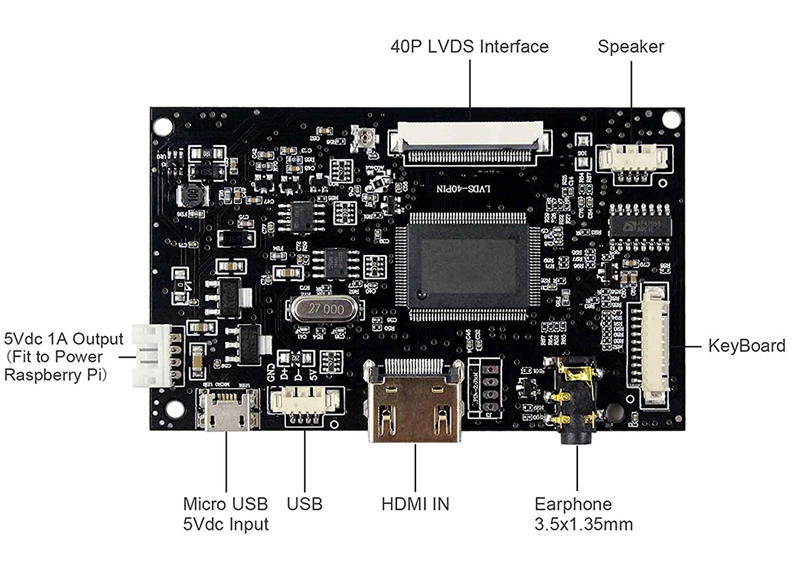

General Specifications of PCB800815 LVDS LCD Controller Board

1, Product size: 87.5*52.8MM*7MM

2, Mirco USB Power supply interface, 5V Standard power supply, current >3A

3, Using SMD encapsulated connectors

4, 1 channel HDMI signal input, and this IC supports HDMI1.2.

5, Using high-quality gold-plated connectors -40PIN - HT101SI04AC3 definition

6, supporting power amplifier output, 8 Ω -2W/4 Ω -2W

7, The driver board adopts a special circuit design, which can drive LED backlight of around 16.8V~19.2V, and can support a maximum current output of 220MA,

8，Supported, TTL-40P standard interface (see HT101SI04AC3),

9, Standard 5-key keyboard interface and support for dual color LED indicator display

10, Support LVDS signal output

For other models, please verify the LCD screen specifications yourself or consult our company's technical department

11, The maximum output display resolution of this driver board is 1920X120HDMI signal input

12, This drive board adopts fully SMD components

13, This driver board can add remote control function

14, This driver board can automatically detect and display relevant input voltage information. Note that this function is customized and requires contact with our company's technical department

15, HDMI signal display, default 4S automatic server without signal, automatic power on with signal, with energy-saving design function

16, The normal program of this driver board is to power on and start up, and there is no signal waiting for the machine

17, There are four positioning holes for this drive board，

18, Only HDMI sound output is supported. It is recommended to choose 8 Ω/1W, 8 Ω/2W, 4 Ω/1W, 4 Ω/2W, and other specifications for the power amplifier

19, This driver board adopts a double-sided gold-plated special FPC holder, FPC, which is not connected up or down in the area, and can be used directly

20, Dual audio output interface design for better versatility

21, The voltage of VCOM on the drive board is adjusted by Potentiometer

22, Supports headphone output function, supports national and international standards, two types of headphone standard interfaces, and is compatible with most 3.5MM earphones used in mobile phones
