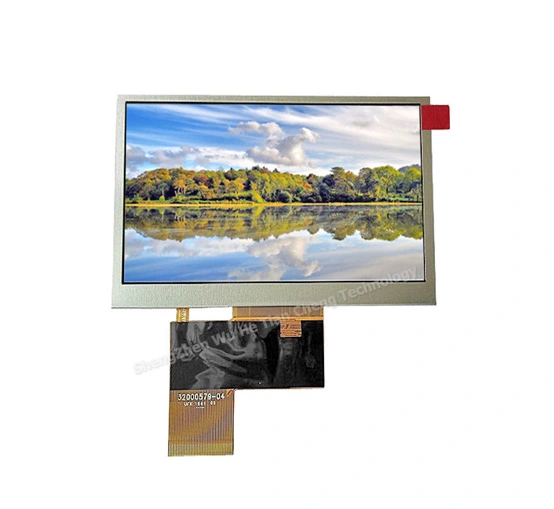

AT043TN25 V.2 4.3 Inch INNOLUX LCD Panel

Name: AT043TN25 V.2 4.3 Inch INNOLUX LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Innolux 4.3-inch TFT LCD panel model AT043TN25 V.2 features a 480(RGB)x272 VGA resolution and a brightness of 500 cd/m². The operating temperature range of this LCD display is -20 to +70 degrees Celsius, and the storage temperature range is -30 to +80 degrees Celsius. It is based on white LED backlighting. This model is recommended for industrial applications.

Resistive and capacitive touch options that are compatible are available. Additionally, we offer a matched HDMI driver board.

The original Innolux 4.3-inch 480x272 WQVGA TFT LCD module with RGB LCD screen AT043TN25 V.2 features a brightness of 500 nits, a refresh rate of 60Hz, and comes with a controller board.

Products

Parameters of 4.3 Inch INNOLUX LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
4.3	480*272	AT043TN25 V.2	105.567.23.1	95.04*53.856	TN	RGB	500	-20~70°C

General Specifications of 4.3 Inch INNOLUX LCD Panel

AT043TN25 V.2

Manufacturer	Innolux
Model Name	AT043TN25 V.2
Screen Size	4.3 inch
Pixel Number	480(RGB)×272 , WQVGA
Active Area(mm)	95.04(W) x 53.856(H)
Outline(mm）	105.5(W) x 67.2(H) x 2.9(D)
Treatment	Anti-glare
Luminance	500 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	70/70/50/70 (Typ.)(CR≥10)
Response	10/15 (Typ.)(Tr/Td) ms
Work Mode	TN , Normally white , Transmissive
Color Depth	16.7M , 50% NTSC
Backlight	WLED , 20K hours , whitout driver
Net Weight	45.0g (Typ.)
Touchscreen	Without
Signal Type/interface Type	Parallel RGB (1 ch, 8-bit) , FPC , 40 pins
Voltage Supply	+3.3 V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ +80 (°C)
Max. Ratings	Operating Temp.: -20 ~ +70 (°C)
Package	Innolux original package;
Package	160 pcs/carton;
