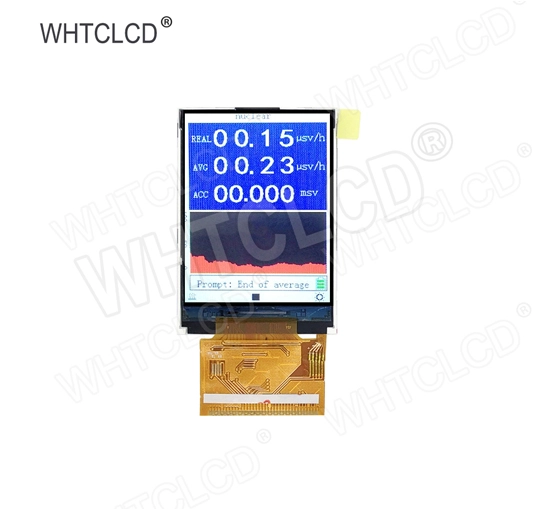

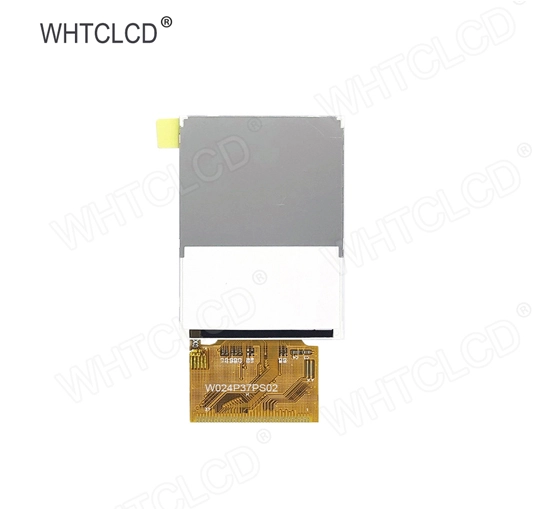

W024P37S1CN-A02B0 2.4 Inch TN TFT LCD

Name: W024P37S1CN-A02B0 2.4 Inch TN TFT LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

2.4 Inch TN TFT LCD is a transmissive type color active matrix liquid crystal display this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 36.72*48.96 and the native resolution is 240*320, Applications: digital watches，wire tester，sphygmomanometer, ECG machine，Handheld devices.

Products

Parameters of 2.4 Inch TN TFT LCD

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Brightness(nits)	OP(℃)
2.4	240*320	W024P37S1CN-A02B0	42.7260.262.3	36.72*48.76	TN	MCU	300	-20~70°C

General Specifications of 2.4 Inch TN TFT LCD

W024P37S1CN-A02B0

Feature	Specifications	Unit
Size	2.4	inch
Technology Type	a-si TFT
Resolution	240(RGB)x320
Pixel pitch	`	mm
Pixel arrangement	RGB-stripe
Color Depth	262K
Display Mode	TFT,Transmissive,Normally black
Driver IC	ST7789V
Surface Treatment	`
Viewing Direction	12 O'Clock
Gray Viewing Direction	6 O'Clock
LCM (W x H x D) (mm)	42.72(W)×60.26(H)×2.65(D) mm	mm
Active Area(mm)	36.72(W)×48.96(H) mm	mm
Touch Panel	Support CTP/RTP
Brightness	200	nits
Weight (g)	14	g
Interface	MCU ; FPC 37pin
Operation Temperature	-20~70	℃
Storage Temperature	-30~80	℃
Module lifetime(Hours)	50,000-100,000	℃

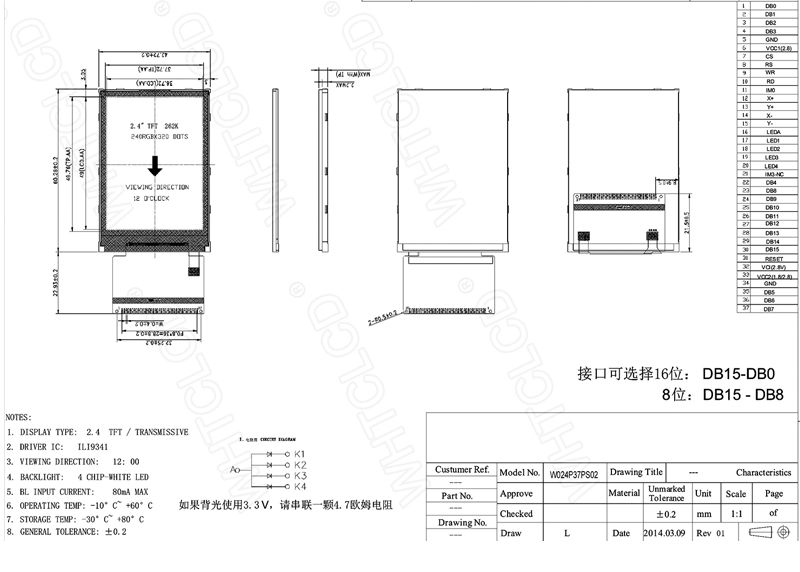

Structural Size of 2.4 Inch TN TFT LCD

W024P37S1CN-A02B0

2.4 Inch TN TFT LCD
