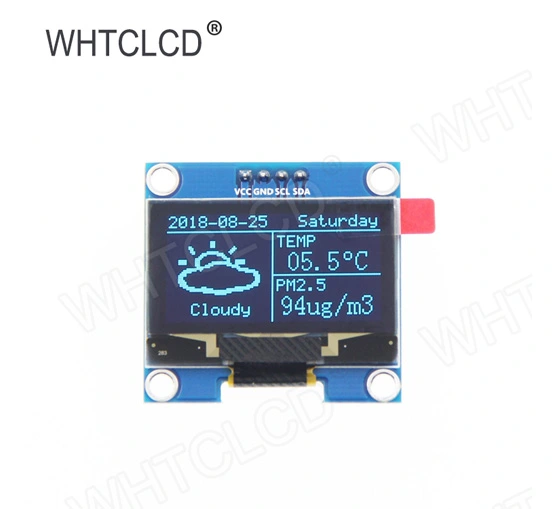

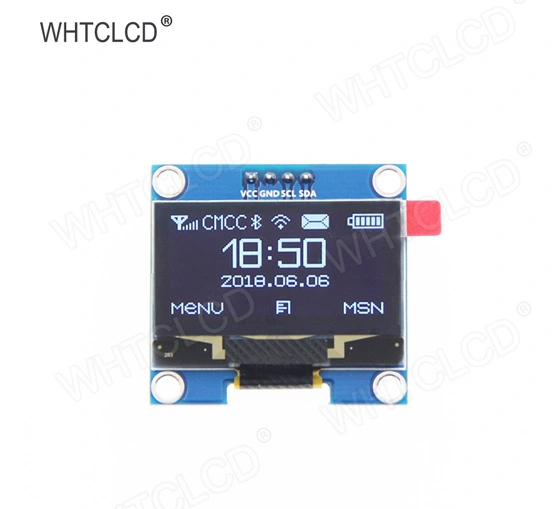

MC130 1.3 Inch IIC Oled Display Module

Name: MC130 1.3 Inch IIC Oled Display Module
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

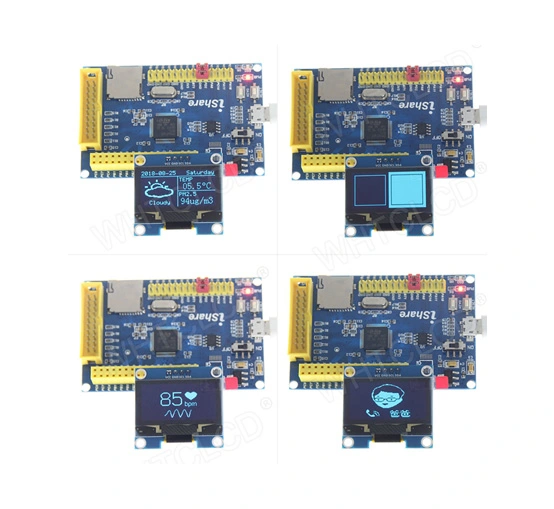

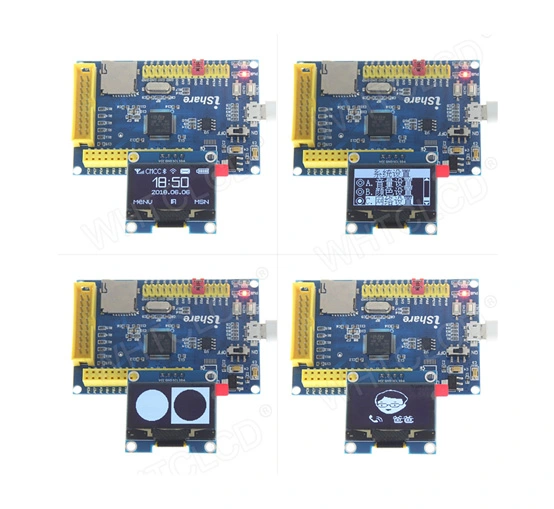

1.3 inch OLED screen with black and white or black and blue color display. 128x64 resolution for clear display and high contrast. Large viewing angle: greater than 160° (one screen with the largest viewing angle in the display). Wide voltage supply (3V~5V), compatible with 3.3V and 5V logic levels, no level shifting chip required. With IIC bus, only a few IOs can be used to light up the display. Ultra-low power consumption: normal display is only 0.06W (far below the TFT display). Military-grade process standards, long-term stable work. Provides a rich sample program for STM32, C51, Arduino, Raspberry Pi and MSP430 platforms. Provide underlying driver technical support.

Products

Parameters of 1.3 Inch IIC Oled Display Module

Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
1.3	128*64	MC130	IPS	IIC interface	42.40x38*6	35.052*17.516	NC	CN	5V/3.3V	-20~60°C

Name	Parameter
Display Color	white/blue
SKU	MC130VW/MC130VB
Screen Size	1.3(inch)
Screen Type	OLED
Driver IC	SH1106
Resolution	128*64 (Pixel)
Module Interface	IIC interface
Active Area	29.42x14.7(mm)
Touch Screen Type	have no touch screen
Touch IC	have no IC
Module PCB Size	33.50x35.40(mm)
Visual Angle	>160°
Operating Temperature	-20℃~60℃
Storage Temperature	-30℃~70℃
Operating Voltage	3.3V~5V
Power Consumption	TBD
Rough Weight(Package containing)	10(g)

Hardware Description of 1.3 Inch IIC Oled Display Module

portable monitor touchscreen

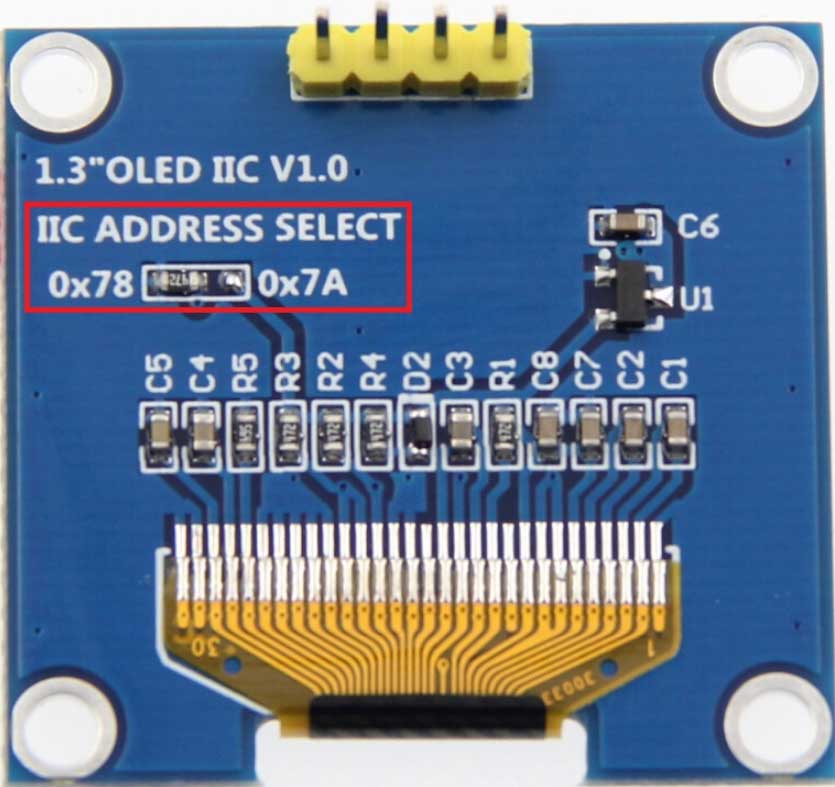

Picture 1. Module pin silk screen

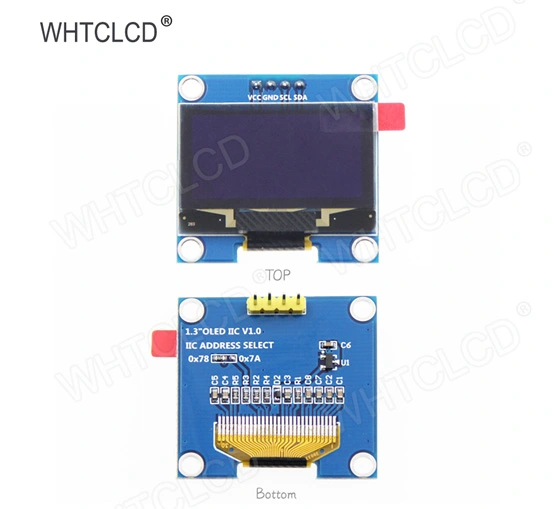

Picture 2. Rear view of the module

NOTE:

1.This module supports IIC slave device address switching (shown in red box in Picture 4), as follows:

A.Solder the 0x78 side resistance, disconnect the 0x7A side, then select the 0x78 slave address (default);

B.Solder the 0x7A side resistance, disconnect the 0x78 side, then select the 0x7A slave address;

2.The hardware switches the IIC slave device address, and the software also needs to be modified accordingly.

For details, see the test program description document or the user manual..

Number	Module Pin	Pin description
1	VCC	OLED power positive (3.3V~5V)
2	GND	OLED power ground
3	SCL	OLED IIC bus clock signal
4	SDA	OLED IIC bus data signal

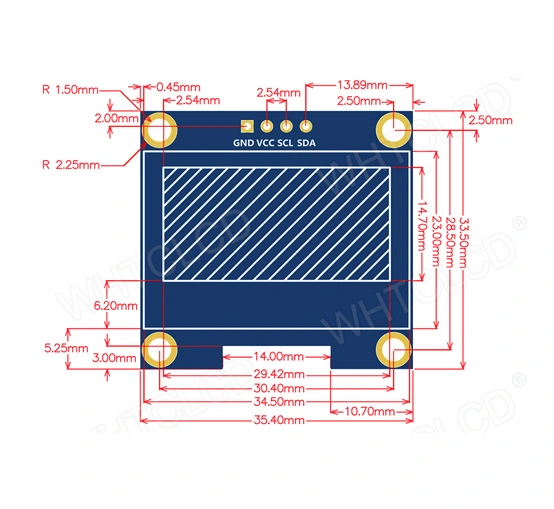

Product Size of 1.3 Inch IIC Oled Display Module

portable touch screen
