MC154 1.54 Inch IIC Oled Display Module

Name: MC154 1.54 Inch IIC Oled Display Module
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

1.54 inch OLED screen with black and white or black and blue color display. 128x64 resolution for clear display and high contrast. Large viewing angle: greater than 160° (one screen with the largest viewing angle in the display). Wide voltage supply (3V~5V), compatible with 3.3V and 5V logic levels, no level shifting chip required. With IIC bus, only a few IOs can be used to light up the display. Ultra-low power consumption: normal display is only 0.06W (far below the TFT display). Military-grade process standards, long-term stable work. Provides a rich sample program for STM32, C51, Arduino, Raspberry Pi and MSP430 platforms. Provide underlying driver technical support.

Products

Parameters of 1.54 Inch IIC Oled Display Module

Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
1.54	128*64	MC154	IPS	IIC interface	42..4386	35.052*17.51	NC	CN	5V/3.3V	-20~60°C

Name	Parameter
Display Color	white/blue
SKU	MC154GW/MC154GB
Screen Size	1.54(inch)
Screen Type	OLED
Driver IC	SSD1309
Resolution	128*64 (Pixel)
Module Interface	IIC interface
Active Area	35.052x17.516(mm)
Touch Screen Type	have no touch screen
Touch IC	have no IC
Module PCB Size	42.40x38.00(mm)
Visual Angle	>160°
Operating Temperature	-20℃~60℃
Storage Temperature	-30℃~70℃
Operating Voltage	3.3V~5V
Power Consumption	TBD
Rough Weight(Package containing)	12(g)

Hardware Description of 1.54 Inch IIC Oled Display Module

tft touch screen

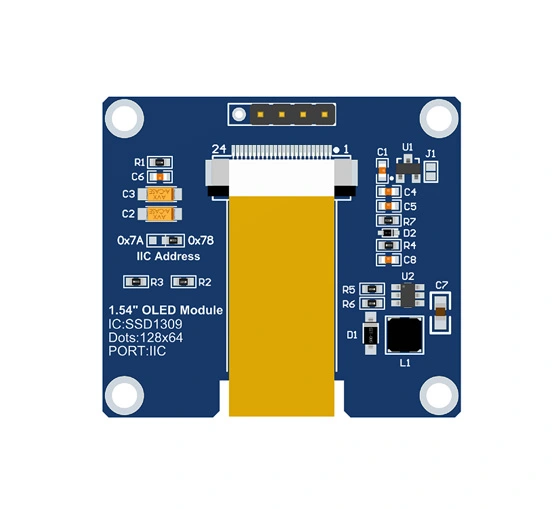

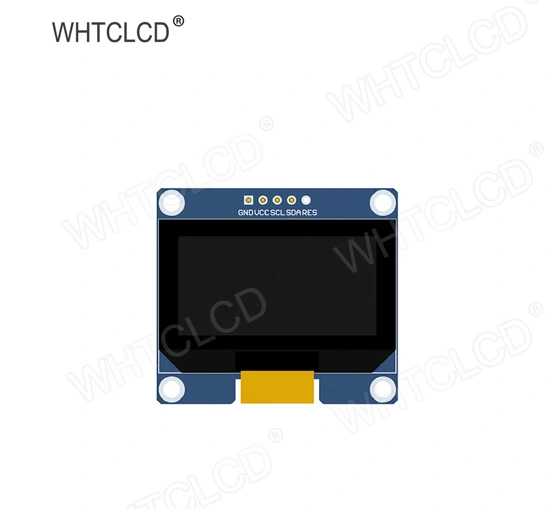

Picture 1. Module pin silk screen

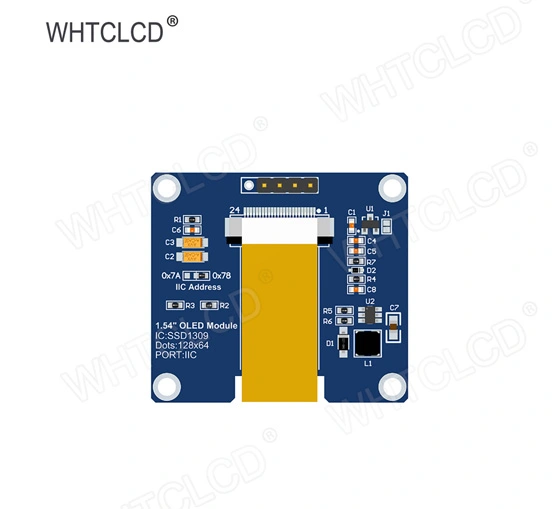

Picture 2. Rear view of the module

NOTE:

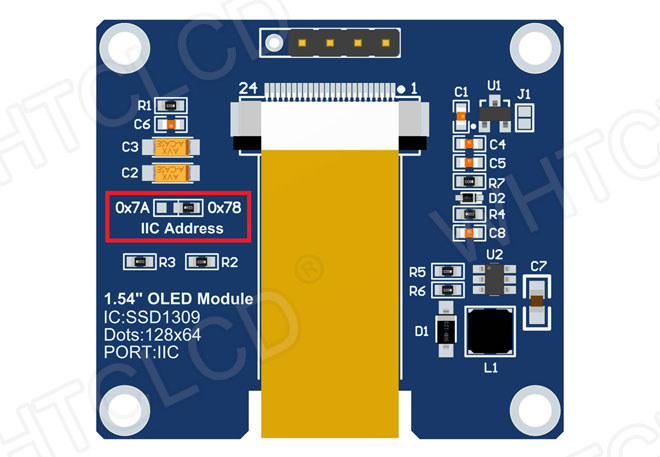

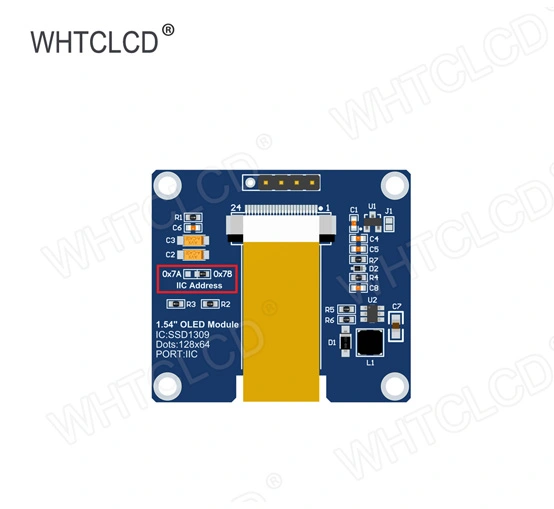

1.This module supports IIC slave device address switching (shown in red box in Picture 4), as follows:

A.Solder the 0x78 side resistance, disconnect the 0x7A side, then select the 0x78 slave address (default);

B.Solder the 0x7A side resistance, disconnect the 0x78 side, then select the 0x7A slave address;

2.The hardware switches the IIC slave device address, and the software also needs to be modified accordingly.

For details, see the test program description document or the user manual..

Number	Module Pin	Pin description
1	GND	OLED power ground
2	VCC	OLED power positive (3.3V~5V)
3	SCL	OLED IIC bus clock signal
4	SDA	OLED IIC bus data signal
5	RES	OLED reset signal, low level reset, May not be used(The module has a reset circuit, which can be powered on and reset)

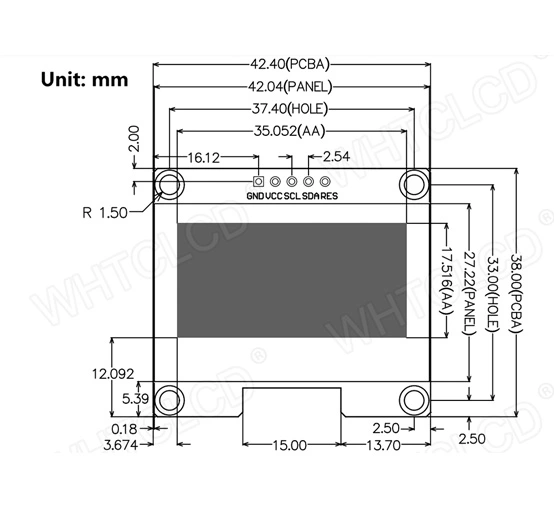

Product Size of 1.54 Inch IIC Oled Display Module

touch display
