W035P54S1RI-H03I0 3.5 Inch IPS TFT LCD

Name: W035P54S1RI-H03I0 3.5 Inch IPS TFT LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

3.5 Inch IPS TFT LCD is a transmissive type color active matrix liquid crystal display this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 70.08*52.56 and the native resolution is 320*240, Applications: digital watches，wire tester，sphygmomanometer, ECG machine，Handheld devices.

Products

Parameters of 3.5 Inch IPS TFT LCD

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Brightness(nits)	OP(℃)
3.5	320*240	W035P54S1RI-H03I0	76.7863.743.20	70.08*52.56	IPS	RGB	300~1500	-30~80°C

lnput/Output Terminals of 3.5 Inch IPS TFT LCD

W035P54S1RI-H03I0

No.	Symbol	Description
1,2	VBL-	Backlight LED Cathode
3,4	VBL+	Backlight LED Anode.
5	YU	Touch panel up side
6	XR	Touch panel right side
7	NC	NC
8	RESET	Reset Signal pin ("Low" is enable)
9	SPENB	Chip select
10	SPCK	Serial Clock.
11	SPDA	Serial Data
12--19	B0~B7	Data bus
20-27	G0~G7	Data bus
28-35	R0~R7	Data bus
36	HSYNC	Line Synchronous Signal
37	VSYNC	Frame Synchronous Signal
38	DOTCLK	Dot-clock signal and oscillator source
39-40	NC	NC
41-42	VDD	Power supply for logic operation
43	YD	Touch panel bottom side
44	XL	Touch panel left side
45-47	NC
48	IF2	Control the input data format/floating
49	IF1	Control the input data format
50	IF0	Control the input data format
51	NC	NC
52	DEN	Display enable signal
53-54	GND	System Ground

General Specifications of 3.5 Inch IPS TFT LCD

W035P54S1RI-H03I0

Feature	Specifications	Unit
Size	3.5	inch
Technology Type	a-si TFT
Resolution	320(RGB)x240
Pixel pitch	~	mm
Pixel arrangement	RGB-stripe
Color Depth	262K
Display Mode	TFT,Transmissive,Normally black
Driver IC	8238
Surface Treatment	`
Viewing Direction	IPS
Gray Viewing Direction	`
LCM (W x H x D) (mm)	76.9(W)×63.9(H)×3.5(D) mm	mm
Active Area(mm)	70.08(W)×52.56(H) mm	mm
Touch Panel	Support CTP/RTP
Brightness	300	nits
Weight (g)	16	g
Interface	RGB FPC 54pin
Operation Temperature	-20~70	℃
Storage Temperature	-30~80	℃
Module lifetime(Hours)	50,000-100,000	℃

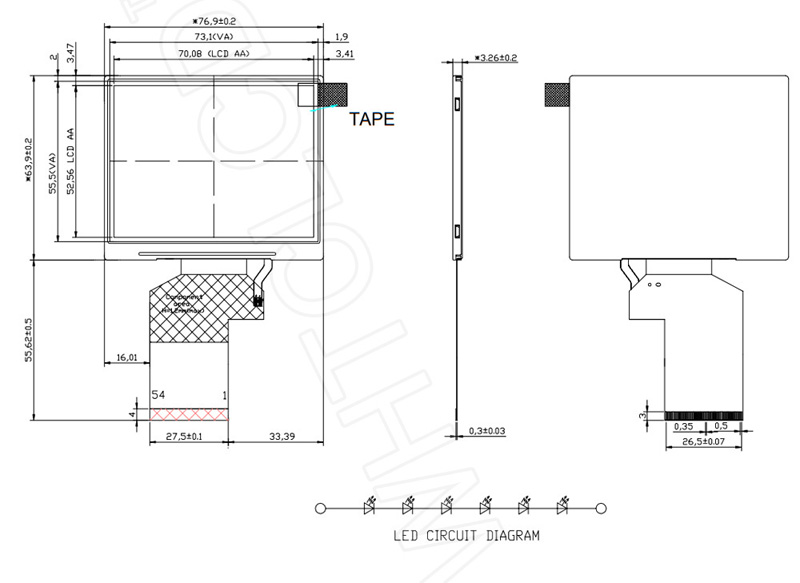

Structural Size of 3.5 Inch IPS TFT LCD

W035P54S1RI-H03I0

3.5 Inch IPS TFT LCD
