MC01503 1.5 Inch IIC Oled Display Module

Name: MC01503 1.5 Inch IIC Oled Display Module
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

1.5-inch OLED, high resolution: 128X64 (same resolution as 12864, high PPI). Super large viewing angle: greater than 160 °(the screen with the largest viewing angle in the display screen). Ultra low power consumption: normal display 0.06w (far lower than TFT display). Wide voltage supply (3V ~ 5V), compatible with 3.3V and 5V level logic, without level conversion chip. The default SPI interface (IIC interface can be changed), only 5 IOS are needed to light up easily. The working temperature range is industrial grade (- 20 ℃ ~ 70 ℃). Military grade process standard, long-term stable work. Provide rich routines, provide the underlying driver technical support. Support 16 bit grayscale display.

Products

Parameters of 1.5 Inch IIC Oled Display Module

Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
1.5	128*128	MC01503	IPS	IIC interface	45.5034.306	26.86*26.86	NC	CN	5V/3.3V	-20~60°C

Name	Parameter
Display Color	white
SKU	MC01503
Screen Size	1.5(inch)
Screen Type	OLED
Driver IC	SSD1327
Resolution	128*128 (Pixel)
Module Interface	IIC，①-GND,②-VCC,③-SCL,④-SDA
Active Area	26.86x26.86(mm)
Module PCB Size	45.50x34.30(mm)
visual angle	>160°
Operating temperature	-20℃~60℃
Storage temperature	-30℃~70℃
Operating Voltage	3.3V / 5V
Power Consumption	TBD
Rough Weight(Package containing)	12(g)

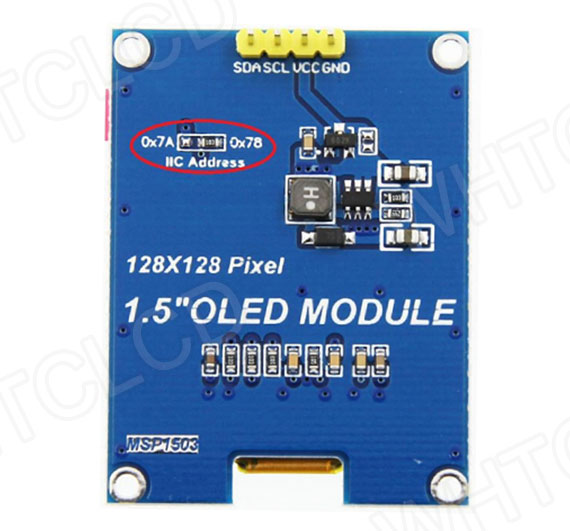

Hardware Description of 1.5 Inch IIC Oled Display Module

touch screen monitor for mac

PIN	Number	Pin description
1	GND	OLED power ground
2	VCC	OLED power positive (3.3V~5V)
3	SCL	OLED IIC bus clock signal
4	SDA	OLED IIC bus data signal

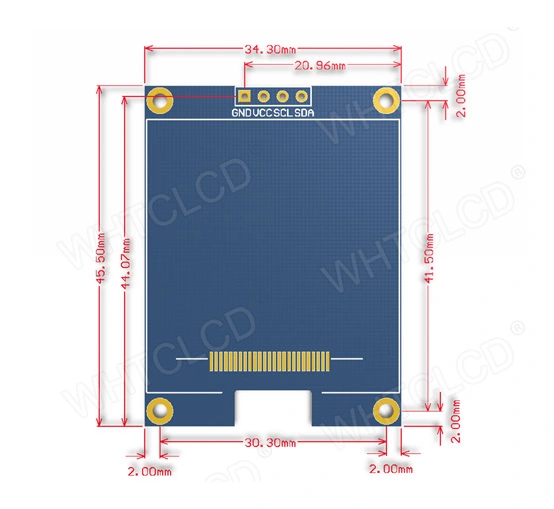

Product Size of 1.5 Inch IIC Oled Display Module

touch screen monitor for pc
