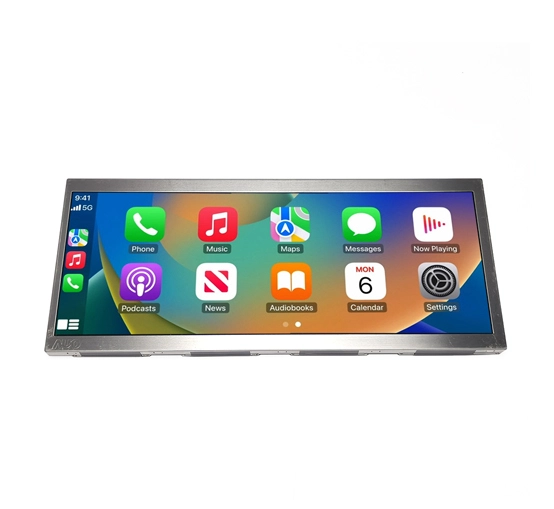

W123C40H1LI-Z016I0 12.3 Inch IPS TFT LCD

Name: W123C40H1LI-Z016I0 12.3 Inch IPS TFT LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

W123C40H1LI is a transmissive color active matrix liquid crystal display consisting of a TFT LCD panel, driver IC, FPC, and LED backlight unit. The activity display area is 292.032 * 109.512, with a native resolution of 1920 * 720, capable of displaying colors up to 262K/16.7M. Applications include testing equipment, medical devices, robots, automation equipment, automotive displays, and industrial displays.

Products

Parameters of 12.3 Inch IPS TFT LCD

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Brightness (nits)	OP(℃)
12.3	1920*720	W123C40H1LI-Z016I0	308.1×134.86×15.6	292.32×109.62	IPS	LVDS	700	-30~80°C

General Specifications of 12.3 Inch IPS TFT LCD

W123C40H1LI-Z016I0

Feature	Specifications	Unit
Size	12.3	inch
Technology Type	a-si TFT
Resolution	1920(RGB)x720
Pixel pitch	~	mm
Pixel arrangement	RGB-stripe
Color Depth	262K/16.7M
Display Mode	TFT,Transmissive,Normally black
Driver IC	~
Surface Treatment	`
Viewing Direction	IPS
Gray Viewing Direction	`
LCM (W x H x D) (mm)	308.79(W)×128.85(H)×8.6(D) mm	mm
Active Area(mm)	292.032(W)×109.512(H) mm	mm
Touch Panel	Support CTP/RTP
Brightness	300-800	nits
Weight (g)	`	g
Interface	LVDS 40pin Connector
Operation Temperature	-20~70	℃
Storage Temperature	-30~85	℃
Module lifetime(Hours)	50,000-100,000	℃

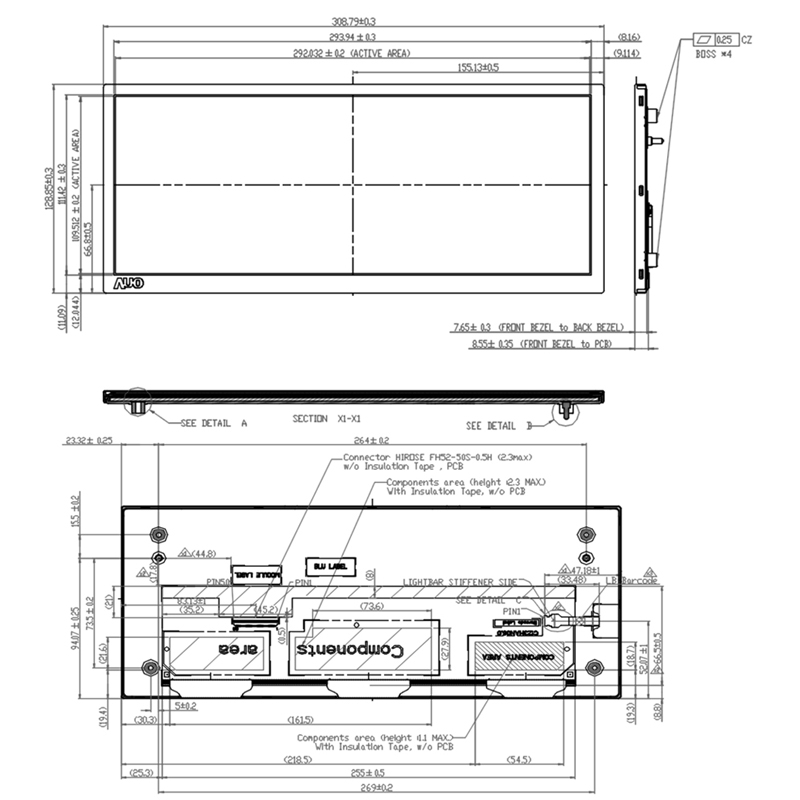

Structural Size of 12.3 Inch IPS TFT LCD

W123C40H1LI-Z016I0

12.3 Inch IPS TFT LCD
