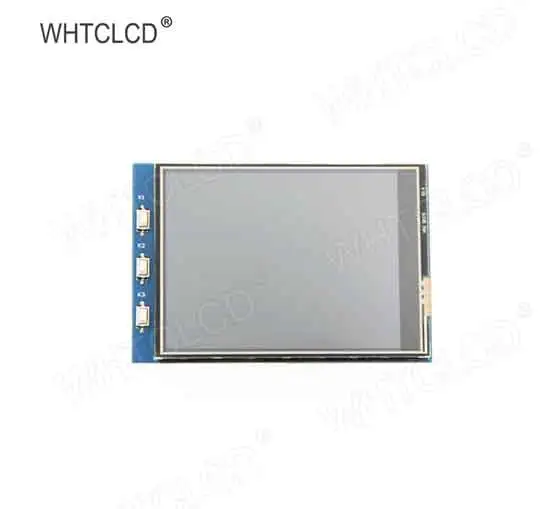

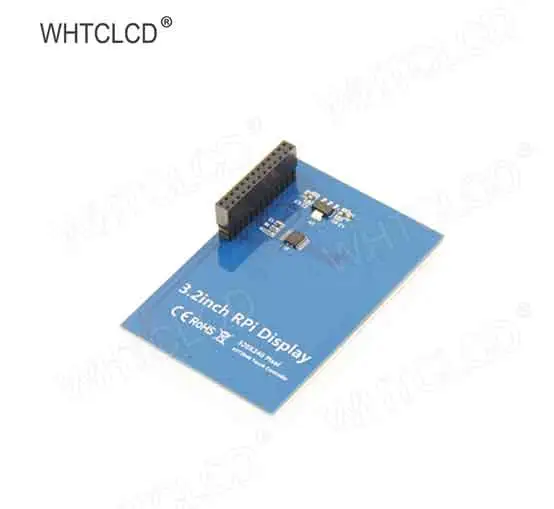

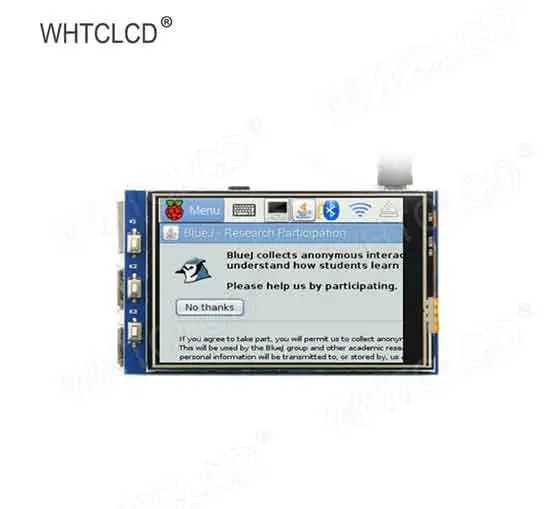

MPI3201 3.2 Inch Raspberry Pi LCD

Name: MPI3201 3.2 Inch Raspberry Pi LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

320×240 resolution. Resistive touch control. Supports any revision of Raspberry Pi (directly-pluggable). Compatible with Raspberry Pi A, B, A+, B+, 2B, 3B, 3B+versions. Drivers provided (works with your own Raspbian/Ubuntu directly). Size perfectly fits the Raspberry Pi. High quality immersion gold surface plating. Supports Raspbian system, Ubuntu system, Kali Linux system.

Products

Parameters of 3.2 Inch Raspberry Pi LCD

Raspberry Pi GPIO Display
Remark: All Models Support Capacitive or Resistive Touch Panel.
Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
3.2	240*320	MPI3201	TN	SPI	56.5484.916	48.6*64.8	NC	RTP	0.15A*5V	-20~60°C

SKU	MPI3201
LCD Type	TFT
LCD Interface	SPI
Driver IC	ILI9341
Touch Screen Type	Resistive
Touch Screen Controller	XPT2046
Colors	65536
Backlight	LED
Resolution	320*240 (Pixel)
Aspect Ratio	8:5
Active Area	48.6*64.8(mm)
Dimensions	84.91*56.54(mm)
Power Dissipation	0.15A*5V
Rough Weight(Package containing)	54 (g)

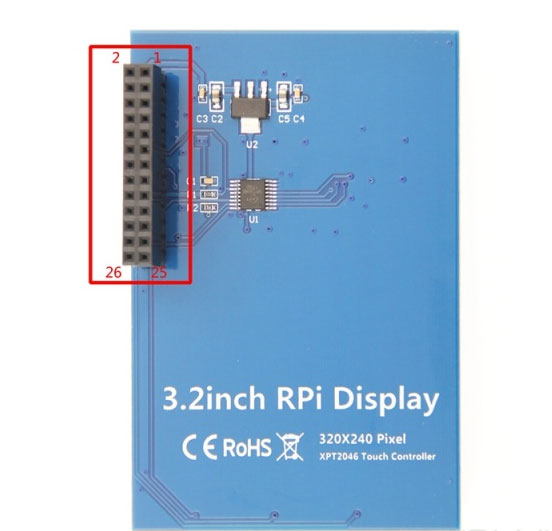

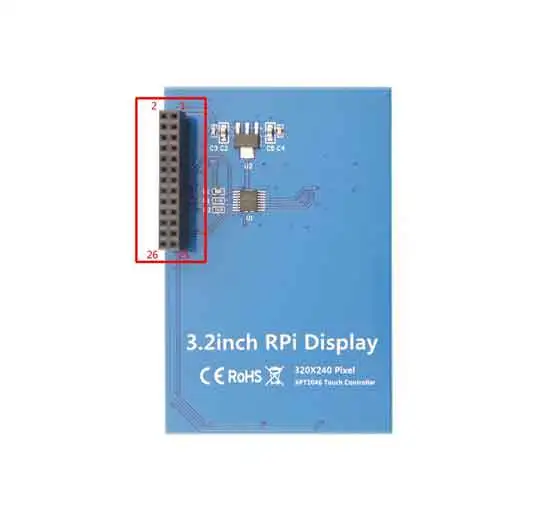

Hardware Description of 3.2 Inch Raspberry Pi LCD

stm32 eval boards

PIN NO.	SYMBOL	DESCRIPTION
1, 17	3.3V	Power positive (3.3V power input)
2, 4	5V	Power positive (5V power input)
3, 5, 7, 8, 10, 22	NC	NC
6, 9, 14, 20, 25	GND	Ground
11	TP_IRQ	Touch Panel interrupt, low level while the Touch Panel detects touching
12	KEY1	Key
13	RST	Reset
15	LCD_RS	LCD instruction control, Instruction/Data Register selection
16	KEY2	KEY
18	KEY3	KEY
19	LCD_SI / TP_SI	SPI data input of LCD/Touch Panel
21	TP_SO	SPI data output of Touch Panel
23	LCD_SCK / TP_SCK	SPI clock of LCD/Touch Panel
24	LCD_CS	LCD chip selection, low active
26	TP_CS	Touch Panel chip selection, low active

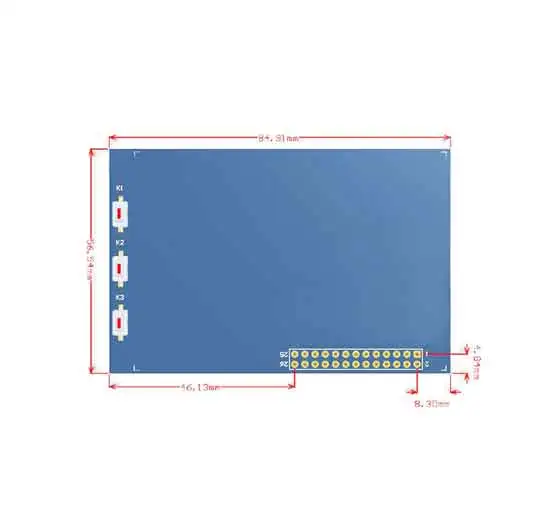

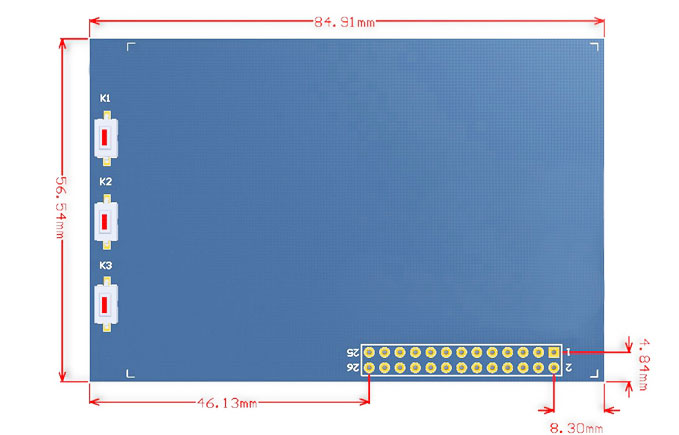

Product Size of 3.2 Inch Raspberry Pi LCD

stm32 evaluation board
