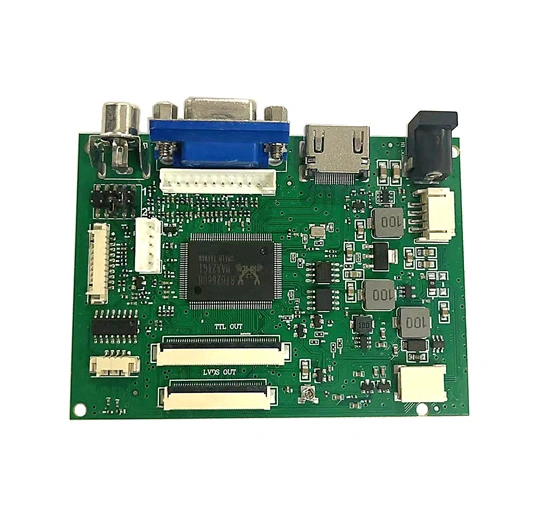

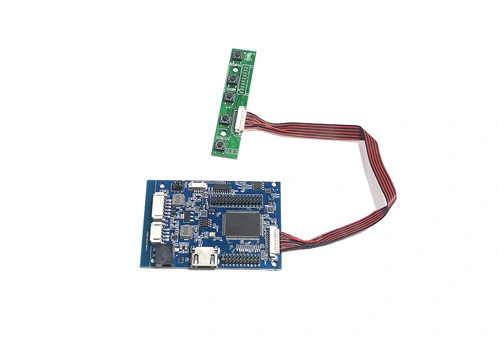

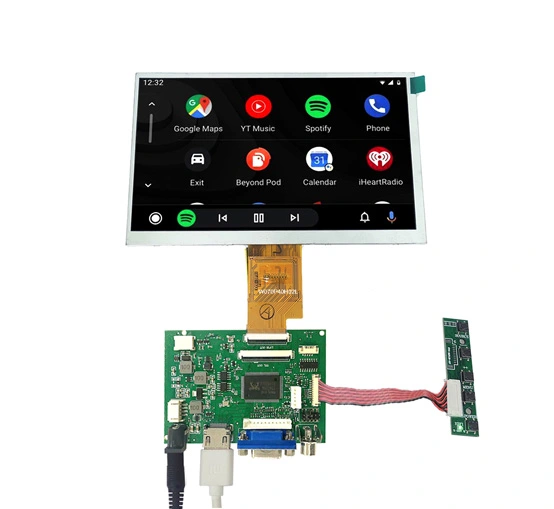

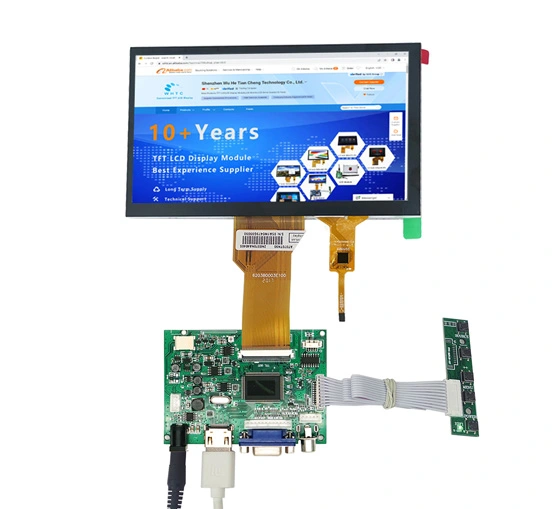

PCB800809 LVDS LCD Controller Board

Parameters of PCB800809 LVDS LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
6	PCB800809	AV / VGA / HDMI Signal input; Supports multiple resolutions, With sound output, Supports 7 / 8 / 9 / 10.1 inch LCD screen	LVDS 40pin / RGB TTL 50pin	NO	DC 5~18V

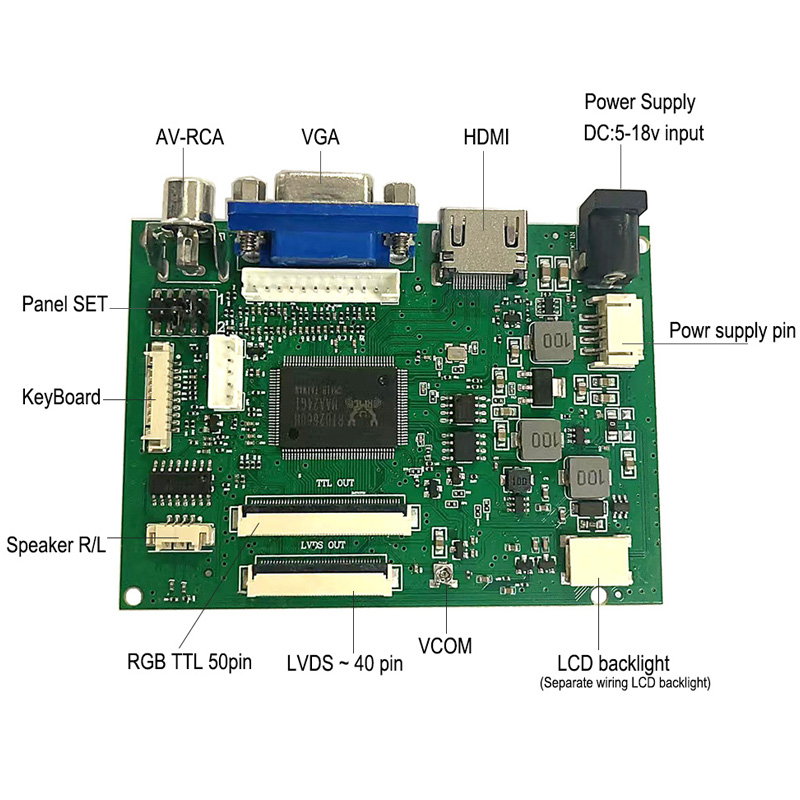

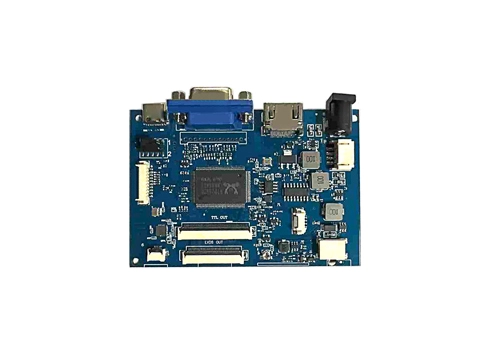

General Specifications of PCB800809 LVDS LCD Controller Board

Supports more than 12 different LCD screen resolution settings, and more will be added in the future. . .
1. 1 channel VGA signal input
2. 2 AV signal inputs
3. 1 HDMI signal input, and this IC supports HDMI1.2
4. 1 channel reversing signal input
5. Supports wide voltage input and can work normally between 4.5V-18V.
6. Support TTL50PIN definition
7. The driver board integrates the LCD screen LED backlight driver board circuit.
8. Support 40PIN-LVDS definition
9. Standard keypad interface and supports dual-color LED indicator display
10. Support TTL signal output,
Can support
ZJ050NA-08C, EJ050NA-08C, AT070TN92, AT065TN14, AT080TN52, AT090TN12, AT090TN1, AT070TN90, AT070TN93, AT070TN94, etc., universal 50PIN interface TTL LCD screen, matched with our company's PCB800602 adapter board
It can effectively support Hancai, AUO, Tianma, BOE, Zhonghua and other common 60PIN defined TTL interfaces, for example,
HSD070IDW1,A070VW04,A080SN01,A104SN01,HSD084IDW1, etc.,
11. 40PIN definition supports the following LCD screens
EJ070NA01-1024X600 resolution
EJ080NA04B-1024X768 resolution
ZJ070NA01, model universal 40PIN high-resolution LCD screen
EJ101NA-01G, EJ080NA-01E, EJ080NA-04C, etc.
12. With PCB800100, it can also support 4.3, 5, 6, 7-inch, 40PIN universal screens. For definition, please refer to AT043TN24V,1
13. The maximum output display resolution of this driver board is 1920X1080. When the display resolution exceeds 1440X900, it is necessary to add a heat sink depending on the working conditions of the IC to reduce the operating temperature of the IC)
14 ICs, support VGA, and HDMI port upgrade
15. This driver board can add remote control function (needs to be realized through software)
16. This driver board can automatically detect and display relevant input voltage information ----- Note, this function is a customized function, you need to contact our company's technical department
17. This driver board can support automatic signal detection and on/off functions. This function is a customized function.
18. This driver board can add a BNC interface---needs customization
19. Supports reverse control and displays on AV2 that the reverse voltage supports voltage input within 50V.
20. This drive plate has four positioning holes.
21. If there are special requirements, our company can provide other customized services.
22. If the customer needs to change the program, he needs to contact our company and purchase the relevant program download board.
23. Using the company's USB interface program download board, you can add the LOGO to the BIN code by yourself

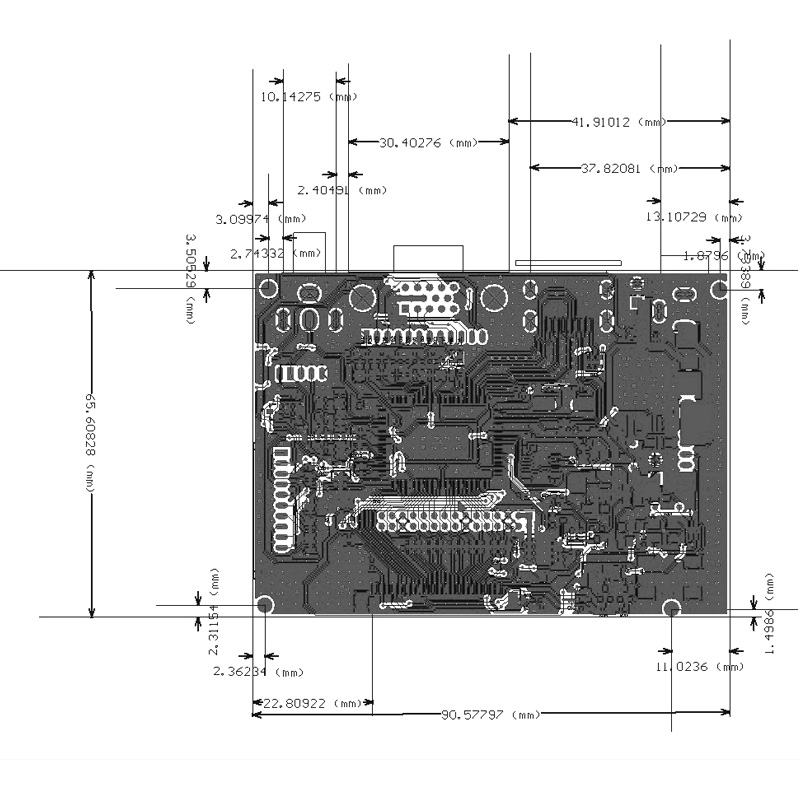

Structural Size of PCB800809 LVDS LCD Controller Board

PCB800809 LVDS LCD Controller Board

Want to Get More Details About LCD Products?

We're waiting for your contact! Original LCD Display manufacturer, covering an area of over 2,000 square meters, with more than 10 years of industry experience. Professional R&D Team and sales team. We possess a variety of software copyrights and utility patents certificates, which can provide you with more customized solutions and SDK solutions.

The message you fill in is just to tell our sales engineers your requirements and the support you need, so that they can help you better, we will not disclose any of your information, please donot worry!



Tel:

0755-25695467


E-mail:

sales@cntftlcd.com


Address:

2F, Building C, Banwei Garden, No. 17, Yongxiang East Road, Bantian Street, Shenzhen, Guangdong, China

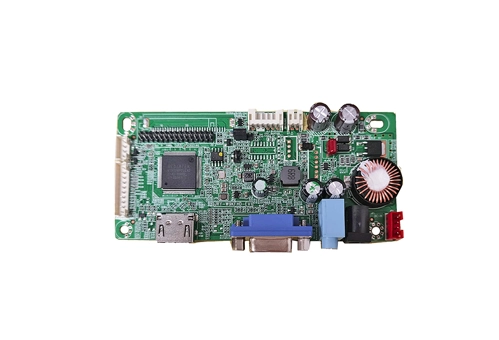

Other LVDS LCD Controller Board Products
