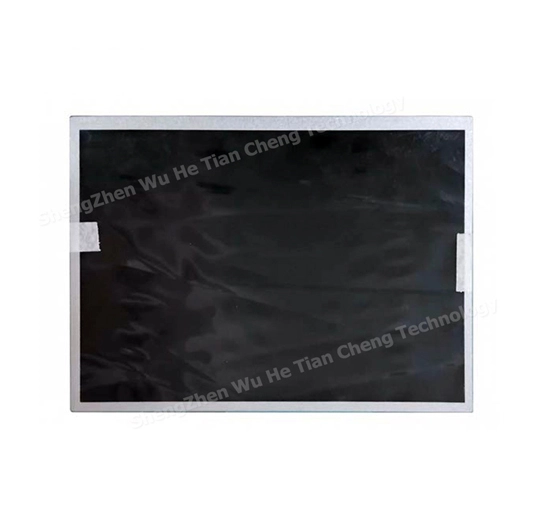

R213UCE-L02 21.3 Inch INNOLUX LCD Panel

Name: R213UCE-L02 21.3 Inch INNOLUX LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Innolux 21.3 inch tft lcd ips panel R213UCE-L02 with 1600(RGB)x1200 UXGA resolution, brightness 1000 cd/m²(High Brightness), 30 pins LVDS. This lcd display's working temperature is 0 ~ +50 (°C) and it's storage temperature is -20 ~ +60 (°C). Based on it's white LED backlight. This model is recommended for medical and Outdoor Highlight.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of R213UCE-L02 21.3 Inch INNOLUX LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
21.3	1600*1200	R213UCE-L02	45735019.29	432*324	IPS	LVDS	1000	-0~50°C

General Specifications of R213UCE-L02 21.3 Inch INNOLUX LCD Panel

R213UCE-L02

Manufacturer	Innolux
Model Name	R213UCE-L02
Screen Size	21.3 inch
Pixel Number	1600(RGB)×1200 , UXGA
Active Area(mm)	432 × 324 (H×V)
Outline(mm）	457 × 350 × 19.29 (H×V×D)
Pixel Pitch(mm)	0.27 × 0.27 (H×V)
Treatment	Anti-glare, hardness 3H
Luminance	1000 cd/m² (Typ.)
Contrast Ratio	1800 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (CR≥10) Left / Right/UP /Down
Response time	8/8 (Typ.)(Tr/Td) ms
Display Mode	AAS , normally black
Color Depth	262K/16.7M , 50% NTSC
Backlight	WLED, 50K hours, with LED Driver
Net Weight	2.18Kgs
Touchscreen	without
Signal Type/interface Type	LVDS (2 ch, 8-bit) , 30 pins
Voltage Supply	+12.0 V
Max. Ratings	Storage Temp.: -20 ~ +60 (°C)
Max. Ratings	Operating Temp.: 0 ~ +50 (°C)
Package	Innolux Original package;
	5 pcs/ctn;
	weight : 13.7Kgs;
	size : 532(L) x 283(W) x 488(H) mm
