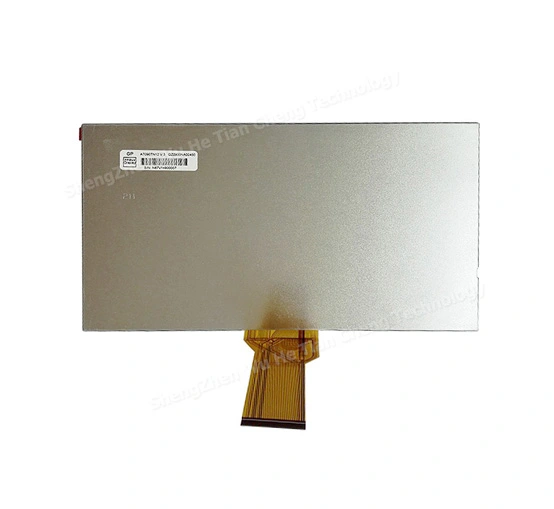

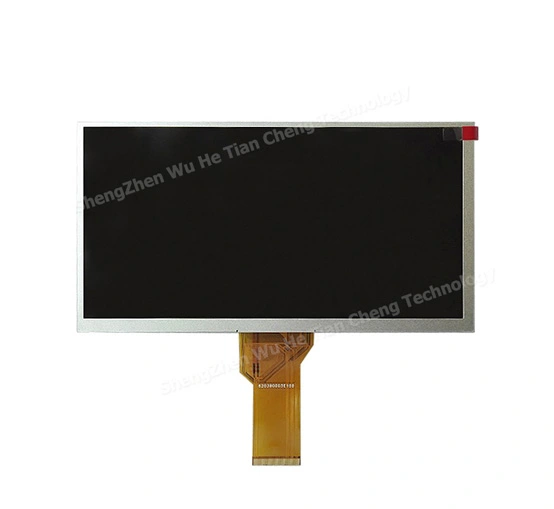

AT090TN12 V.3 9.0 Inch INNOLUX LCD Panel

Innolux 9 inch tft lcd panel AT090TN12 V.3 with 800(RGB)x480 WVGA resolution, brightness 250 cd/m². This lcd display is working temperature is -20 ~ +70 (°C) and its storage temperature is  -30 ~ +80 (°C). Based on its white LED backlight.This model is recommended for industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.


Products

Parameters of AT090TN12 V.3 9.0 Inch INNOLUX LCD Panel

Size(inch)ResolutionModelLCM Dimension(mm)Active Area(mm)ViewInterfaceLuminance(cd/m2)OP(℃)
9800*480AT090TN12 V.3211.1*126.5*5.9198*111.696TNRGB250-20~70°C



General Specifications of AT090TN12 V.3 9.0 Inch INNOLUX LCD Panel

ManufacturerINNOLUX
Model NameAT090TN12 V.3
Screen Size9 inch
Pixel Number800(RGB)×480 , WVGA
Active Area(mm)198.000 x 111.696 (H×V)
Outline(mm）211.1 x 126.5 x 5.9 (H×V×D)
Pixel Pitch(mm)0.0825 x 0.2372 (H×V)
TreatmentAnti-Glare
Luminance250 cd/m² (Typ.)
Contrast Ratio500 : 1 (Typ.) (TM)
Viewing Angle70/70/50/70(CR≥10) Left / Right/UP /Down
Response10/15 (Typ.)(Tr/Td) ms
Work ModeTN , Normally white, Transmissive
Color Depth262K/16.7M , 50% NTSC
BacklightWLED , 20K hours, without Driver
Net Weight253g
Touchscreenwithout
Signal Type/interface TypeTTL (1 ch, 6/8-bit) , FPC , 50 pins
Voltage Supply+3.3V
Max. RatingsStorage Temp.: -30 ~ +80 (°C)
Operating Temp.: -20 ~ +70 (°C)
PackageInnolux original package;
30 pcs/ctn
