ND-EDP-141 EDP LCD Controller Board

Parameters of ND-EDP-141 EDP LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
1	ND-EDP-141	HDMI Signal input; Supports multiple resolutions, With sound output, Supports 10.1~17.3 inch LCD screen	EDP 30pin	NO	DC+5V

General Specifications of ND-EDP-141 EDP LCD Controller Board

Model: ND-EDP-141

1 HDMI signal input

2 Signal output supports EDP 30pin interface LCD screen

3 Power input: DC: 12V

4 Multi functional OSD Operations

5 With remote control function(optional)

Model	ND-EDP-141
Signal source	HDMI
output interface	EDP 30pin
MAX Resolution support	1200*1920（60~75Hz）
Power input	Type-c +5V
Operation Temperature	-10℃～+60℃
Working humidity	90%RH
Storage temperature	-20℃～+70℃
Save humidity	90%RH
screen size	10.1 inch, 13.3 inch, 14 inch, 15.6 inch, 17.3 inch
A sxreen that Can be driven	10.1 inch, 13.3 inch, 14 inch, 15.6 inch, 17.3 inch EDP 30pin LCD Screen

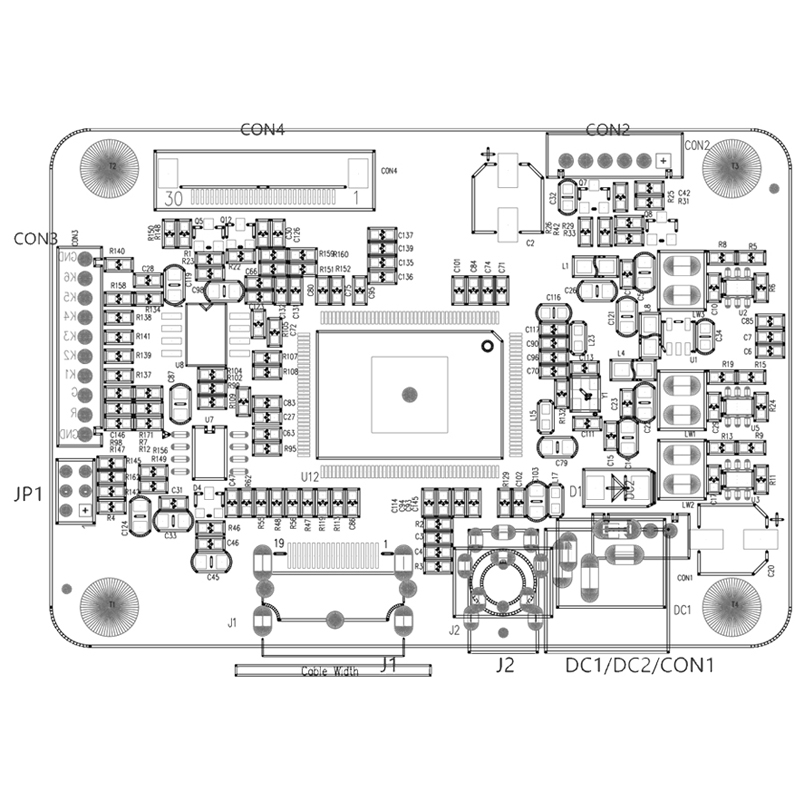

Structural Size of ND-EDP-141 EDP LCD Controller Board

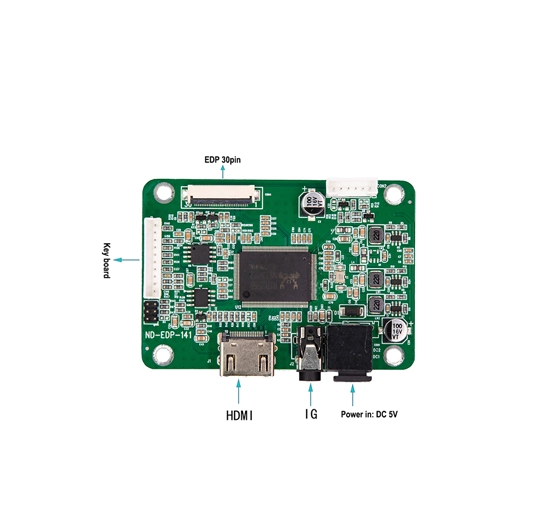

ND-EDP-141 EDP LCD Controller Board
