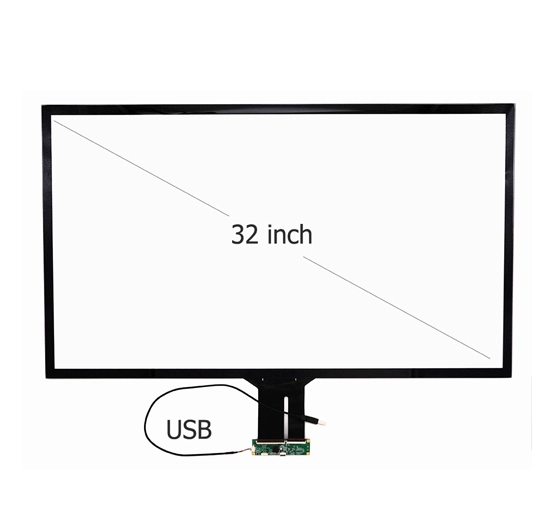

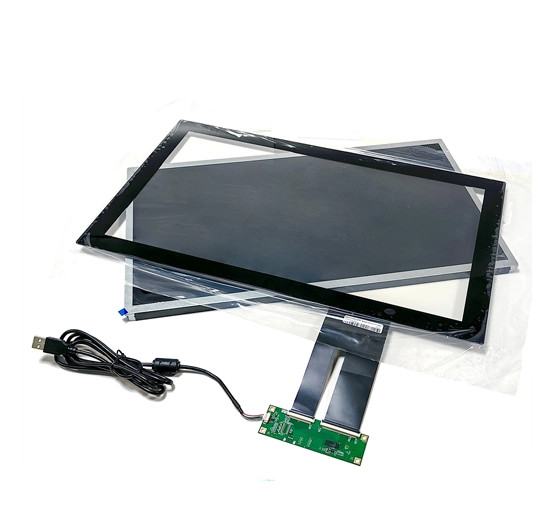

RXC-GG320094A-1.0 32 Inch Capacitive Touch Screen

ShenZhen Wu He Tian Cheng provides capacitive touch screens with G+G, G+F, G+F+F, G+P and other structures, supporting various customization requirements, including glass cover color LOGO silk screen, single point multi touch, cable shape, cover through-hole transparent hole IR hole, AG/AR/AF surface treatment, waterproof, glove style, etc. Suitable for various industrial control, medical, and facial recognition product fields.


Products

Parameters of 32 Inch Capacitive Touch Screen

SizeModelOutline(mm)View Area(mm)Drive IC
32RXC-GG320094A-1.0725.2*422.7*5.35697.40*391.85ILI2312M



General Specifications of 32 Inch Capacitive Touch Screen

FeatureSpecificationsUnit
ModelGG320094A-1.0inch
Technology TypeG+G
Resolution4096 X4096
CTP (W x H x D) (mm)725.2*422.7*5.35mm
View Area(mm)697.40*391.85mm
Touch PanelCTP
Drive ICGT911nits
transmittance>80%
Surface hardness6Hg
InterfaceUSB
Operation Temperature-10~60℃
Storage Temperature-20~70℃
Module lifetime(Hours)50,000-100,000℃

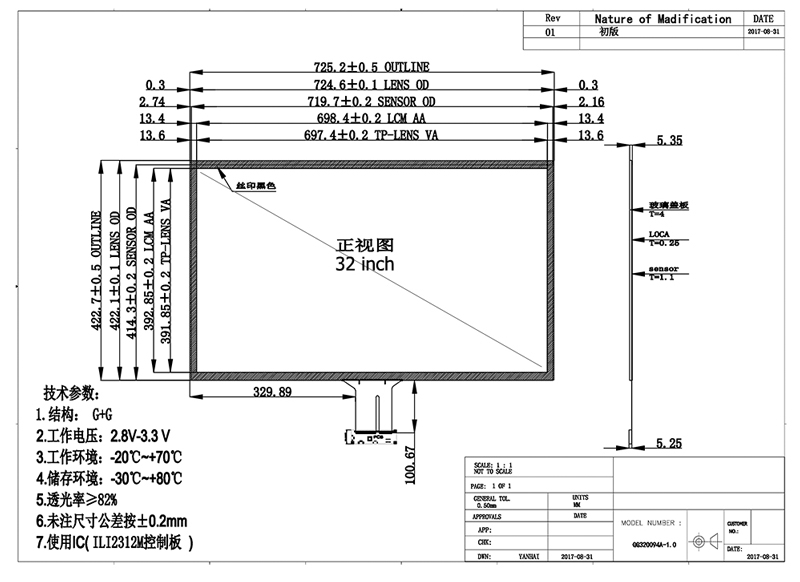

Structural Size of 32 Inch Capacitive Touch Screen

32 Inch Capacitive Touch Screen
