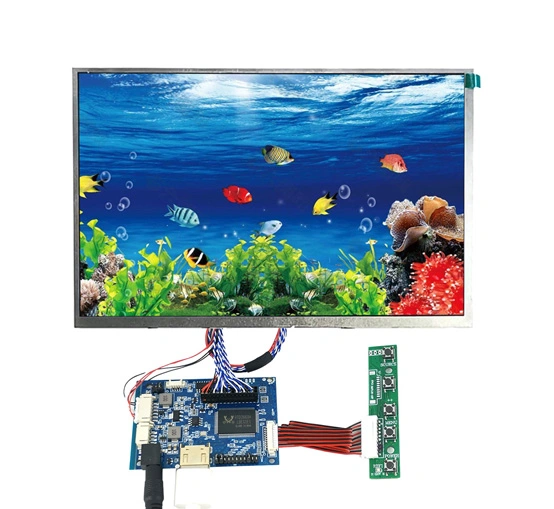

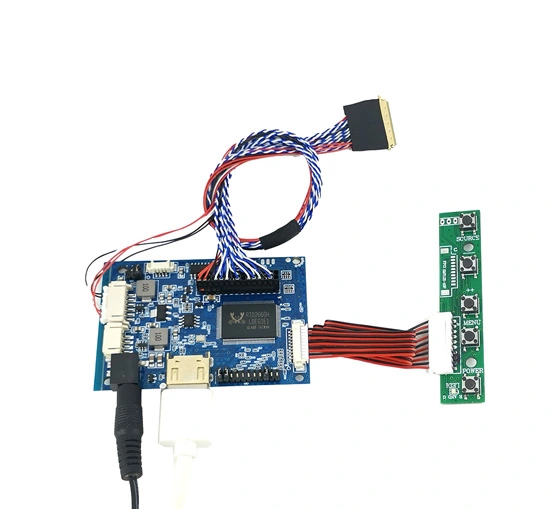

PCB800661 V.9 LVDS LCD Controller Board

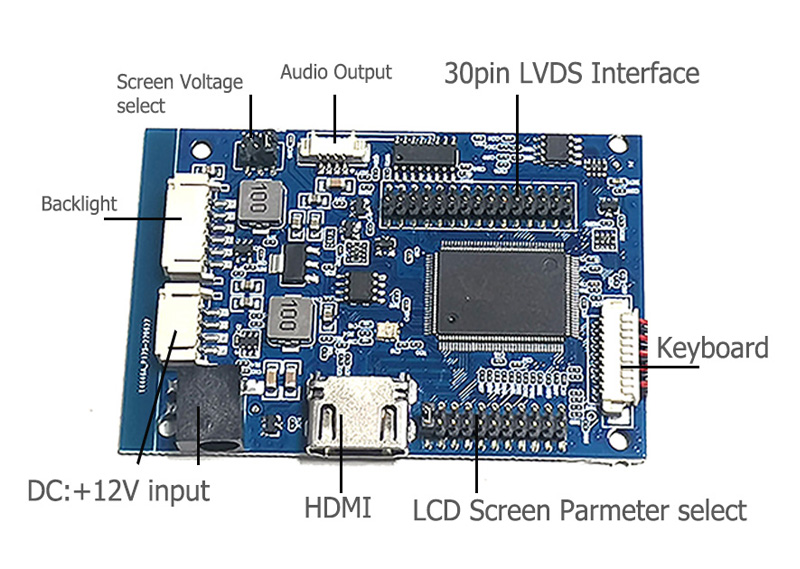

Parameters of PCB800661 V.9 LVDS LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
5	PCB800661 V.9	HDMI Signal input; Supports multiple resolutions, With sound output, Supports 7 / 8 / 9 / 10.1 inch LCD screen	LVDS 40pin	NO	DC12V

General Specifications of PCB800661 V.9 LVDS LCD Controller Board

1. One HDMI signal input, and this IC supports HDMI 1.2

2. Supports wide voltage input and can operate normally between 9V-15V,

3. Standard backlight 6-pin, interface, can be connected to an external high-voltage board

4. Standard LVDS signal output: LCD screens that support standard LVDS signals such as single 6, single 8, double 6, and double 8. LCD screens that support 3.3V, 5V, and 12V power supply, with a maximum supported resolution of 1920x1440

5. Standard keypad interface and support dual color LED indicator display

6. To support TTL signal output, we need to add our company's PCB800181 adapter board to support the following LCD screens

Can support AT070TN92,

AT065TN14

AT080TN52

AT090TN12

AT090TN10

AT070TN90

AT070TN93

AT070TN94 and other TTL LCD screens with a universal 50 pin interface

7. In conjunction with our company's PCB800182 LCD screen adapter board, it can support the following LCD screens

EJ070NA01-1024x600 resolution

EJ080NA04B-1024x768 resolution

ZJ070NA01, a universal 40pin high-resolution LCD screen model

8. The maximum output display resolution of this driver board is 1920x1080. When the display resolution exceeds 1440x900, it is necessary to add heat sinks depending on the working condition of the IC to reduce its operating temperature

9. This driver board can add remote control function (which needs to be implemented through software)

10. There are four positioning holes on this drive board, with a size of 3MM

11. If there are special requirements, our company can provide other customized services

12. The customer needs to modify the program and needs to connect to our company to purchase the relevant program download board,

13. Using our company's USB interface program download board, you can add logos to BIN code by yourself

14. Supports HDMI audio amplifier output, it is recommended to choose speakers with 8 ohms and 1W power

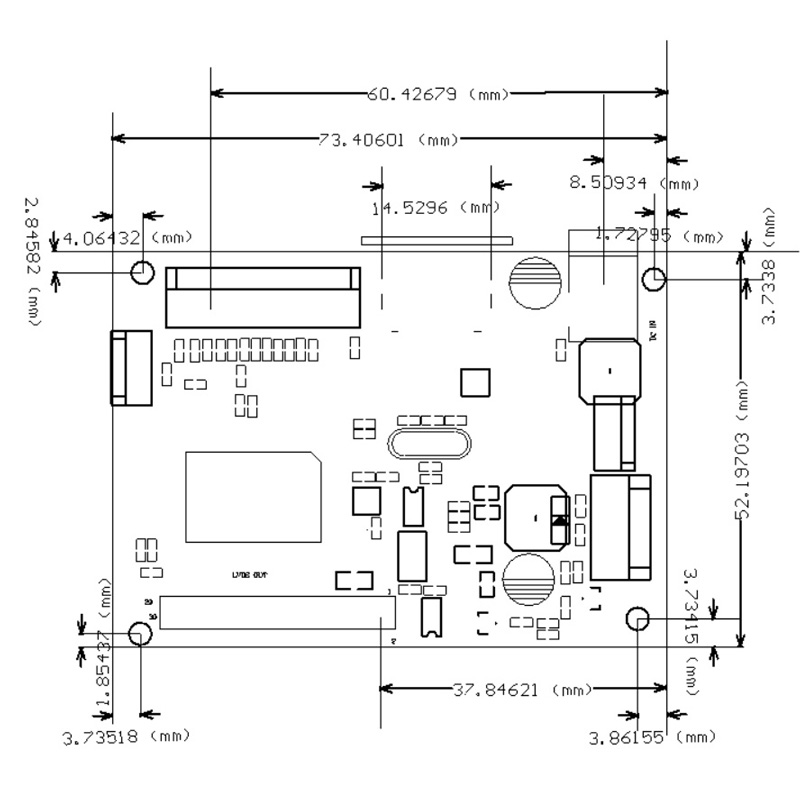

Structural Size of PCB800661 V.9 LVDS LCD Controller Board

PCB800661 V.9 LVDS LCD Controller Board
