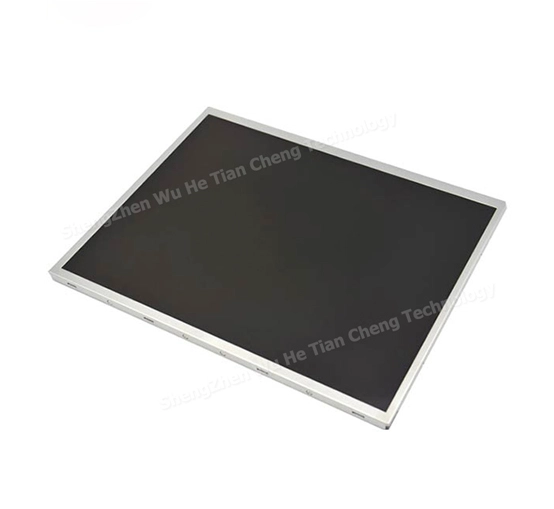

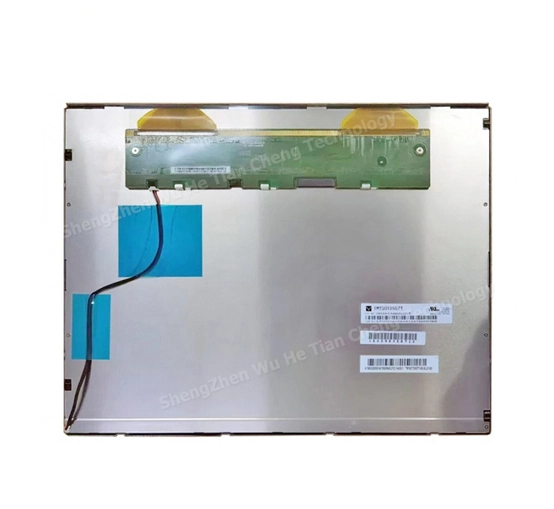

TM150TDSG71 15.1 Tianma LCD Panel

Name: TM150TDSG71 15.1 Tianma LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

TIANMA 15 inch tft lcd panel TM150TDSG71 with 1024(RGB)×768 XGA resolution, brightness 450 cd/m². This lcd display is working temperature is -20 ~ +70 (°C) and its storage temperature is -30 ~ +80 (°C). Based on its white LED backlight. This model is recommended for industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of TM150TDSG71 15.1 Tianma LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
15	1024*768	TM150TDSG71	328.5253.511.8	304.128*228.096	IPS	LVDS	450	-20~70°C

General Specifications of TM150TDSG71 15.1 Tianma LCD Panel

Manufacturer	TIANMA
Model Name	TM150TDSG71
Screen Size	15 inch
Pixel Number	1024(RGB)×768 , XGA
Active Area(mm)	304.128 x 228.096 (H×V)
Outline(mm）	328.5 x 253.5 x 11.8 (H×V×D)
Pixel pitch(mm)	0.297 x 0.297 (H×V)
Treatment	Anti Glare
Luminance	450 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80(CR≥10) Left / Right/UP /Down
Response	8 (Typ.)(Tr/Td) ms
Work Mode	TN , Normally white, Transmissive
Color Depth	262K/16.7M , 62% NTSC
Backlight	WLED , 50K hours, with LED Driver
Net Weight	1.00Kgs
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6/8-bit) , 20 pins
Voltage Supply	3.3V
Max. Ratings	Storage Temp.: -30 ~ +80 (°C)
Max. Ratings	Operating Temp.: -20 ~ +70 (°C)
Package	TIANMA Original Package;
	10 pcs/ctn;
	weight : 12.1 Kgs
	size : 438(L)mm x 402(W)mm x 464(H)mm
