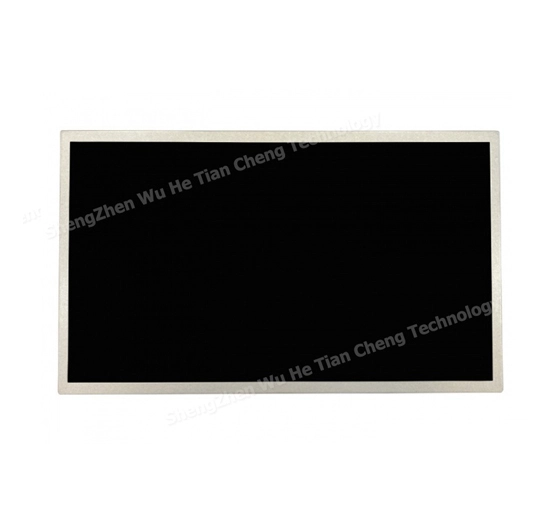

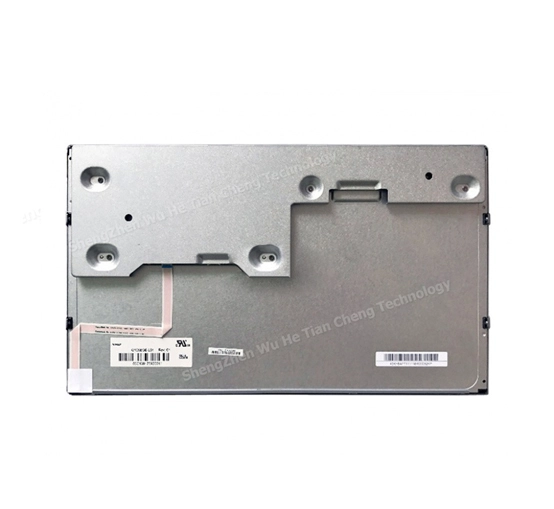

G156BGE-L01 15.6 Inch INNOLUX LCD Panel

Name: G156BGE-L01 15.6 Inch INNOLUX LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Innolux 15.6 inch IPS TFT LCD Panel G156BGE-L01 with 1366(RGB)x768 WXGA resolution, brightness 300 cd/m², LVDS 30pin. This lcd display is working temperature is 0 ~ +60 (°C) and it's storage temperature is -20 ~ +60 (°C). Based on it's white LED backlight. This model is recommended for industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G156BGE-L01 15.6 Inch INNOLUX LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
15.6	1366*768	G156BGE-L01	363.8215.9216.85	344.232*193.536	IPS	LVDS	300	-20~70°C

General Specifications of G156BGE-L01 15.6 Inch INNOLUX LCD Panel

G156BGE-L01

Manufacturer	Innolux
Model Name	G156BGE-L01
Screen Size	15.6 inch
Pixel Number	1366(RGB)×768 , WXGA
Active Area(mm)	344.232 x 193.536 (H×V)
Outline(mm）	363.8 x 215.92 x 16.85 (H×V×D)
Pixel Pitch(mm)	0.252 x 0.252 (H×V)
Treatment	AG type, 3H hard coating
Luminance	300 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (CR≥10) Left / Right/UP /Down
Response time	3/7 (Typ.)(Tr/Td) ms
Display Mode	TN , Normally white, Transmissive
Color Depth	16.7M , 65% NTSC
Backlight	WLED, 50K hours, with LED Driver
Net Weight	1.25Kgs
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 8-bit) , 30 pins
Voltage Supply	+5.0 V
Max. Ratings	Storage Temp.: -20 ~ +60 (°C)
Max. Ratings	Operating Temp.: 0 ~ +60 (°C)
Package	Innolux Original package;
	10 pcs/ctn;
	weight : 17.0Kgs;
	size : 465(L) x 362(W) x 314(H) mm
