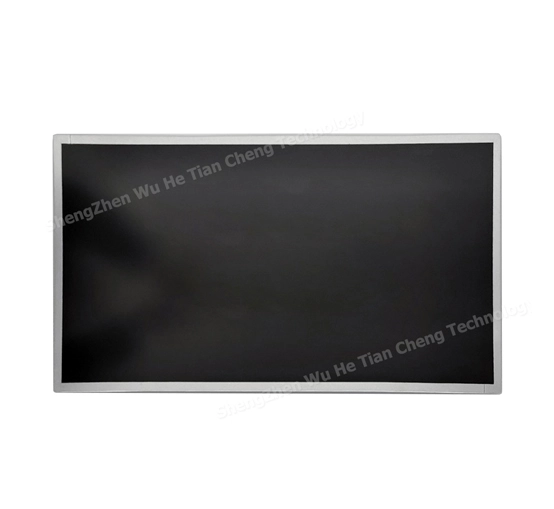

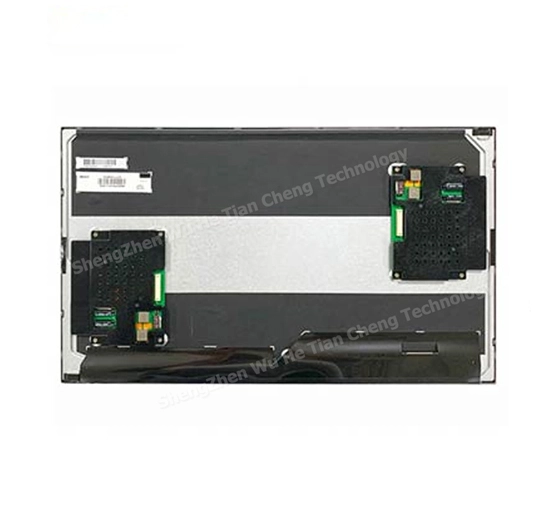

G238HCJ-LH1 23.8 Inch INNOLUX LCD Panel

Name: G238HCJ-LH1 23.8 Inch INNOLUX LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Innolux 23.8 inch IPS TFT LCD Panel G238HCJ-LH1 with 1920(RGB)x1080 Full HD resolution, brightness 1000 cd/m²(High brightness). This lcd display's working temperature is -30 ~ +80 (°C) and it's storage temperature is -40 ~ +80 (°C). Based on it's white LED backlight. This model is recommended for Industrial and outdoor sunlight readable use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G238HCJ-LH1 23.8 Inch INNOLUX LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
23.8	1920*1080	G238HCJ-LH1	543317.419.425	527.04*296.46	IPS	LVDS	1000	-0~50°C

General Specifications of G238HCJ-LH1 23.8 Inch INNOLUX LCD Panel

G238HCJ-LH1

Manufacturer	Innolux
Model Name	G238HCJ-LH1
Screen Size	23.8 inch
Pixel Number	1920(RGB)×1080 , Full HD
Active Area(mm)	527.04 × 296.46 (H×V)
Outline(mm）	543 × 317.4 × 19.425 (H×V×D)
Pixel Pitch(mm)	0.2745 × 0.2745 (H×V)
Treatment	AG type, 3H hard coating, Haze 25
Luminance	1000 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	88/88/88/88 (CR≥10) Left / Right/UP /Down
Response time	14/11 (Typ.)(Tr/Td) ms
Display Mode	AAS , Normally black , Transmissive
Color Depth	16.7M , 74% NTSC
Backlight	WLED , 50K hours , with LED Driver
Net Weight	2.82Kgs
Touchscreen	without
Signal Type/interface Type	LVDS (2 ch, 8-bit) , 30 pins
Voltage Supply	+5.0 V
Max. Ratings	Storage Temp.: -40 ~ +80 (°C)
Max. Ratings	Operating Temp.: -30 ~ +80 (°C)
Package	Innolux Original package;
	10 pcs/ctn;
	weight : 30.4Kgs;
	size : 620(L) x 348(W) x 430(H) mm
