ZJ050NA-08C 5.0 Inch INNOLUX LCD Panel

Name: ZJ050NA-08C 5.0 Inch INNOLUX LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

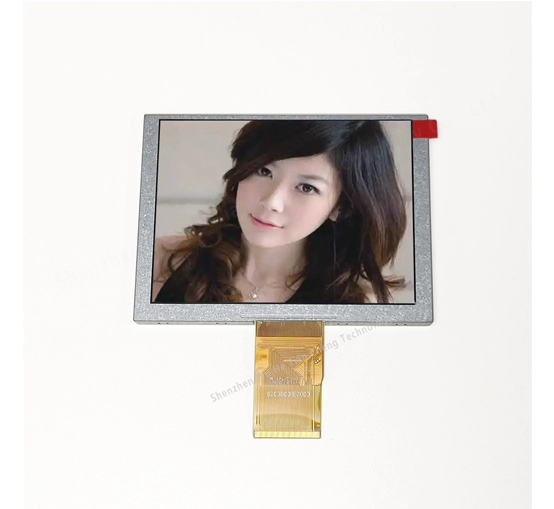

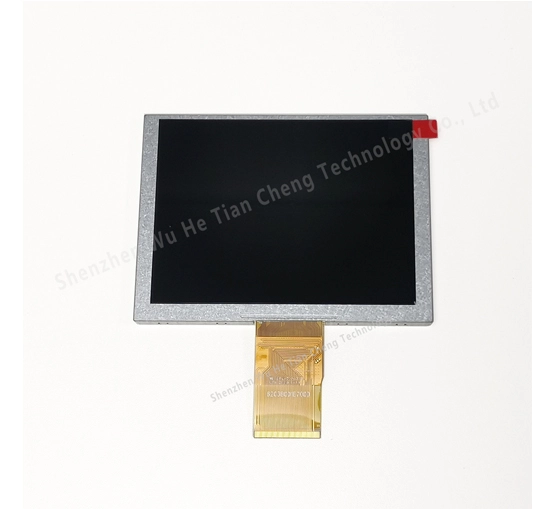

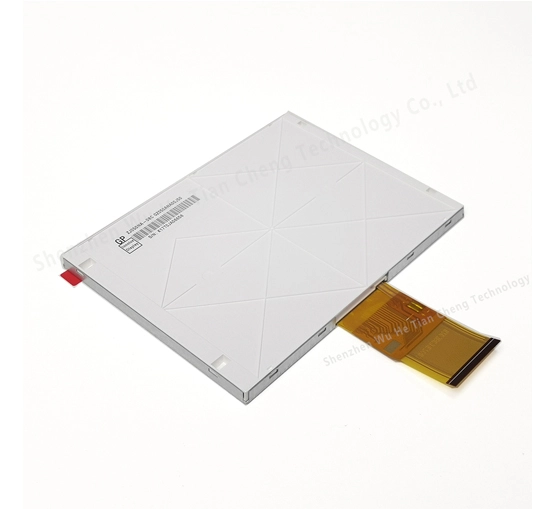

Innolux 5 inch tft lcd panel ZJ050NA-08C with 640(RGB)x480 VGA resolution, brightness 250 cd/m². This lcd display's working temperature is -20 ~ +70 (°C) and it's storage temperature is -30 ~ +80 (°C). Based on it's white LED backlight. This model is recommended for industrial use.

Matched resistive touch and capacitive touch available. Also we have matched LCD driver board.

Products

Parameters of 5.0 Inch INNOLUX LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
5	640*480	ZJ050NA-08C	117.6588.435.9	101.76*76.32	TN	RGB	250	-20~70°C

General Specifications of 5.0 Inch INNOLUX LCD Panel

ZJ050NA-08C

Manufacturer	Innolux
Model Name	ZJ050NA-08C
Screen Size	5 inch
Pixel Number	640(RGB)x480 , VGA
Active Area(mm)	101.76(H) × 76.32(V)
Outline(mm）	117.65(H) × 88.43(V) × 5.9(D)
Treatment	Anti-glare
Luminance	250 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	70/70/50/70 (Typ.)(CR≥10)
Response	10/15 (Typ.)(Tr/Td) ms
Work Mode	TN , Normally white , Transmissive
Color Depth	16.7M , 50% NTSC
Backlight	WLED , 15K hours , without driver
Net Weight	67.0g (Typ.)
Touchscreen	Without
Signal Type/interface Type	Parallel RGB (1 ch, 8-bit) , FPC , 50 pins
Voltage Supply	+3.3 V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ +80 (°C）
Max. Ratings	Operating Temp.: -20 ~ +70 (°C)
Package	Innolux original package;
Package	60 pcs/ctn;

EJ050NA-01G

Manufacturer	Innolux
Model Name	EJ050NA-01G
Screen Size	5 inch
Pixel Number	800(RGB)×480 , WVGA
Active Area(mm)	108 x 64.8 (HxV)
Outline(mm）	120.7 x 76.3 x 3.3 (HxVxD)
Treatment	Plant
Luminance	350 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	70/70/50/70 (Typ.)(CR≥10)
Response	10/15 (Typ.)(Tr/Td) ms
Work Mode	TN , Normally white , Transmissive
Color Depth	16.7M , 50% NTSC
Backlight	20K hours
Net Weight	58.5g (Typ.)
Touchscreen	Without
Signal Type/interface Type	Parallel RGB (1 ch, 8-bit) , FPC , 50 pins
Voltage Supply	+3.3 V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ +80 (°C)
Max. Ratings	Operating Temp.: -20 ~ +70 (°C)
Package	INNOLUX Original Package;
Package	100 pcs/carton;
