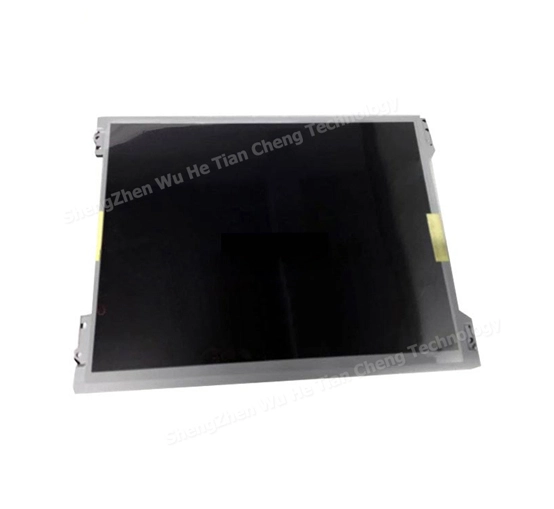

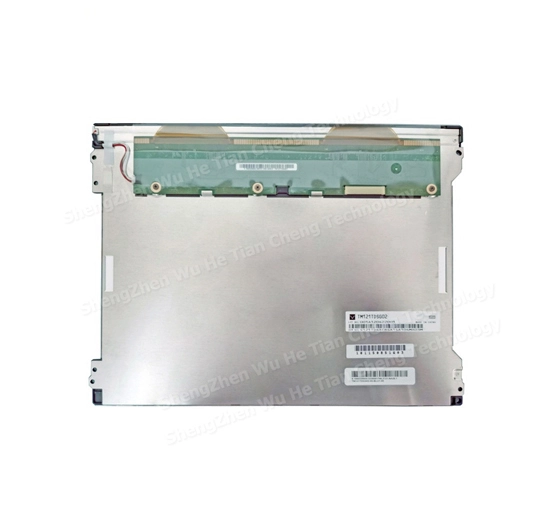

TM121TDSG02-00 12.1 Tianma LCD Panel

Name: TM121TDSG02-00 12.1 Tianma LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

TIANMA 12.1 inch tft lcd panel TM121TDSG02 with 1024x768 XGA resolution , brightness 450 cd/m². This lcd display is working temperature is -20 ~ +70 (°C) and its storage temperature is -30 ~ +80 (°C). Based on its white LED backlight. This model is recommended for industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of 12.1 Tianma LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
12.1	1024*768	TM121TDSG02-00	279.02098.6	245.76*184.32	IPS	LVDS	450	-20~70°C

General Specifications of 12.1 Tianma LCD Panel

TM121TDSG02-00

Manufacturer	TIANMA
Model Name	TM121TDSG02
Screen Size	12.1 Inch
Pixel Number	1024(RGB)×768 , XGA
Active Area(mm)	245.76 x 184.32 (H×V)
Outline(mm）	279.0 x 209.0 x 8.6 (H×V×D)
Pixel Pitch(mm)	0.240 x 0.240 (H×V)
Treatment	Anti-glare
Luminance	450 cd/m² (Typ.)
Contrast Ratio	7700: 1 (Typ.) (TM)
Viewing Angle	80/80/80/80(CR≥10) Left / Right/UP /Down
Response	3/5 (Typ.)(Tr/Td) ms
Work Mode	TN, Normally white, Transmissive
Color Depth	262K/16.7M , 55% NTSC
Backlight	WLED, 50K hours, with LED Driver
Net Weight	483g
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6/8-bit), 20 pins
Voltage Supply	3.3V
Max. Ratings	Storage Temp.: -30 ~ +80 (°C)
Max. Ratings	Operating Temp.: -20 ~ +70 (°C)
Package	TIANMA Original Package
