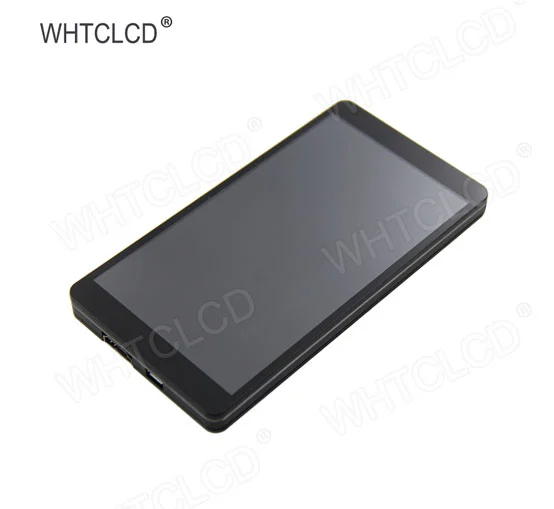

MPI5518 5.5 Inch Raspberry Pi HDMI LCD Display

Name: MPI5518 5.5 Inch Raspberry Pi HDMI LCD Display
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

The 5.5 inch IPS full view display has large visual angle, real color and excellent. image quality. The resolution is 1920x1080, and the display screen is exquisite. The HDMI HD input interface can be used for HDMI display. Independent dial switch, support backlight brightness adjustment. Those supporting mainstream development boards such as Raspberry Pi, bananaPI. and BB black. For raspberry pie display, support Raspberry Pi OS, Ubuntu, Kali, win10 IOT andother systems. It can be used as computer monitor, support Win7 / 8 /10/11 system. Those used as game console display, supporting PS4, XBOX360, switch, etc.

Products

Parameters of 5.5 Inch Raspberry Pi HDMI LCD Display

Raspberry Pi HDMI LCD Display
Remark: All Models Support Capacitive or Resistive Touch Panel.
Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
5.5	800*480	MPI5518	IPS	HDMI	143.475.310.6	120.96*68.04	NC	NC	0.30A*5V	-20~60°C

SKU	MPI5518
Screen Size	5 inch
LCD Type	IPS
Module Interface	HDMI
Resolution	1920*1080 (Pixel)
Active Area	68.04(W)x120.96(H) (mm)
Touch Screen Controller	NC
LCD Driver IC	-
Backlight	LED
power consumption	0.34A*5V
Working temperature（℃）	-20~60
Module PCB Size	143.4x75.3x10.6 (mm)
Package Size	185x108x63 (mm)
Rough Weight(Package containing) (g)	300 (g)

Safety Precautions of 5.5 Inch Raspberry Pi HDMI LCD Display

1. Electricity and Safety

Do not use a damaged power cord or plug, or a loose power socket

Do not touch the power plug with wet hands

Do not let any object compress or wrap the power cord

Please Unplug the power cord when the device is unattended for a long time

Insert the power plug all the way in so it is not loose

2. Installation and Safety

Do not install the product near heat sources

Do not set down the product on its front

Do not install the product on an unstable or vibrating surface (insecure shelf, slopedsurface, etc.)

Do not place the monitor in any Damp area

3. Cleaning Products

Take the following steps when cleaning

1) Power off the product and computer

2) Disconnect the power cord from the product —Hold the power cable by the plug and do not touch the cable with wet hands.

Otherwise, an electric shock may result

3) Wipe the monitor with a clean, soft and dry cloth —Do not apply a cleaning agent that contains alcohol, solvent, or surfactant to themonitor —Do not spray water or detergent directly on the product

4) Wet a soft and dry cloth in water and wring thoroughly to clean the exterior of theproduct

5) Connect the power cord to the product when cleaning is finished

6) Power on the product and computer

Hardware Description of 5.5 Inch Raspberry Pi HDMI LCD Display

stm32 nucleo price

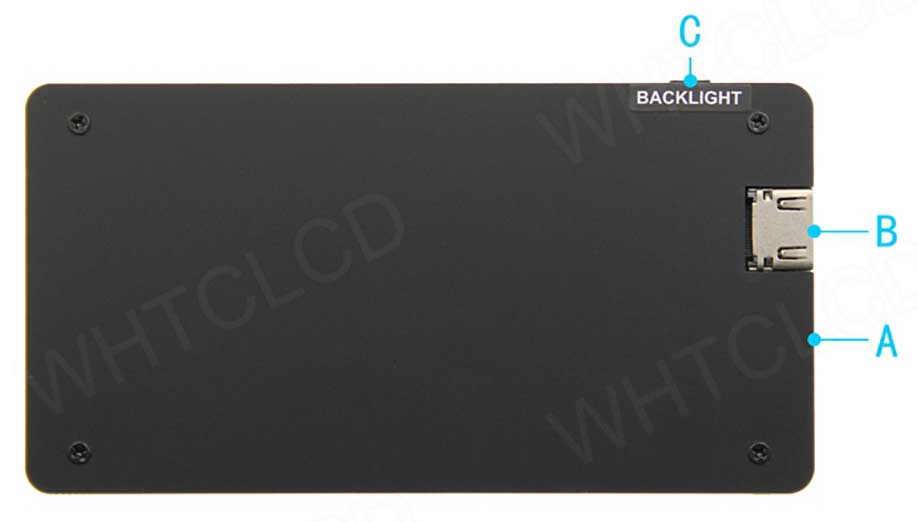

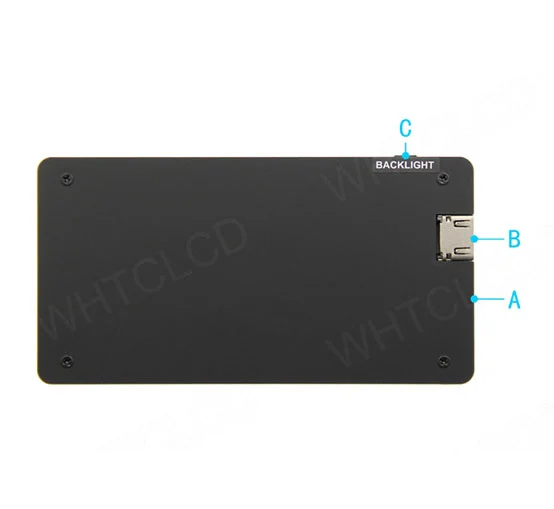

Key and Interface Function Description

A: Power interface, Micro USB cable is used to connect with the signal source device. This interface is used for power supply

B: HDMI interface, Use HDMI cable to connect with signal source equipment, and the maximum supported resolution is 1080p

C: Side key, It is used to adjust the brightness. Press once to increase the brightness by 10%. After reaching 100%, press once again to return to 10%; Long press for 3 seconds to turn off the backlight, press 1 for 10 seconds to increase the brightness by 10%, and then press 1 for 10 seconds to restore the original brightness

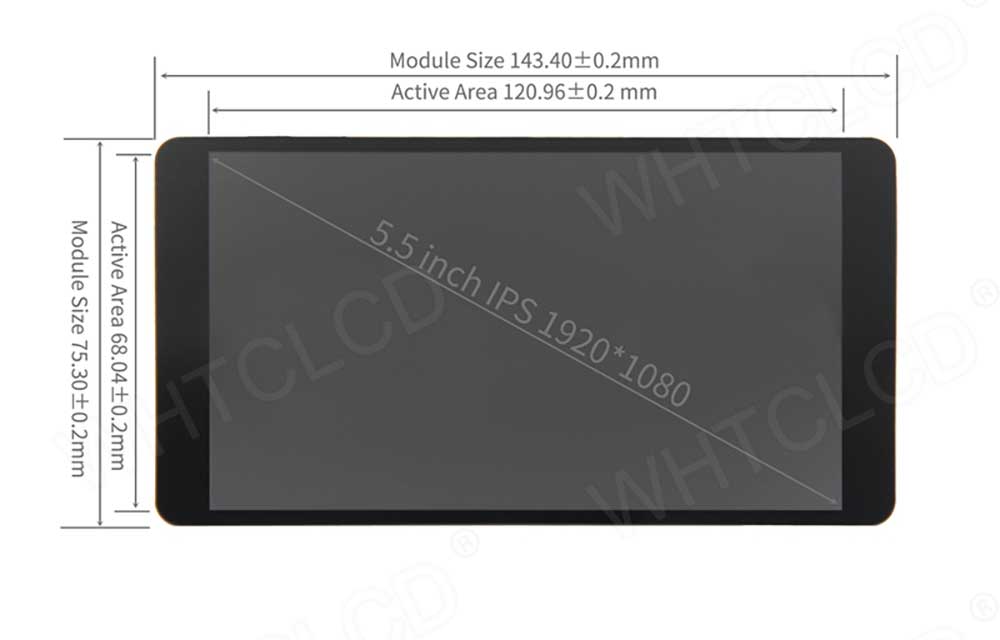

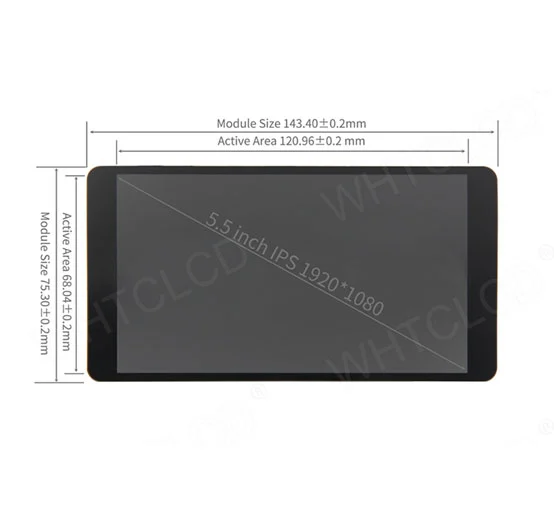

Product Size of 5.5 Inch Raspberry Pi HDMI LCD Display

stm32 price

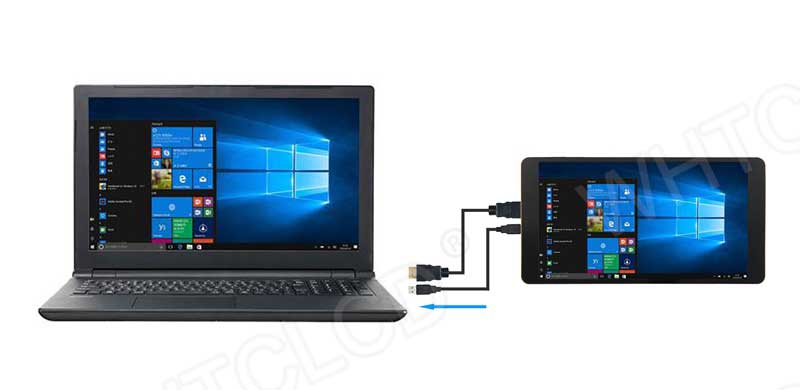

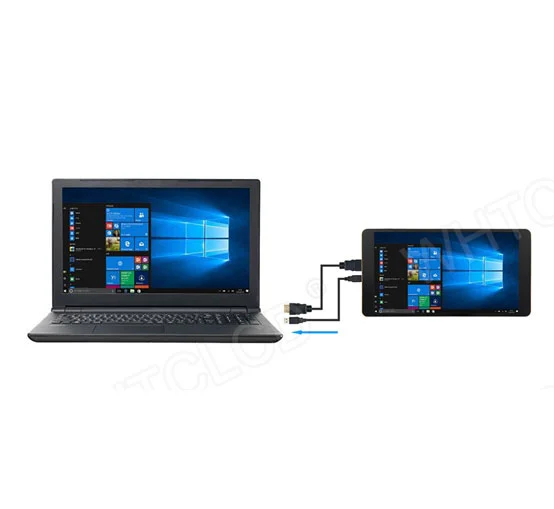

Connect to PC/Laptop of 5.5 Inch Raspberry Pi HDMI LCD Display

stm32 small board

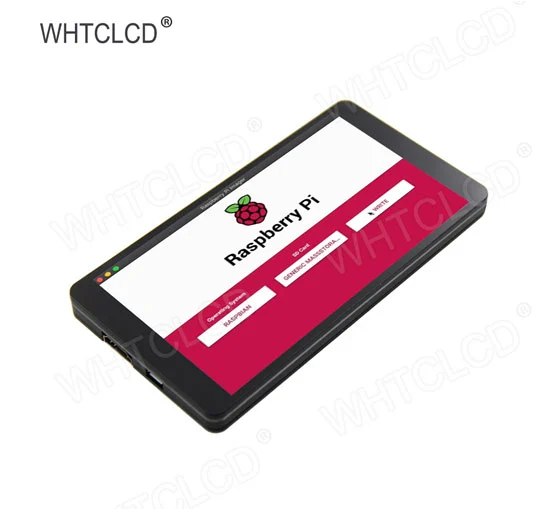

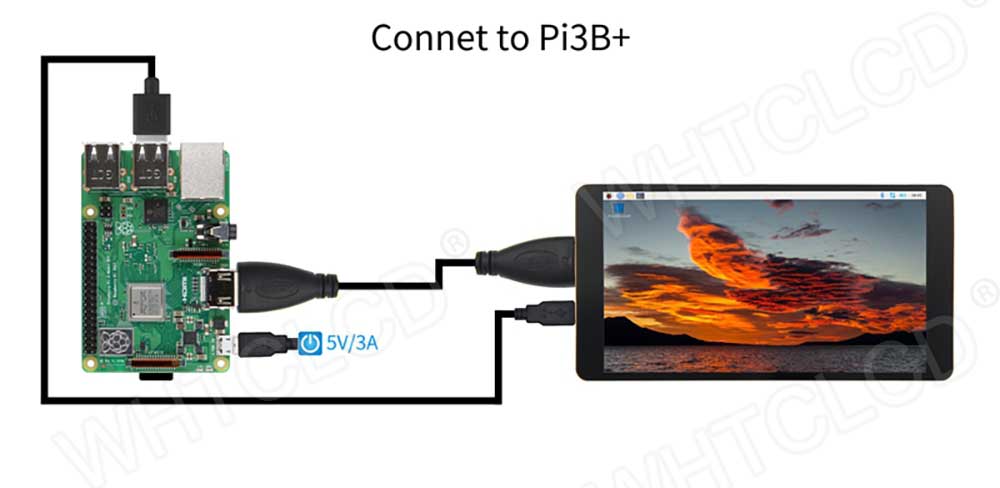

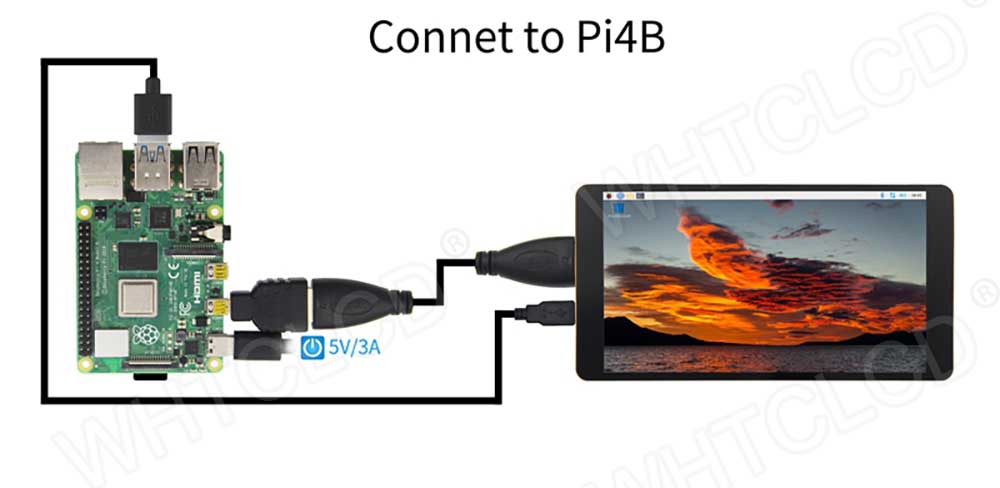

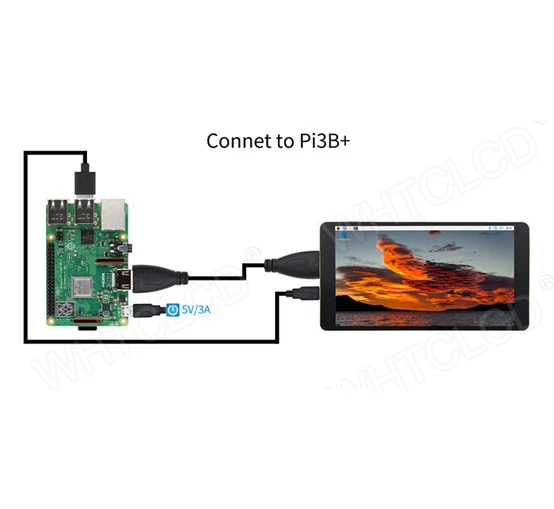

Connect to Raspberry Pi of 5.5 Inch Raspberry Pi HDMI LCD Display

stm32 starter kit

stm32 wifi development board
