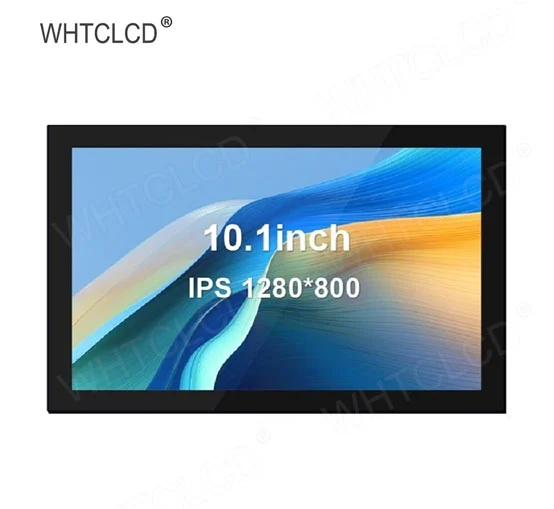

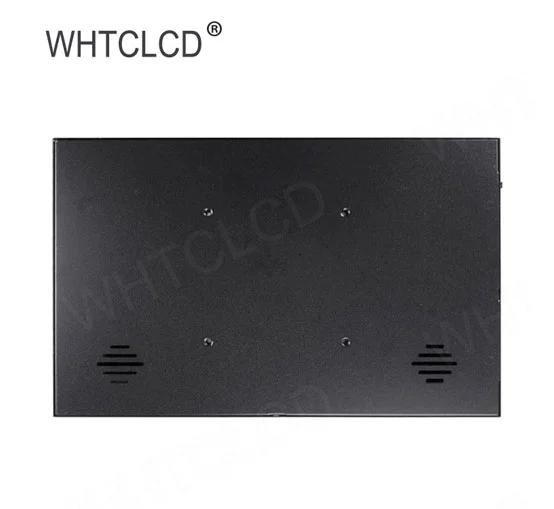

MPI1009 10.1 Raspberry Pi HDMI LCD Display(CTP)

Parameters of 10.1 Raspberry Pi HDMI LCD Display(CTP)

Raspberry Pi HDMI LCD Display
Remark: All Models Support Capacitive or Resistive Touch Panel.
Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
10.1	1280*800	MPI1009	IPS	HDMI	242.5161.211	216.566*135.36	Earphone	CTP	MicroUSB	-20~60°C

SKU	MPI1009
Panel Type	IPS
Panel Size	10.1 inch
Resolution	1280 x 800(RGB) (pixels)
Active Area	216.55(W) x 135.36(H) (mm)
Number of Colors(Max)	16.7M
Pixel Pitch	0.1692 x 0.1692 (mm)
View Angle	ALL 0’ CLOCK
Luminance(TYP)	250 cd/m2
Contrast Ratio(TYP)	1000
Backlight Type	White LED
Backlight Voltage(TYP)	9.0V
Backlight Current(TYP)	180mA
Operation Temperature	-10~50(℃)
Storage Temperature	-20~60(℃)
Backlight Adjustment	Leave switch adjustment
Volume Adjustment	Leave switch adjustment
Touch Screen Type	Capacitive Touch Screen
Touch IC	GT911
Touch Screen Size	241.30(W) x 160.00(H) (mm)
Touch Screen Visual Area	217.34(W) x 136.00(H) (mm)
Power Voltage	5V
Speaker Power	8Ω 2W x 2
Total Power	6.15W (100% brightness, 0% volume)，9W(100% brightness, 100% volume)
Video Input Interface	Mini HDMI & VGA
Audio Output Interface	3.5mm Audio Interface and Stereo speakers
Power Interface	Type-C
Touch Output Interface	Type-C
Outline Size	242.50(W) x 161.20(H) x 10.70(T)(mm)
Package size	295(W) x 195(H) x 70(T) (mm)
Weight(including package)	938(g)

Features of 10.1 Raspberry Pi HDMI LCD Display(CTP)

Own shell

Hard iron shell

10.1inch IPS full Angle display

The viewing Angle is large

true color

Dynamic picture quality is excellent

1280X800 Resolution

HD Vision

Display is very delicate

Software settings, resolution can be increased to 1920X1080

New touch panel

Tempered glass touch panel

Hardness up to 6H, more durable and more scratch resistant

High sensitivity capacitive touch screen

Accurate touch

Supports up to 5 touch points

HDMI and VGA video input interfaces

High definition video display

audio output

Stereo dual speaker output shock sound

3.5mm external audio interface

Multifunctional leave Switch

Support brightness and volume adjustment

Support menu settings

Supports HDMI/VGA video signal switching

Support multiple device access

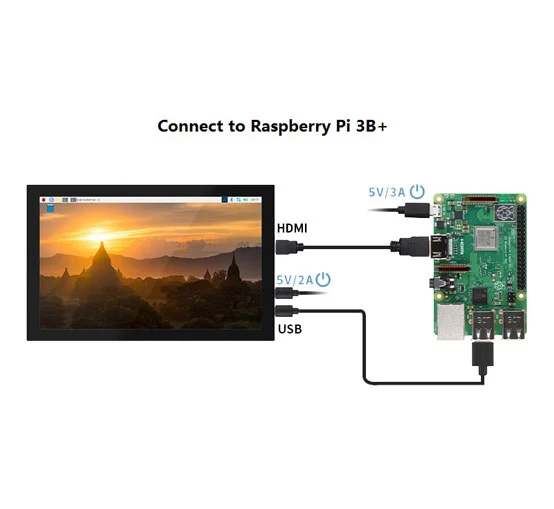

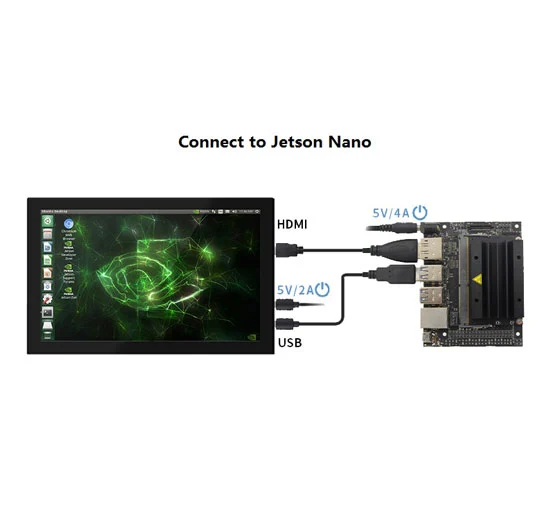

Can connect to mainstream development boards such as Raspberry Pi, Banana Pi, BB Black, etc

Can connect to mainstream game consoles such as PS4, Xbox360, Switch, etc

Can connect to mainstream TV boxes and digital cameras (display only)

Supports multiple system displays

Support systems such as Raspbian, Kali Linux, Ubuntu, Kodi, Win10 IOT, and touch free drive

Support Win7/8/10/11 and other systems, touch free drive

CE and RoHS certified

Hardware Description of 10.1 Raspberry Pi HDMI LCD Display(CTP)

stm32 minimum system development board

Hardware capabilities

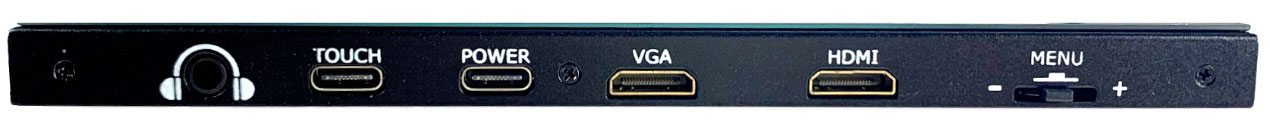

Key and Interface	Description

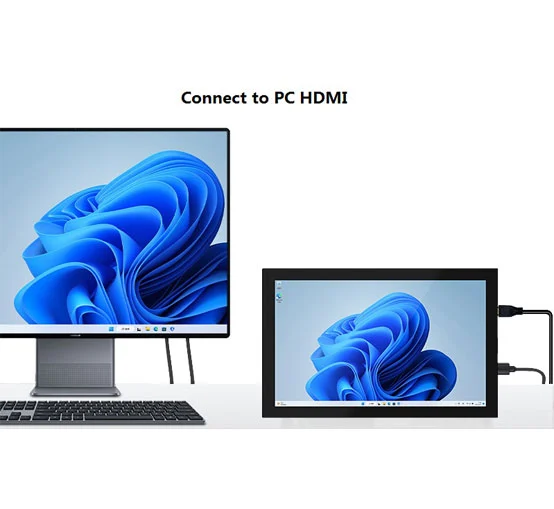

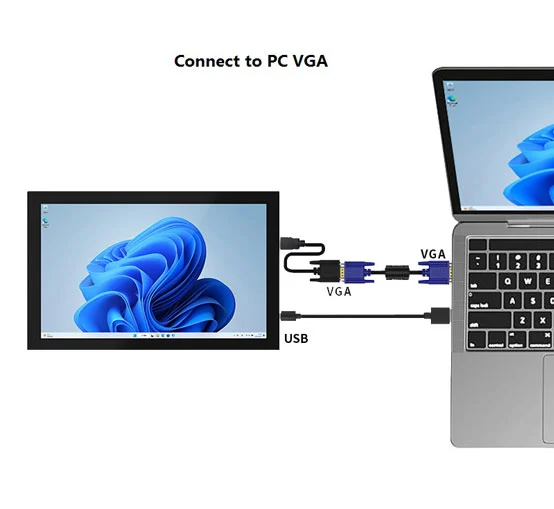

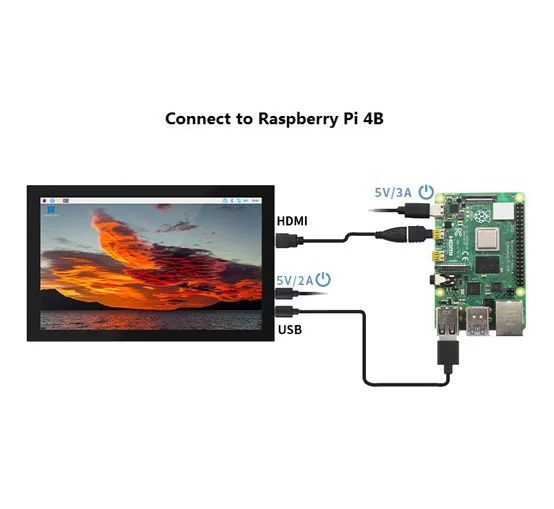

HDMI	Input HDMI signal, connect using Mini HDMI cable, commonly used to connect to a computer, with a maximum support resolution of 1920x1080
VGA	Input VGA signal and connect using Mini HDMI male to VGA female adapter cable
POWER	Connect to the power supply using Type-C cable, only providing power supply function
TOUCH	Output touch signal, connect using Type-C cable, and provide power and touch functions simultaneously
Headphone	3.5mm audio output interface for connecting audio devices, such as headphones or audio systems
MENU	Brightness Adjustment: When there is no setting interface displayed, Move the leave switch up to trigger the brightness setting function, and then move it up and down to adjust the brightness value. After setting, short press the switch to exit or wait for 10 seconds for automatic exit
	Volume Adjustment: When there is no setting interface displayed, Move the leave switch down to trigger the volume setting function, and then move it up and down to adjust the volume value. After setting, short press the switch to exit or wait for 10 seconds for automatic exit
	Menu Setting: When there is no setting interface displayed, short press the leave switch to trigger the menu setting function. After entering the menu, move the switch up and down to select, short press to confirm, long press to return or exit.
	Signal Switching: When there is no setting interface displayed, long press the leave switch to trigger switching of HDMI/VGA input signal.

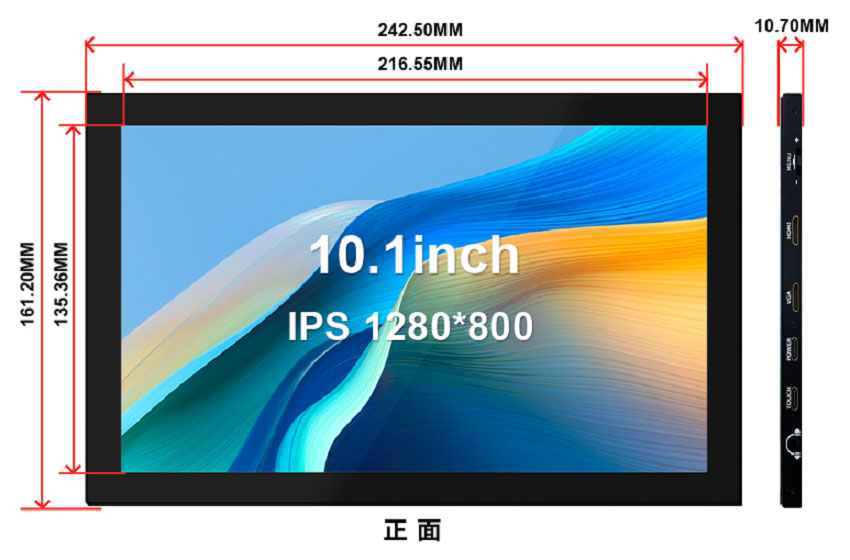

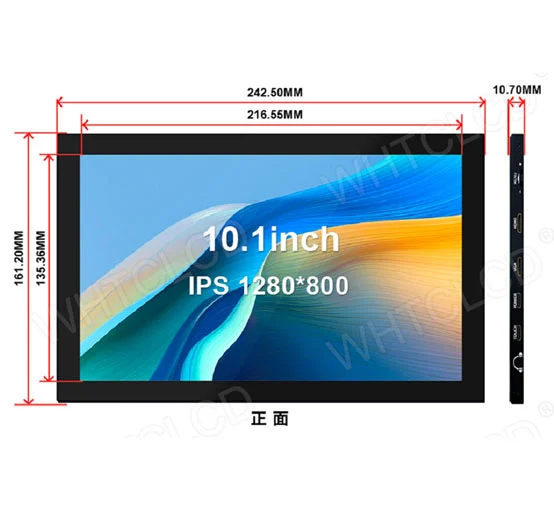

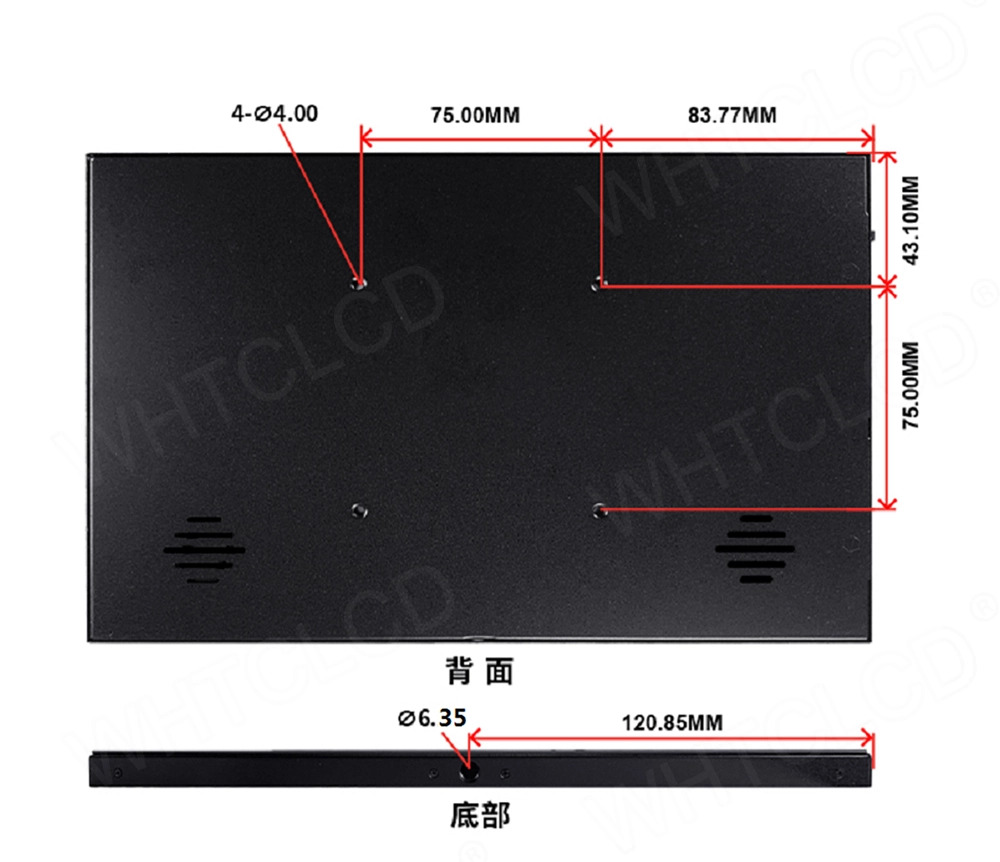

Product Size of 10.1 Raspberry Pi HDMI LCD Display(CTP)
