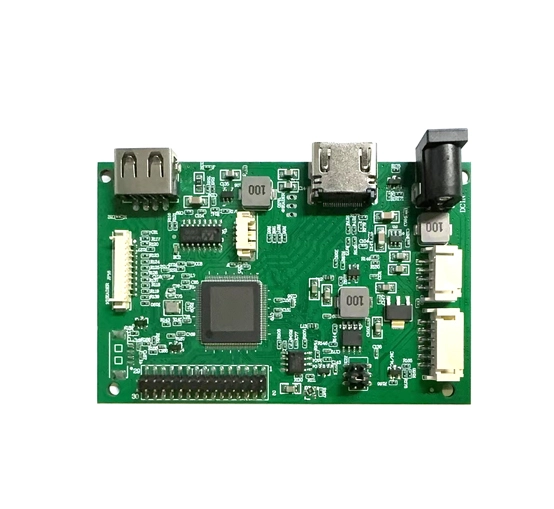

PCB800823 LVDS LCD Controller Board

Parameters of PCB800823 LVDS LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
8	PCB800823	USB / HDMI Signal input; Supports multiple resolutions, With sound output, Supports 7 / 8 / 9 / 10.1 inch LCD screen	LVDS 30pin	NO	DC12V

General Specifications of PCB800823 LVDS LCD Controller Board

1. The driver board is suitable for 12V standard voltage input, with a minimum input of 9V and a maximum power supply of 14V. Exceeding the specified voltage may cause damage to the circuit board and components. Please carefully confirm the input voltage of the power supply

2. 1 USB input (MP5 function), the USB interface can support audio and video playback, image playback, and text playback on a USB flash drive, and can output a current of no more than 500MA to external devices.

3. USB firmware upgrade, (simply place the upgrade file in the first level directory of the USB drive, plug it into the USB of the driver board, power on to upgrade, and it will automatically restart after completion)

4. 1 HDMI input, and this IC supports HDMI 1.4. The HDMI socket uses high-quality gold-plated connectors

5. Supports amplifier output, 8 ohm-2W/4 ohm-2W

6. LVDS standard signal dual channel dual 8BIT signal output

7. Supports screen power supply voltage of 3.3V, 5V, and 12V, with the option to select and support all commonly used specifications of LCD screens

8. 1-channel photoresistor signal input, supporting automatic brightness adjustment

9. 1 human body sensing signal input, requiring an external human body sensing module

10. Standard 5-key keypad interface, and supports dual color LED indicator display

11. The maximum output resolution supports LVDS defined LCD screens up to 1920 * 1200, which can be compatible with our company's LVDS TO EDP in the future,

LVDS to MIPI, LVDS to LVDS LVDS to TTL supports various defined LCD screens

Most of this driver board uses fully surface mounted components
