W070P50S3RI-J05B0 7.0 Inch IPS TFT LCD

Name: W070P50S3RI-J05B0 7.0 Inch IPS TFT LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

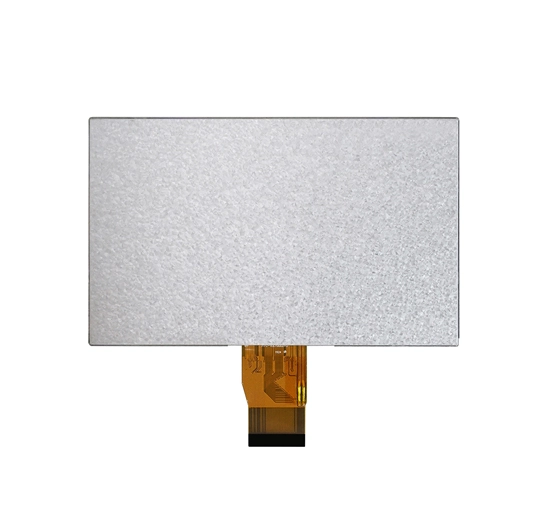

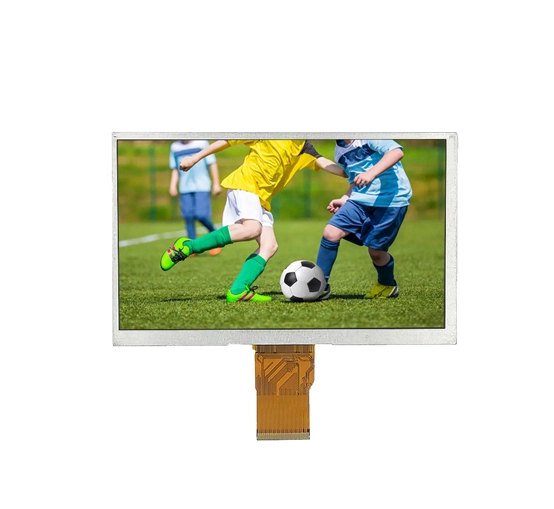

7.0 Inch IPS TFT LCD is a transmissive type color active matrix liquid crystal display this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 154.21 * 85.92 and the native resolution is 800*480 and can display up to 262K/16.7M colors, Applications: wire tester, sphygmomanometer, ECG machine, Robots,Handheld devices, Automotive instrument, recorder and industrial display.

Products

Parameters of 7.0 Inch IPS TFT LCD

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Brightness(nits)	OP(℃)
7	800*480	W070P50S3RI-J05B0	1651005.5	154.08*85.92	IPS	RGB	260~1500	-30~80°C

Interface Pin Connections of 7.0 Inch IPS TFT LCD

W070P50S3RI-J05B0

Pin No.	Symbol	Function
1.2	LED+	LED Anode
3.4	LED-	LED Cathode
5	GND	Ground
6	VCOM	Common Voltage
7	DVDD	Digital Power
8	MODE	DE/SYNC mode select. Normally pull high H: DE mode.L: HSD/vSD mode
9	DEN	Data Enable signal.
10	VSD	Vertical sync input. Negative polarity
11	HSD	Horizontal sync input. Negative polarity
12-19	B7-B0	Blue Data
20-27	G7-G0	Green Data
28-35	R7-R0	Red Data
36	GND	Ground
37	DCLK	Clock signal
38	GND	Ground
39	SHLR	Left or isplay Control
40	UPDN	Up / Down Display Control
41	VGH	Gate on voltage
42	VGL	Gate offvoltage
43	AVDD	Power supply for the analog power
44	RESET	Global reset pin(3.3V)
45	NC	Not connect
46	VCOM	Common Voltage
47	DITH	Dithering setting DITH=”H”6bit resolution(last 2 bit of input data truncated) DITH=”L”8bit resolution(default setting)
48	GND	Ground
49.5	NC	Not connect

General Specifications of 7.0 Inch IPS TFT LCD

W070P50S3RI-J05B0

Feature	Specifications	Unit
Size	7	inch
Technology Type	a-si TFT
Resolution	800(RGB)x480
Pixel pitch	~	mm
Pixel arrangement	RGB-stripe
Color Depth	262K/16.7M
Display Mode	TFT,Transmissive,Normally black
Driver IC	~
Surface Treatment	`
Viewing Direction	IPS
Gray Viewing Direction	`
LCM (W x H x D) (mm)	165(W)x100(H)x3.4(T)	mm
Active Area(mm)	154.21 (W) x 85.92(H)	mm

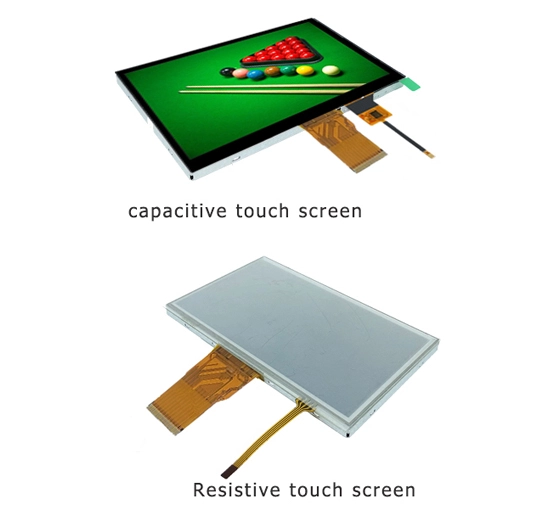

Touch Panel	Support CTP/RTP
Brightness	300~1000	nits
Weight (g)	`	g
Interface	RGB TTL FPC 40pin
Operation Temperature	-20~70	℃
Storage Temperature	-30~85	℃
Module lifetime(Hours)	50,000-100,000	℃
