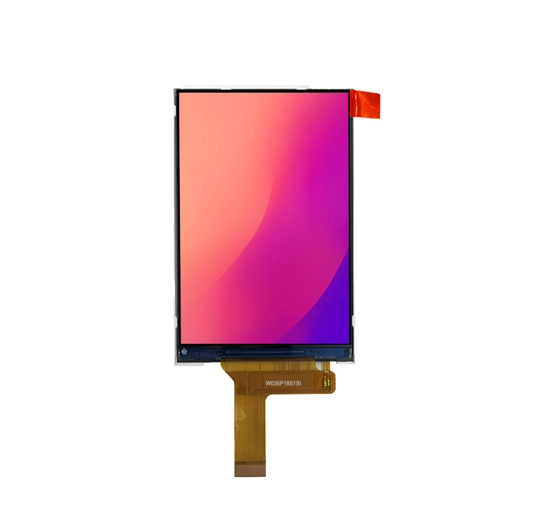

W035P18S1SI-A02H0 3.5 Inch Sunlight Readable LCD Display

Name: W035P18S1SI-A02H0 3.5 Inch Sunlight Readable LCD Display
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

W035P18S1SI is a transmissive type color active matrix liquid crystal display this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 48.96*73.44 and the native resolution is 320*480, Applications: digital watches，wire tester, sphygmomanometer, ECG machine, Robots,Handheld devices.

Products

Parameters of 3.5 Inch Sunlight Readable LCD Display

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Brightness(nits)	OP(℃)
3.5	320*480	W035P18S1SI-A02H0	54.5832.3	48.96*73.44	IPS	SPI	300~1500	-20~70°C

General Specifications of 3.5 Inch Sunlight Readable LCD Display

W035P18S1SI-A02H0

Feature	Specifications	Unit
Size	3.5	inch
Technology Type	a-si TFT
Resolution	320(RGB)x480
Pixel pitch	~	mm
Pixel arrangement	RGB-stripe
Color Depth	262K
Display Mode	TFT,Transmissive,Normally black
Driver IC	ST7796S
Surface Treatment	`
Viewing Direction	ALL
Gray Viewing Direction	`

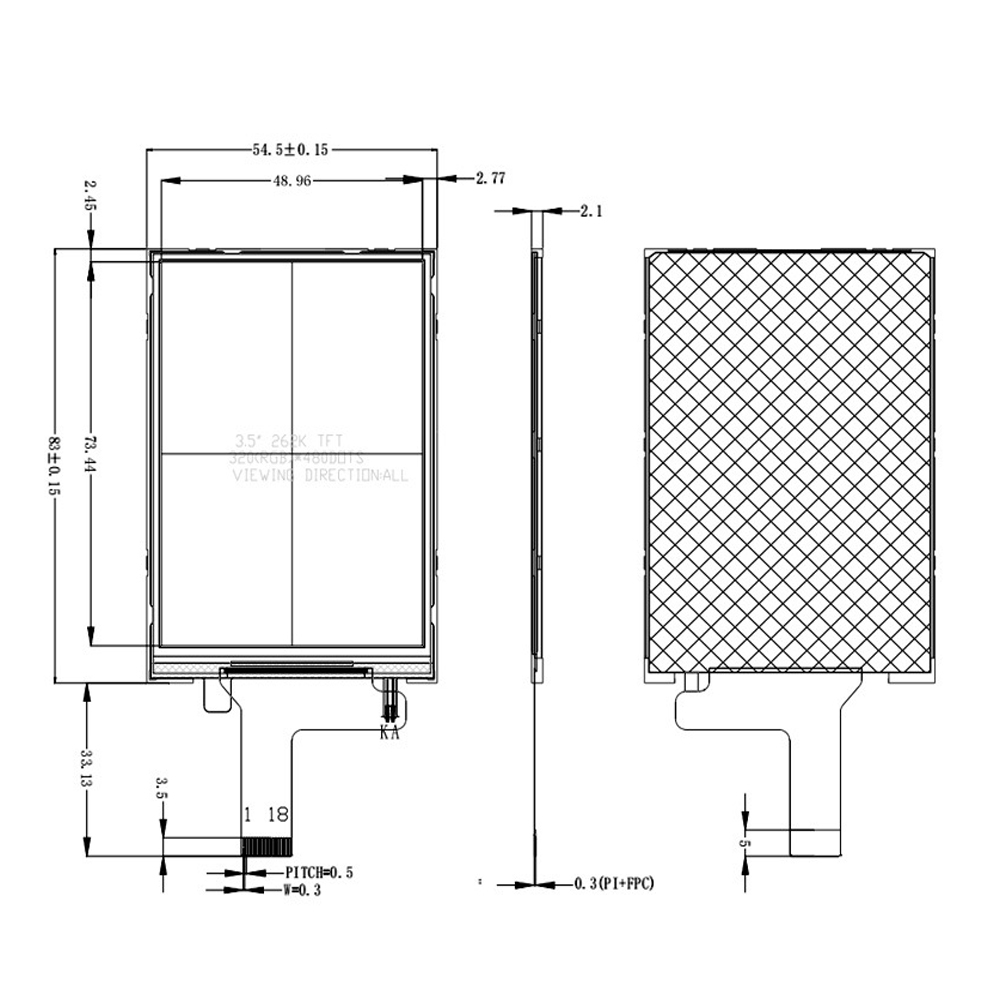

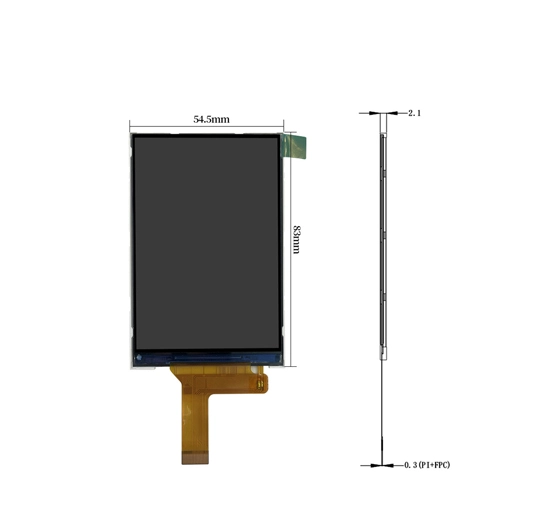

LCM (W x H x D) (mm)	54.5(W)×83(H)×2.1(D) mm	mm
Active Area(mm)	48.96(W)×73.44(H) mm	mm
Touch Panel	Support CTP/RTP
Brightness	300	nits
Weight (g)	16	g
Interface	SPI FPC 18pin
Operation Temperature	-20~70	℃
Storage Temperature	-30~80	℃
Module lifetime(Hours)	50,000-100,000	℃
