W067B30H1MI 6.75 Inch Bar TFT LCD Display

Products

Parameters of 6.75 Inch Bar TFT LCD Display

Size  (inch)ResolutionModelLCM Dimension    (mm)Active Area   (mm)ViewInterfaceBrightness    (nits)OP(℃)
6.75480*1280W067B30H1MI(Bar)66.02*171.69*5.2760.19*160.51IPSMIPI1000-20~70°C


General Infomations of 6.75 Inch Bar TFT LCD Display

W067B30H1MI

ltemSpecificationUnit
LCD size  液晶面板尺寸6.75inch
Display Mode  显示模式Normally Black--
Resolution  分辨率480(RGB)x1280Pixel
Pixel pitch  像素尺寸0.1506(H)×0.1432(V)mm
Pixel Arangement像素排列RGB Vertical Stripe
Viewing direction视角Free-

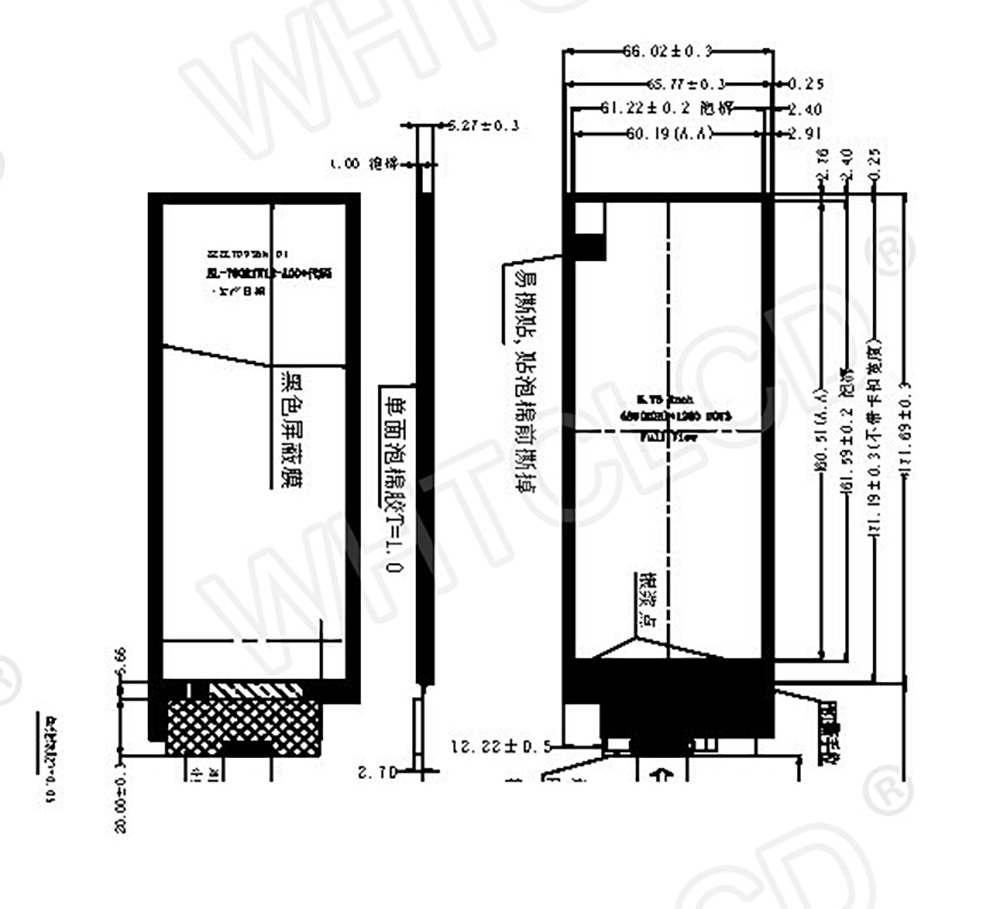

Module outline dimension66.02(H)*171.69 (V)*5.27(D)mm
LCD AA  液晶显示区域60.192(H)*160.51(V)mm
TP VA触摸可视区域
mm
Colors颜色深度16.7M-
Driver IC驱动芯片HX8394F-
Interface  接口类型MIPI--
Backlight背光类型White LED--
Touch IC触摸芯片---
Surface hardness表面硬度
-		--
支持点数
-		--
Touch structure触摸结构---
Cover lens盖板---
Colors颜色
-		--
Operating Temperature工作温度-20℃~+70℃--
Storage Temperature  存储温度-30℃~+75℃--
环保要求ROHS--



Absolute Maximum Ratings of 6.75 Inch Bar TFT Lcd Display

W067B30H1MI

ParameterSymbolMinMaxUnitNote
Power Supply voltage 1VCl~GND-0.3+6.6V

Power Supply voltage 2|OVCC~GND-0.3+3.3V

Logic Input Voltage RangeVIN0.3IOVCC+0.3V

Logic Output Voltage RangeVo-0.3IOVCC+0.3V

Operating temperatureTopr-20+70℃

Storage temperatureTstg-30+75℃

*The absolute maximum rating values of this product are not allowed to be exceeded
at any times.Should amodule be used with any of the absolute maximum ratings
exceeded,the characteristics of the  module  may  not  be  recovered,or  in an extreme
case,the  module  may  be  permanently  destroyed.



DC Electrical Characteristics of 6.75 Inch Bar TFT Lcd Display

W067B30H1MI

Driving TFT LCD Panel

AGND=GND =0V,Ta =25℃
ParameterSymbolMinTypMaxUnit
Supply voltage for analog circuitVCI2.53.33.6V
Supply voltage for logic circuitIOVCC1.651.83.3V
Input voltage 'H'levelVIH0.7*|OVCC一IOVCCV
Input voltage 'L'levelVILGND一0.3*IOVCCV
Output voltage 'H'levelVoH0.8*IOVCCI一IOVCCV
Output voltage 'L'levelVoLGND一0.2*IOVCCV
Backlight  Characteristics

Ta =25℃
ltemSymbolMinTypMaxUnitCondition
Forward voltageVf5.46.46.8VIf=180
mA
Luminance(module)LV500
--cd/m²
Number of LED
12PCS


Interface Signal of 6.75 Inch Bar TFT Lcd Display

W067B30H1MI

Pin No.SymbolDescription
1GNDPower ground
2VCIPower supply for the analog power
3VCIPower supply for the analog power
3VCIPower supply for the analog power
5GNDPower ground
6RESETReset signal(low active)
7TEServes TE(Tearing Effect)pin on MPU interface.
8GNDPower ground
9GNDPower ground
10D3NMIPI-DSI data ane 3 negtive input pin
11D3PMIPI-DSI data lane 3 posivtve input pin
12GNDPower ground
13D2NMIPI-DSI data lane 2 negtive input pin
14D2PMIPI-DSI data ane 2 posivtve input pin
15GNDPower ground
16CLKNMIPI-DSI data lane negtive input pin
17CLKPMIPI-DSI data ane posivtve input pin
18GNDPower ground
19D1NMIPI-DSI data lane 1 negtive input pin
20D1PMIPI-DSI data ane 1 posivtve input pin
21GNDPower ground
22DONMIPI-DSI data ane O negtive input pin
23DOPMIPI-DSI data ane O posivtve input pin
24GNDPower ground
25LCD_ID1FPC预留分压电阻1
26LCD_ID2F PC预留分压电阻2
27LEDKLED backlight cathod
28LEDKLED backlight cathod
29LEDALED backlight anode
30LEDALED backlight anode


bar tft

tft bar

Electro-Optical Characteristics of 6.75 Inch Bar TFT Lcd Display

W067B30H1MI

ItemSymbolConditionMinTypMaxUnitNote
Transmittance
(w/o  polarizer)		T%θ=0°
Ta=25℃		3.64.25-%1
Contrast ratioCr10001500--3
Response timeTon+Toff-2535ms4
Surface LuminanceLV500---cd/
m²		2
Viewing angle rangeV
er		Ox+Center
CR>10		7080
deg5
x-7080-deg
OY+7080
deg
γ.7080-deg
CIE(x,y)
chromaticity		RedXViewing
normal
angle
Qx=θy=0°
Ta=25℃		-0.03
+0.03-6
y
-
GreenX
-
y
-
BlueX
-
y
-
WhiteX
-
y
-

bar type tft
