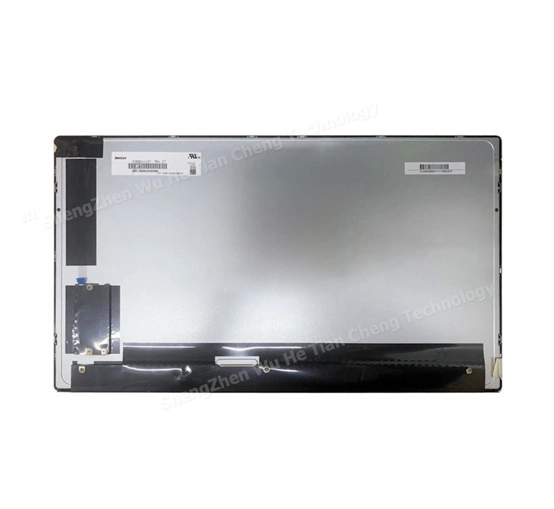

G200HJJ-L01 19.5 Inch INNOLUX LCD Panel

Name: G200HJJ-L01 19.5 Inch INNOLUX LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Innolux 15 inch IPS TFT LCD Panel G156HCE-L01 with 1920(RGB)x1080 FHD resolution, brightness 450 cd/m², LVDS 40pin. This lcd display is working temperature is -30 ~ +85 (°C) and its storage temperature is -40 ~ +90 (°C). Based on its white LED backlight.This model is recommended for industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G200HJJ-L01 19.5 Inch INNOLUX LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
19.5	1920*1080	G200HJJ-L01	45926312.47	434.88*238.68	IPS	LVDS	450	-0~50°C

General Specifications of G200HJJ-L01 19.5 Inch INNOLUX LCD Panel

Manufacturer	INNOLUX
Model Name	G156HCE-L01
Screen Size	15 inch
Pixel Number	1024(RGB)×768 , XGA
Active Area(mm)	344.16×193.59 (H×V)
Outline(mm）	363.8×215.98×9.6 (H×V×D)
Pixel Pitch(mm)	0.297 x 0.297 (H×V)
Treatment	Hard Coating (3H), Anti-Glare
Luminance	450 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85
Response time	13/12 (Typ.)(Tr/Td) ms
Display Mode	NPVA , Normally black, Transmissive
Color Depth	262K/16.7M , 73% NTSC
Backlight	WLED, 50K hours, with LED Driver
Net Weight	1.00Kgs
Touchscreen	without
Signal Type/interface Type	LVDS (2 ch, 8-bit) , 40 pins
Voltage Supply	+3.3V
Max. Ratings	Storage Temp.: -40 ~ +90 (°C)
Max. Ratings	Operating Temp.: -30 ~ +85 (°C)
Package	Innolux Original package;
Package	18 pcs/ctn
