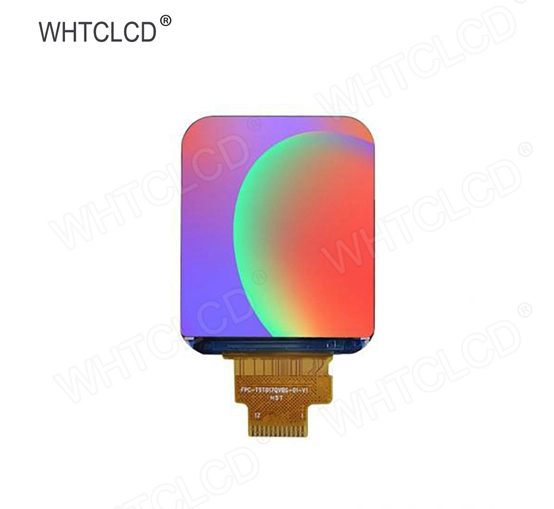

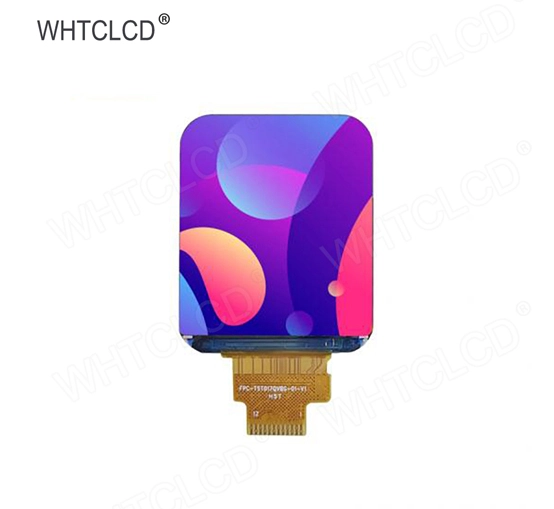

W0169P12S1SI 1.69 Inch IPS TFT LCD

Name: W0169P12S1SI 1.69 Inch IPS TFT LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

1.69 Inch IPS TFT LCD is a transmission type color active matrix liquid crystal display (LCD), using amorphous thin film transistor (TFT) as a switching device. This product is composed of TFTLCD panel, driver IC, FPC, PCB board, backlight and capacitive touch screen. The active display area is a 27.97*32.63 measurement on the diagonal, with an active resolution of 240*280 This 1.69 inch LCD can be used to display pictures and text, and it's with standard Capacitive touch screen.

Products

Parameters of 1.69 Inch IPS TFT LCD

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Brightness(nits)	OP(℃)
1.69	240*280	W0169P12S1SI	30.0737.431.9	27.97*32.63	IPS	SPI	300	-20~70°C

General Specifications of 1.69 Inch IPS TFT LCD

W0169P12S1SI

Feature	Specifications	Unit
Size	1.69	inch
Technology Type	a-si TFT
Resolution	240(RGB)x280
Pixel pitch	0.03885(H)x0.11655(V)	mm
Pixel arrangement	RGB-stripe
Color Depth	262K
Display Mode	TFT,Transmissive,Normally black,IPS
Driver IC	ST7789V
Surface Treatment	`
Viewing Direction	ALL
Gray Viewing Direction	Free
LCM (W x H x D) (mm)	30.07(W) x 37.43(H) x1.88(D)	mm
Active Area(mm)	27.97 (W) x 32.63 (H)	mm
Touch Panel	Support CTP
Brightness	700	nits
Weight (g)	12	g
Interface	SPI 4 Wire ; FPC 12pin
Operation Temperature	-20~70	℃
Storage Temperature	-30~80	℃
Module lifetime(Hours)	50,000-100,000	℃

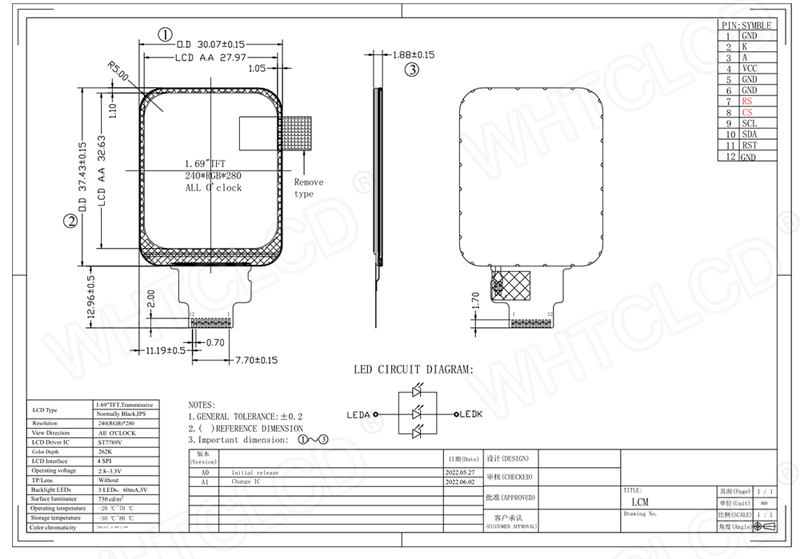

Structural Size of 1.69 Inch IPS TFT LCD

W0169P12S1SI

1.69 Inch IPS TFT LCD
