W101P40H1LN-J05B0 10.1 Inch TN TFT LCD

Name: W101P40H1LN-J05B0 10.1 Inch TN TFT LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

10.1 Inch TN TFT LCD is a transmissive type color active matrix liquid crystal display this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 222.72*125.28 and the native resolution is 1024*800 and can display up to 262K/16.7M colors, Applications: wire tester, sphygmomanometer, ECG machine, Robots,Handheld devices, Automotive instrument, recorder and industrial display.

Products

Parameters of 10.1 Inch TN TFT LCD

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Brightness(nits)	OP(℃)
10. 1	1024*600	W101P40H1LN-J05B0	2351435.1	222.72*125.28	TN	LVDS	300~800	-20~70°C

General Specifications of 10.1 Inch TN TFT LCD

W101P40H1LN-J05B0

Feature	Specifications	Unit
Size	10.1	inch
Technology Type	a-si TFT
Resolution	1024(RGB)x600
Pixel pitch	~	mm
Pixel arrangement	RGB-stripe
Color Depth	262K/16.7M
Display Mode	TFT,Transmissive,Normally black
Driver IC	~
Surface Treatment	`
Viewing Direction	IPS
Gray Viewing Direction	`
LCM (W x H x D) (mm)	235(W)x143(H)x5(T)	mm
Active Area(mm)	222.72 (W) x 125.28(H)	mm
Touch Panel	Support CTP/RTP
Brightness	300~1000	nits
Weight (g)	`	g
Interface	LVDS FPC 40pin
Operation Temperature	-20~70	℃
Storage Temperature	-30~85	℃
Module lifetime(Hours)	50,000-100,000	℃

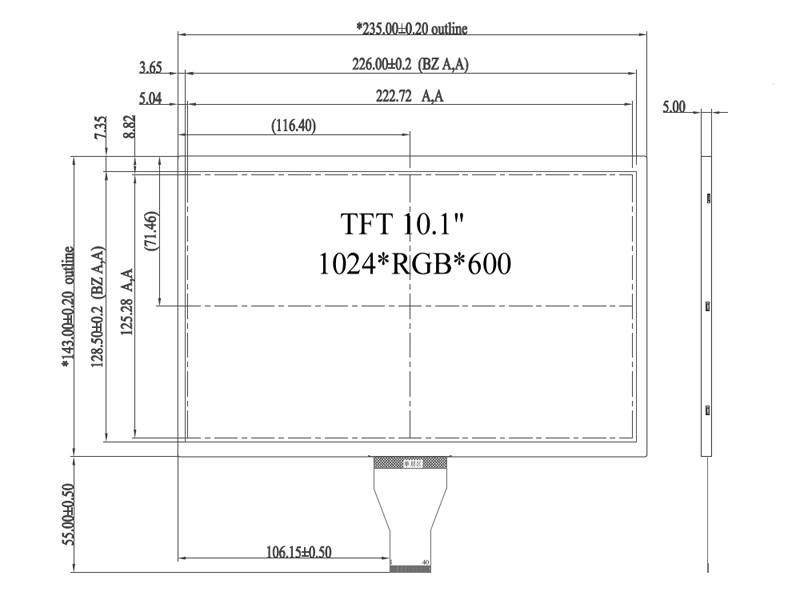

Structural Size of 10.1 Inch TN TFT LCD

W101P40H1LN-J05B0

10.1 Inch TN TFT LCD
