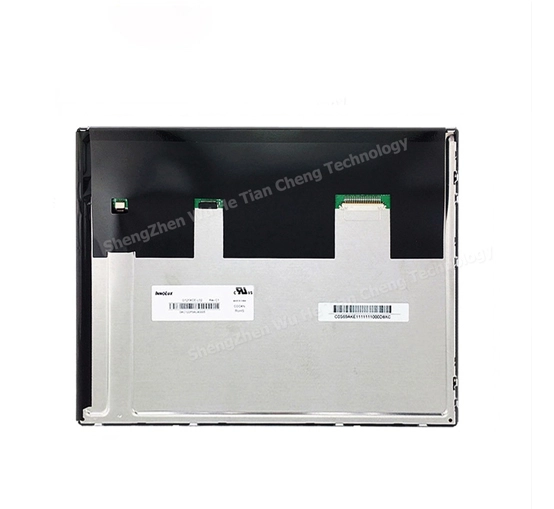

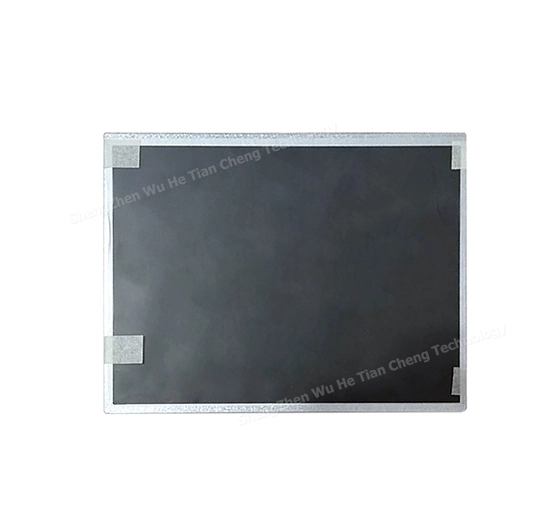

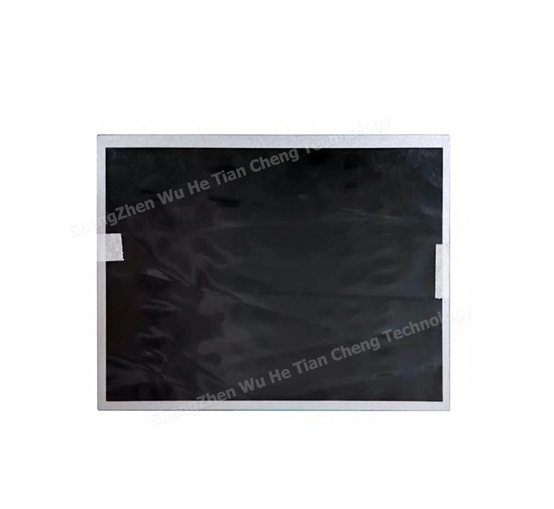

G121XCE-L01 12.1 Inch INNOLUX LCD Panel

Name: G121XCE-L01 12.1 Inch INNOLUX LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Innolux 12.1 inch TFT LCD IPS Panel G121ICE-L01 with 1024(RGB)x768 XGA resolution, brightness 600 cd/m², LVDS 20pins And Controller board. This lcd display is working temperature is -30 ~ +85 (°C) and its storage temperature is -40 ~ +90 (°C). Based on its white LED backlight. This model is recommended for industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G121XCE-L01 12.1 Inch INNOLUX LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
12.1	1024*768	G121XCE-L01	260.52048.4	245.76*184.32	IPS	LVDS	600	-30~85°C

General Specifications of G121XCE-L01 12.1 Inch INNOLUX LCD Panel

G121XCE-L01

Manufacturer	Innolux
Model Name	G121XCE-L01
Screen Size	12.1 inch
Pixel Number	1024(RGB)×768 , XGA
Active Area(mm)	245.76 x 184.32 (HxV)
Outline(mm）	260.5(W) x 204.0(V) x 8.4(D)
Bezel Area(mm)	249.0 x 187.5 (HxV)
Treatment	Hard coating (3H) , Anti-Glare
Luminance	600 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89(CR≥10) Left / Right / Up / Down
Response	13/12 (Typ.)(Tr+Td) ms
Work Mode	AAS , Normally black , Transmissive
Color Depth	262K/16.2M , 72% NTSC
Backlight	WLED , 50K hours , With LED Driver
Net Weight	510g
operating frequency	60Hz
Touchscreen	Without, RTP+CTP for options
Signal Type/interface Type	LVDS (1 ch, 6/8-bit) , 20 pins
Voltage Supply	+3.3 V (Typ.)
Temperature	Storage Temp.: -40 ~ +90 (°C)
Temperature	Operating Temp.: -30 ~ +85 (°C)
Package	Innolux original package;
Package	18 pcs/ctn
