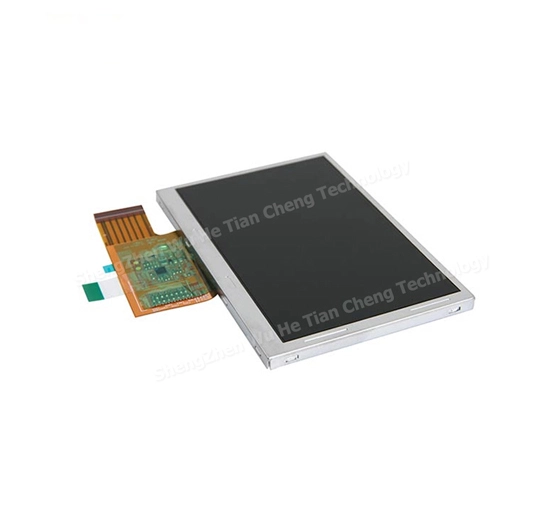

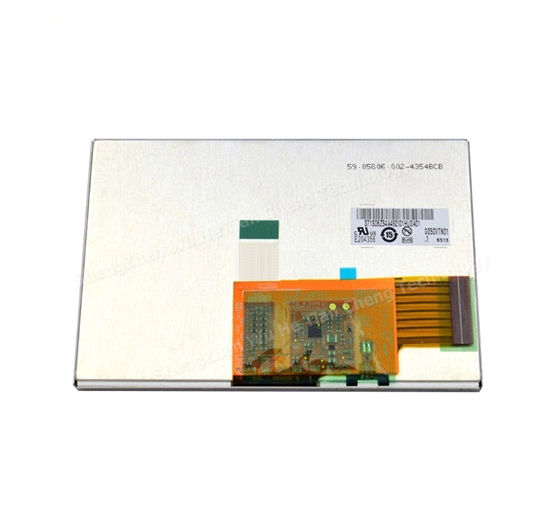

G050VTN01.1 5.0 AUO LCD Panel

Name: G050VTN01.1 5.0 AUO LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

AUO 4.3 inch tft lcd panel G050VTN01.1 with 800(RGB)x480 WVGA resolution, brightness 1000 cd/m², RGB TTL 40pin. This lcd display's working temperature is -20 ~ +70 (°C) and it's storage temperature is -30 ~ +80 (°C). Based on it's white LED backlight. This model is recommended for industrial use and Outdoor Highlight.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G050VTN01.1 5.0 AUO LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
5	800*480	G050VTN01.1	119.3379.188	108*64.8	TN	RGB	1000	-20~70°C

General Specifications of G050VTN01.1 5.0 AUO LCD Panel

Manufacturer	AUO
Model Name	G050VTN01.1
Screen Size	5 inch
Pixel Number	800(RGB)×480 , WVGA
Active Area(mm)	108 x 64.8 (H×V)
Outline(mm）	119.33 × 79.18 × 8 (H×V×D)
Bezel Area(mm)	111.25 × 68.7 (H×V)
Treatment	Anti-glare , Hard coating (3H)
Luminance	1000 cd/m² (Typ.)
Contrast Ratio	600 : 1 (Typ.) (TM)
Viewing Angle	75/75/65/75 (CR≥10) Left / Right/UP /Down
Response	20 (Typ.)(Tr/Td) ms
Work Mode	TN, Normally white, Transmissive
Color Depth	16.2M , 50% (CIE1931)
Backlight	WLED , 40K hours , NO Driver
Net Weight	84.0g (Typ.)
Touchscreen	without
Signal Type/interface Type	TTL (1 ch, 8-bit) , FPC , 40 pins
Voltage Supply	+3.3 V (Typ./Max.)
Max. Ratings	Storage Temp.: -30 ~ +80 (°C)
Max. Ratings	Operating Temp.: -20 ~ +70 (°C)
Package	AUO Original package;
	90 pcs/ carton;
	weight : 11.0Kgs;
	size : 520(L) x 340(W) x 250(H) mm
