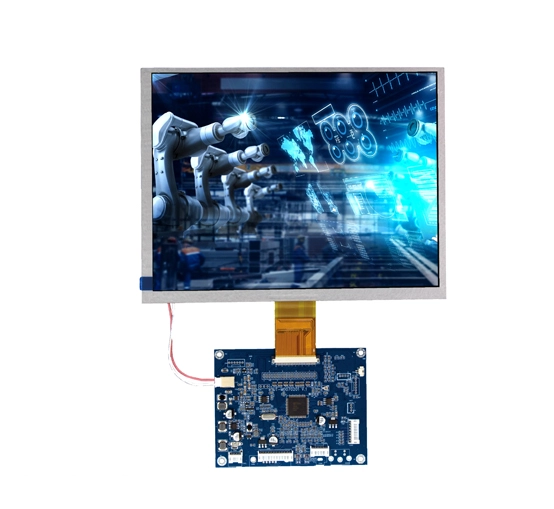

UT-MD070201 V.1 RGB TTL LCD Controller Board

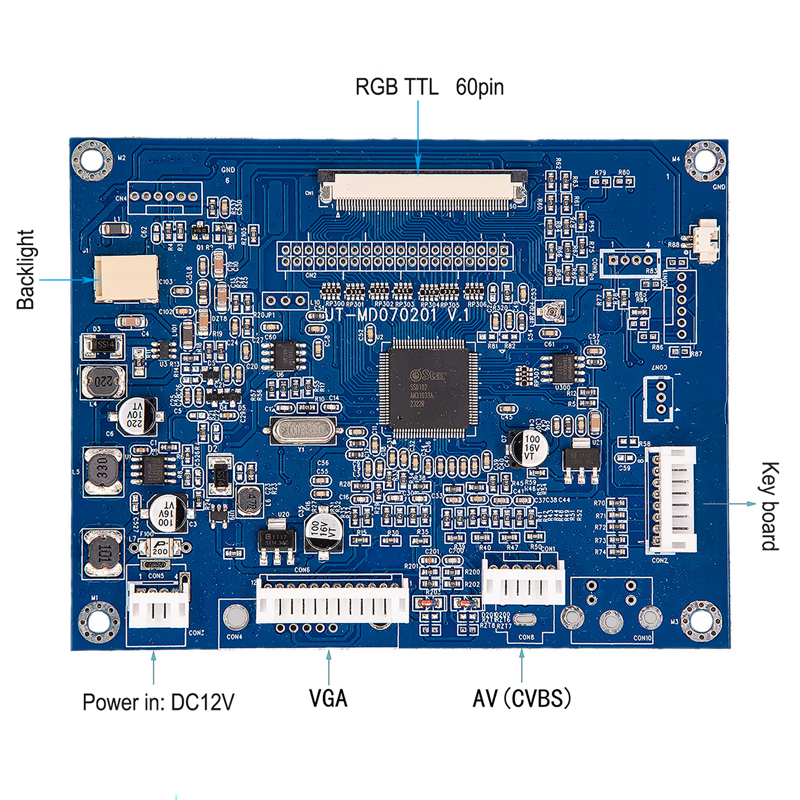

Parameters of UT-MD070201 V.1 RGB TTL LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
16	UT-MD070201 V.1	AV / VGA Signal input; Supports multiple resolutions, Supports 6.2 / 7 / 8 /8.4 / 9 / 10.4 inch LCD screen	RGB TTL 60pin	NO	DC12V

General Specifications of UT-MD070201 V.1 RGB TTL LCD Controller Board

Model: UT - MD07080 V.3

1 VGA, CVBS1, CVBS2 (optional) video signal input

2 Signal output supports RGB60pin interface LCD screen

3 Power input: DC+12V

4 Multi functional OSD Operations

5 With remote control function(optional)

Model	UT- MD070201 V.1
Signal source	VGA AV(cvbs）
output interface	RGB_60pin
MAX Resolution support	800*600（60~75Hz）
Power input	DC +12V
CVBS	1.0Vp-p75Ω
Function	Multi functional OSD operation with remote control function (optional)
Operation Temperature	-10℃～+60℃
Working humidity	90%RH
Storage temperature	-20℃～+70℃
Save humidity	90%RH
screen size	6.2 inch, 7 inch, 8 inch, 8.4 inch, 9 inch, 10.4 inch
A sxreen that Can be driven	7 inch	A070VW04 V0	800*480	6.2 inch	HSD062IDW1	800*480
		HSD070IDW1-A00	800*480
		HSD070IDE1-A20	800*480
		CLAA070MA0ACW	800*600
	8 inch	A080VW01	800*600	8.4 inch	HSD084IDW	800*600
		HSD080IDWI-A00	800*480
	9 inch	HSD090IDW1	800*480
	10.4 inch	LSA40AT9001	800*600
		A104SN03	800*600

Structural Size of UT-MD070201 V.1 RGB TTL LCD Controller Board

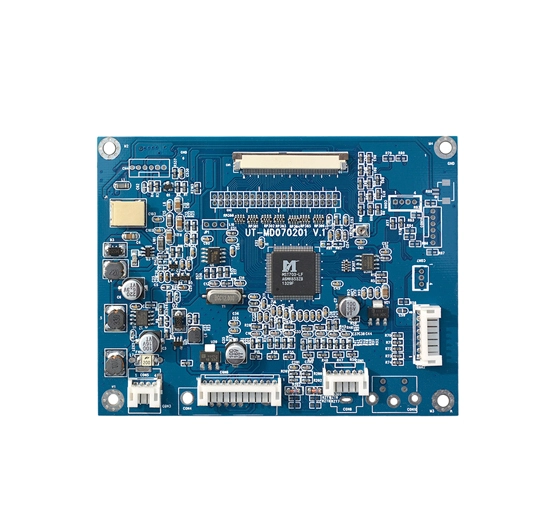

UT-MD070201 V.1 RGB TTL LCD Controller Board
