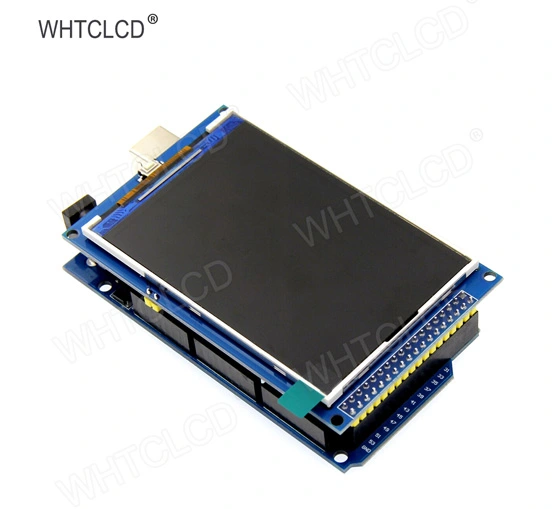

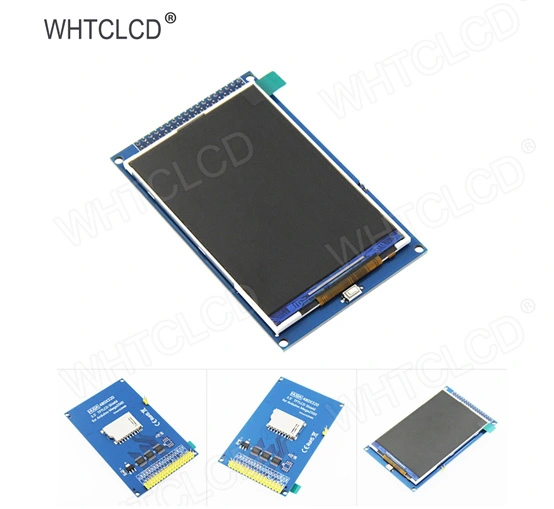

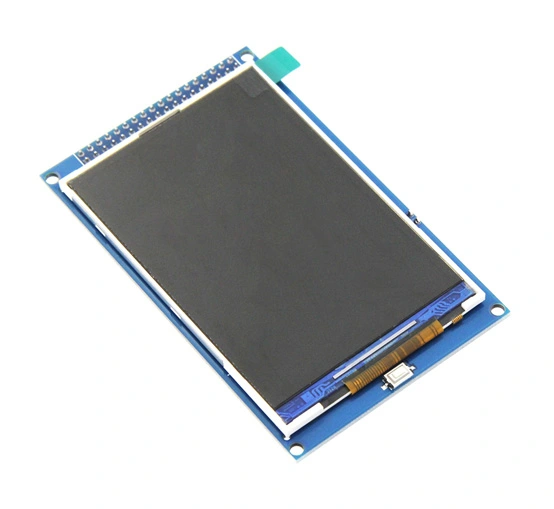

MAR3501 3.5 Inch Arduino LCD

Name: MAR3501 3.5 Inch Arduino LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Supports development boards such as Arduino UNO and Mega2560 for plug-in use without wiring. 480X320 resolution, clear display, support for touch function. Support 16-bit RGB 65K color display, display rich colors. 8-bit parallel bus, faster than serial SPI refresh. On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage. Easy to expand the experiment with SD card slot. Provides an Arduino library with a rich sample program. Military-grade process standards, long-term stable work. Provide underlying driver technical support.

Products

Parameters of 3.5 Inch Arduino LCD

Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
3.5	320*480	MAR3501	TN	8-bit parallel	85.4955.636	48.96*73.44	NC	RTP	5V/3.3V	-20~60°C

Name	Parameter
Display Color	RGB 65K color
SKU	MAR3501（have touch screen）/MAR3502(have no touch screen)
Screen Size	3.5(inch)
Type	TFT
Driver IC	ILI9486/ST7796
Resolution	480*320 (Pixel)
Module Interface	8-bit parallel interface
Active Area	73.44*48.96(mm)
Module PCB Size	85.49*55.63(mm)
Operating Temperature	-20℃~70℃
Storage Temperature	-40℃~70℃
Operating Voltage	5V/3.3V
Power Consumption	TBD
Product Weight(Package containing)	44g(have touch screen)，55g(have no touch screen)

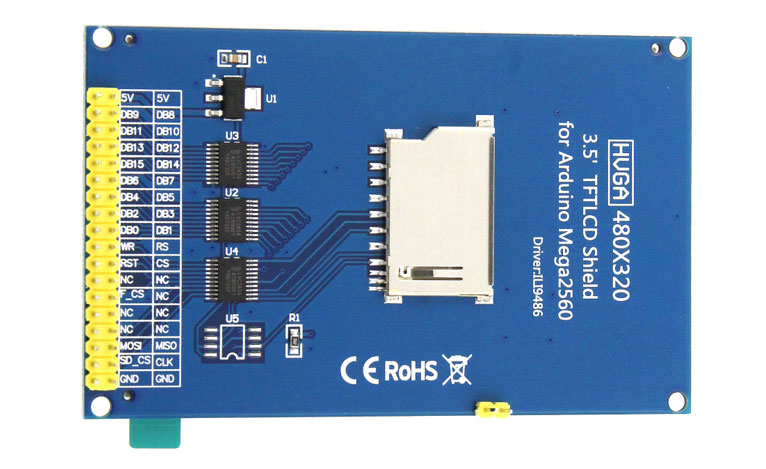

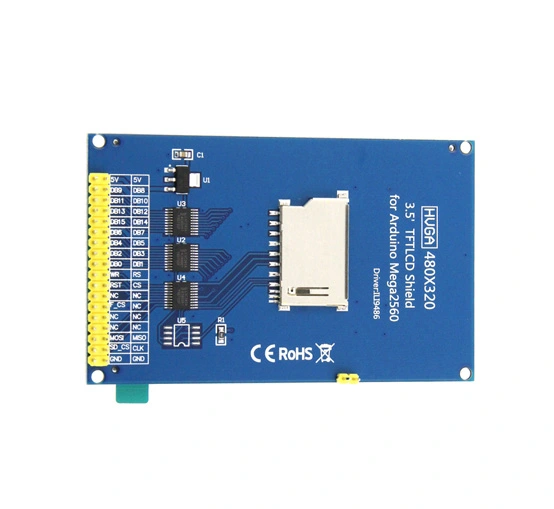

Hardware Description of 3.5 Inch Arduino LCD

stm32f767 development board

Number	Pin Label	Pin Description
1	LCD_RST	LCD bus reset signal, low level reset
2	LCD_CS	LCD bus chip select signal, low level enable
3	LCD_RS	LCD bus command/data selection signal, low level: command, high level: data
4	LCD_WR	LCD bus write signal
5	LCD_RD	LCD bus read signal
6	GND	Power ground
7	5V	5V power input
8	3V3	3.3V power input, this pin can be disconnected
9	LCD_D0	LCD 8-bit data Bit0
10	LCD_D1	LCD 8-bit data Bit1
11	LCD_D2	LCD 8-bit data Bit2
12	LCD_D3	LCD 8-bit data Bit3
13	LCD_D4	LCD 8-bit data Bit4
14	LCD_D5	LCD 8-bit data Bit5
15	LCD_D6	LCD 8-bit data Bit6
16	LCD_D7	LCD 8-bit data Bit7
17	SD_SS	SD card SPI bus chip select signal, low level enable
18	SD_DI	SD card SPI bus MOSI signal
19	SD_DO	SD card SPI bus MISO signal
20	SD_SCK	SD card SPI bus clock signal

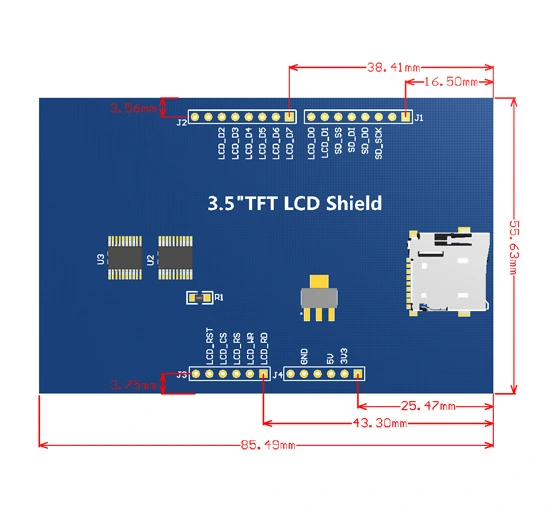

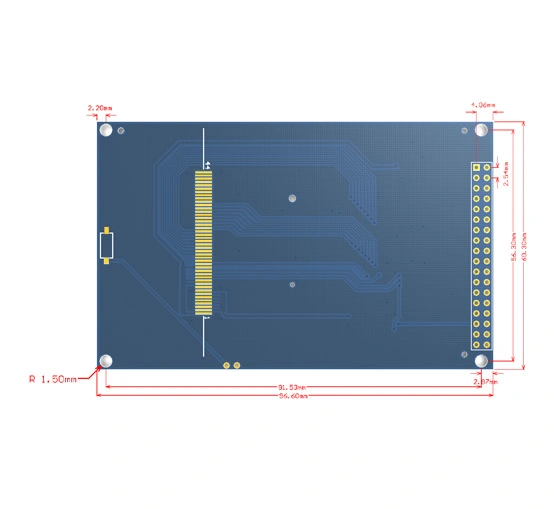

Product Size of 3.5 Inch Arduino LCD

stm32f767zi mbed
