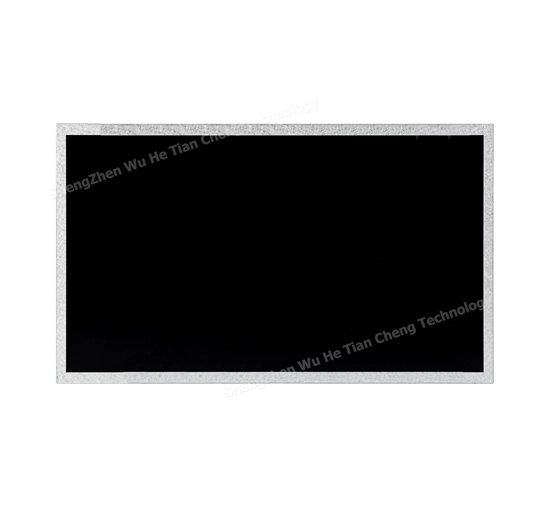

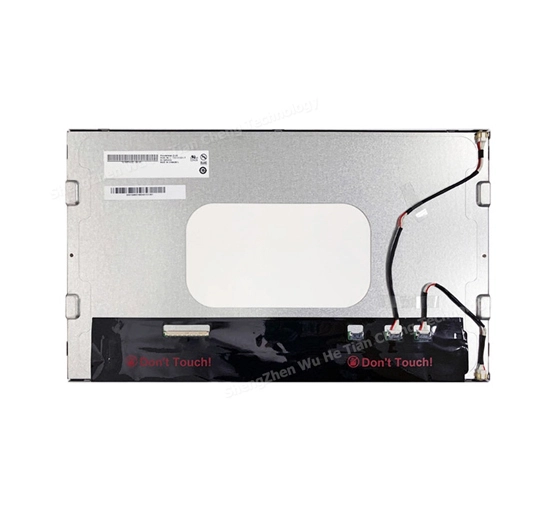

G156HAN04.0 15.6 AUO LCD Panel

Name: G156HAN04.0 15.6 AUO LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

AUO 15.6 inch tft lcd ips panel G156HAN04.0 with 1920(RGB)x1080 Full HD resolution , brightness 1000 cd/m². This lcd display's working temperature is -30 ~ +85 (°C) and it's storage temperature is -30 ~ +85 (°C). Based on it's white LED backlight. This model is recommended for industrial use and Outdoor Highlight.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G156HAN04.0 15.6 AUO LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
15.6	1920*1080	G156HAN04.0	350.66216.153.2	344.16*193.59	IPS	LVDS	1000	-30~85°C

General Specifications of G156HAN04.0 15.6 AUO LCD Panel

Manufacturer	AUO
Model Name	G156HAN04.0
Screen Size	15.6 inch
Pixel Number	1920(RGB)×1080 , FHD
Active Area(mm)	344.16 × 193.59 (H×V)
Outline(mm）	350.66 × 216.15 × 3.2 (H×V)
Pixel pitch(mm)	0.17925 x 0.17925 mm
Treatment	Anti-glare, 3H
Luminance	1000 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89(CR≥10)
Viewing Angle	Left/Right/UP/Down
Response	25 (Typ.)(Tr+Td) ms
Work Mode	AHVA , Normally black , Transmissive
Color Depth	16.7M , 72% NTSC
Backlight	WLED , 50K hours , with LED Driver
Net Weight	850g (Typ.)
Touchscreen	without
Signal Type/interface Type	LVDS (2 ch, 8-bit) , 30 pins
Voltage Supply	+3.3 V (Typ./Max.)
Max. Ratings	Storage Temp.: -30 ~ +85 (°C)
Max. Ratings	Operating Temp.: -30 ~ +85 (°C)
Package	AUO Original package;
	16 pcs/ carton;
	weight : 13.2Kgs;
	size : 450(L) x 375(W) x 319(H) mm
