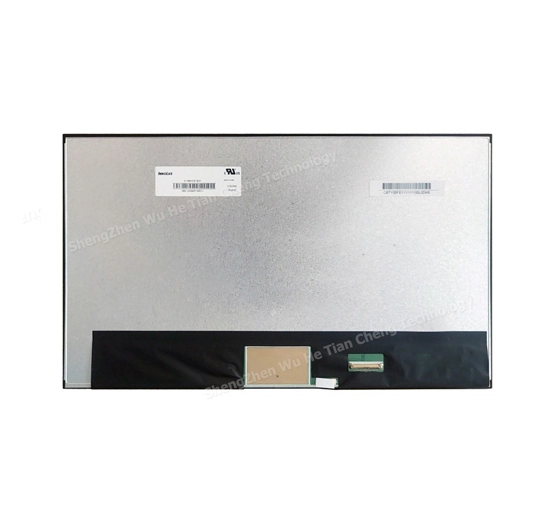

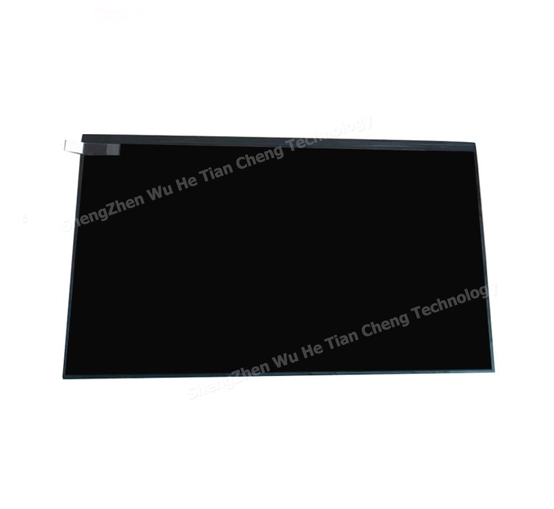

G156HCE-L01 15.6 Inch INNOLUX LCD Panel

Name: G156HCE-L01 15.6 Inch INNOLUX LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Innolux 15.6 inch IPS TFT LCD Panel G156HCE-E01 with 1920(RGB)x1080 FHD resolution, brightness 450 cd/m², EDP 40pin. This lcd display is working temperature is 0 ~ +60 (°C) and its storage temperature is -20 ~ +70 (°C). Based on its white LED backlight. This model is recommended for industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G156HCE-L01 15.6 Inch INNOLUX LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
15.6	1920*1080	G156HCE-L01	363.8215.989.6	344.16*193.59	IPS	LVDS	450	-30~85°C

General Specifications of G156HCE-L01 15.6 Inch INNOLUX LCD Panel

G156HCE-L01

Manufacturer	INNOLUX
Model Name	G156HCE-L01
Screen Size	15.6 inch
Pixel Number	1920(RGB)×1080 , FHD
Active Area(mm)	344.16 x 193.59 (H×V)
Outline(mm）	352.14 x 209.18 x 6.5 (H×V×D)
Pixel Pitch(mm)	0.17925 x 0.17925 (H×V)
Treatment	Hard coating (3H), Anti-Glare
Luminance	450 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89(CR≥10) Left / Right/UP /Down
Response time	14/11 (Typ.)(Tr/Td) ms
Display Mode	AAS, Normallyblack, Transmissive
Color Depth	16.7M, 72% NTSC
Backlight	WLED, 50K hours, with LED Driver
Net Weight	550g
Touchscreen	without
Signal Type/interface Type	eDP (2 Lanes), eDP1.2 , 40 pins
Voltage Supply	+3.3V
Max. Ratings	Storage Temp.: -20 ~ +70 (°C)
Max. Ratings	Operating Temp.: 0 ~ +60 (°C)
Package	Innolux Original package;
	18 pcs/ctn;
	weight: 16.3Kgs;
	size : 490 (L)mm x 350 (W)mm x 320 (H)mm
